Operating instructions
Renkcast TwinX (transmitter only)
Item no. 2384596
Intended use
The transmitter is used to wirelessly transmit the screen content (incl. audio) from the connected
device to the receiver. All devices (computers, mobile devices) with a USB Type-C
DisplayPort support are supported.
The transmitter is powered by the connected device via the USB Type-C
The product is intended for indoor use only and must not be used outdoors. Contact with
moisture, for example, in bathrooms, must be avoided.
For safety and approval purposes, do not rebuild and/or modify this product. Using the
product for purposes other than those described above may damage the product. In addition,
improper use can cause hazards such as short circuit, fire or electric shock. Read the operating
instructions carefully and store them in a safe place. Only make this product available to third
parties together with its operating instructions.
This product complies with statutory, national and European regulations. All company and
product names contained herein are trademarks of their respective owners. All rights reserved.
HDMI is a registered trademark of HDMI Licensing L.L.C.
TM
Android is a registered trademark of Google LLC.
TM
Delivery content
• Transmitter
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the QR code
shown. Follow the instructions on the website.
Description of symbols
The symbol with the lightning in the triangle is used if there is a risk to your health,
e.g., due to an electric shock.
The symbol with an exclamation mark in a triangle is used to highlight important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and tips on how to use the product.
Safety information
Read the operating instructions carefully and observe in particular the safety
instructions. If you do not follow the safety information and information on
proper handling in these operating instructions, we will assume no liability for
any resulting personal injury or damage to property. Such cases will invalidate
the warranty/guarantee.
• This product is not a toy. Keep it out of the reach of children and pets. An electric
shock can be life threatening!
• Do not leave packaging material lying around carelessly. It may become a
dangerous plaything for children.
• The product is only suitable for dry, enclosed indoor areas. It must be protected
from moisture and dampness; never touch it with wet hands!
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, vapours and solvents.
• Handle the product carefully. Jolts, impacts or a fall even from a low height may
damage the product.
• If you have any questions that are not answered in the operating instructions,
please contact our technical department or third-party specialist.

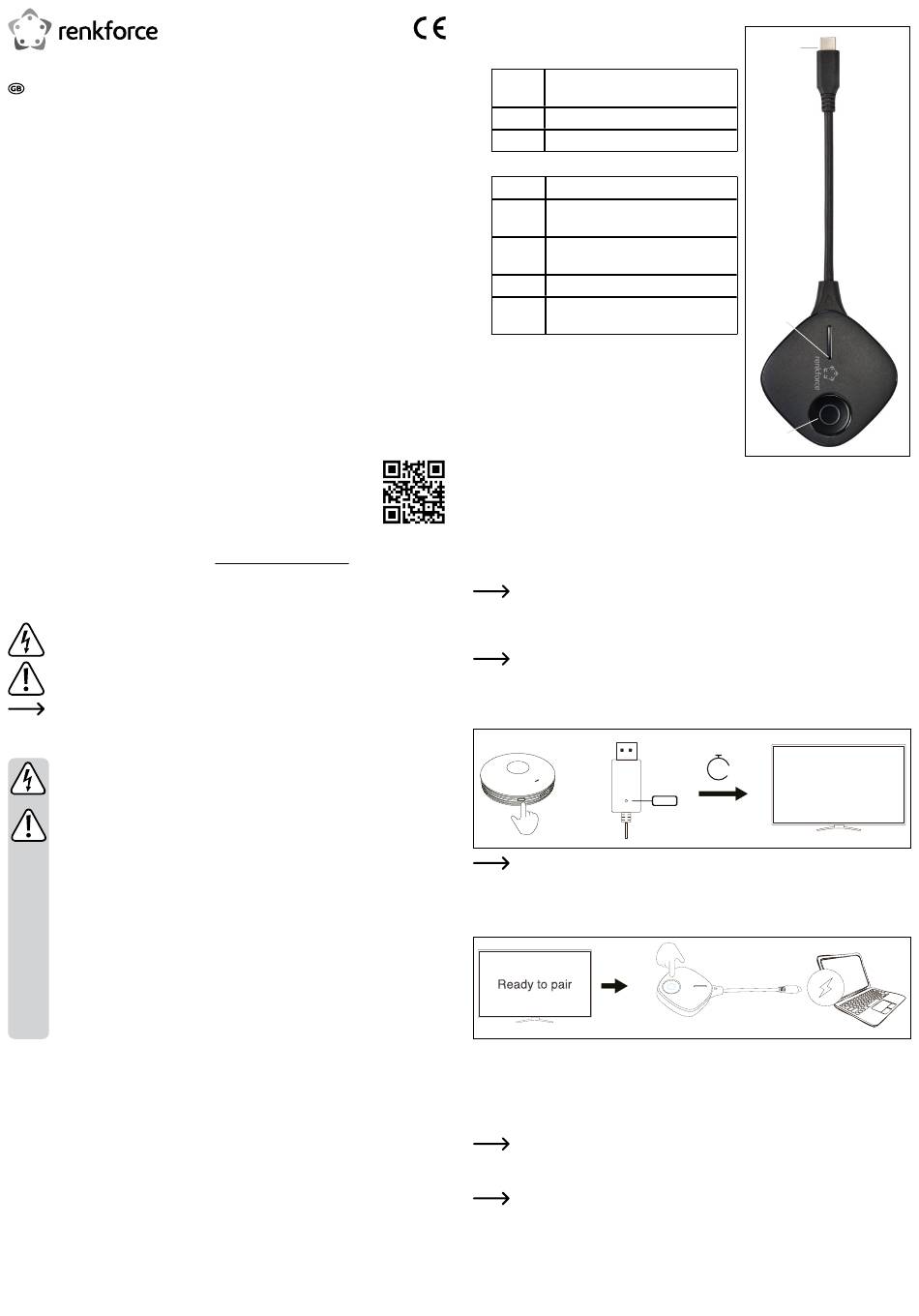

Product overview
A USB Type-C
B Status LED, white, power lights
Status
LED
ON
OFF
C Button incl. status LED white
Button
port with
TM ON
connector.
TM
Flashing
5 sec.
20 sec.
How to connect
• Connect the transmitter's USB Type-C
the device (laptop, Mac, tablet, smartphone, etc.) from which you want to mirror the screen
content to your TV.
• Wait a few seconds for the launch to complete. If the transmitter is not yet connected to the
receiver, the status LED (C) will flashing, after connection and change to light up solid.
Pairing the transmitter with a receiver
a) Putting the receiver into pairing mode
• Press the corresponding button on your receiver for approx. 2 seconds.
• The screen will indicate when the receiver is in pairing mode. Then release the button.
b) Pairing the transmitter with the receiver
• When the receiver is in pairing mode, press and hold the button on the transmitter (C) for 5
seconds.
• When the status LED (C) flashes rapidly, the pairing process has started.
• When the status LED (C) lights off 1 - 2 seconds, the status LED (C) will flash again then
lights on solid, pairing process completed.
connector with DisplayPort support
TM
Description
Power on
Power off
Description
The transmitter is connected to the
receiver and doing mirroring screen.
The transmitter is trying to connect to
the receiver
Starts the pairing process
Resets the transmitter to factory
settings
connector (A) to an available USB Type-C
TM
Please note! It is mandatory that the USB Type-C
image output via DisplayPort, otherwise mirroring via the transmitter will not work.
The transmitter can be paired and used with any EZCast/Renkcast receiver
supporting wireless display.
Refer to the instruction manual of your receiver.
OR
The latest firmware should be installed on your receiver.
The top right of the screen displays the current connections between your device
(being mirrored from), the receiver, and the Internet.
After pairing, the "X" disappears upon first connection and a blue icon is displayed.
Up to 8 transmitters can be paired with the receiver at the same time. However, only
one can be used for mirroring at a time.
A
B
C
port on
TM
port on your device supports
TM
2
secs
Release the button to pair with EZCast
