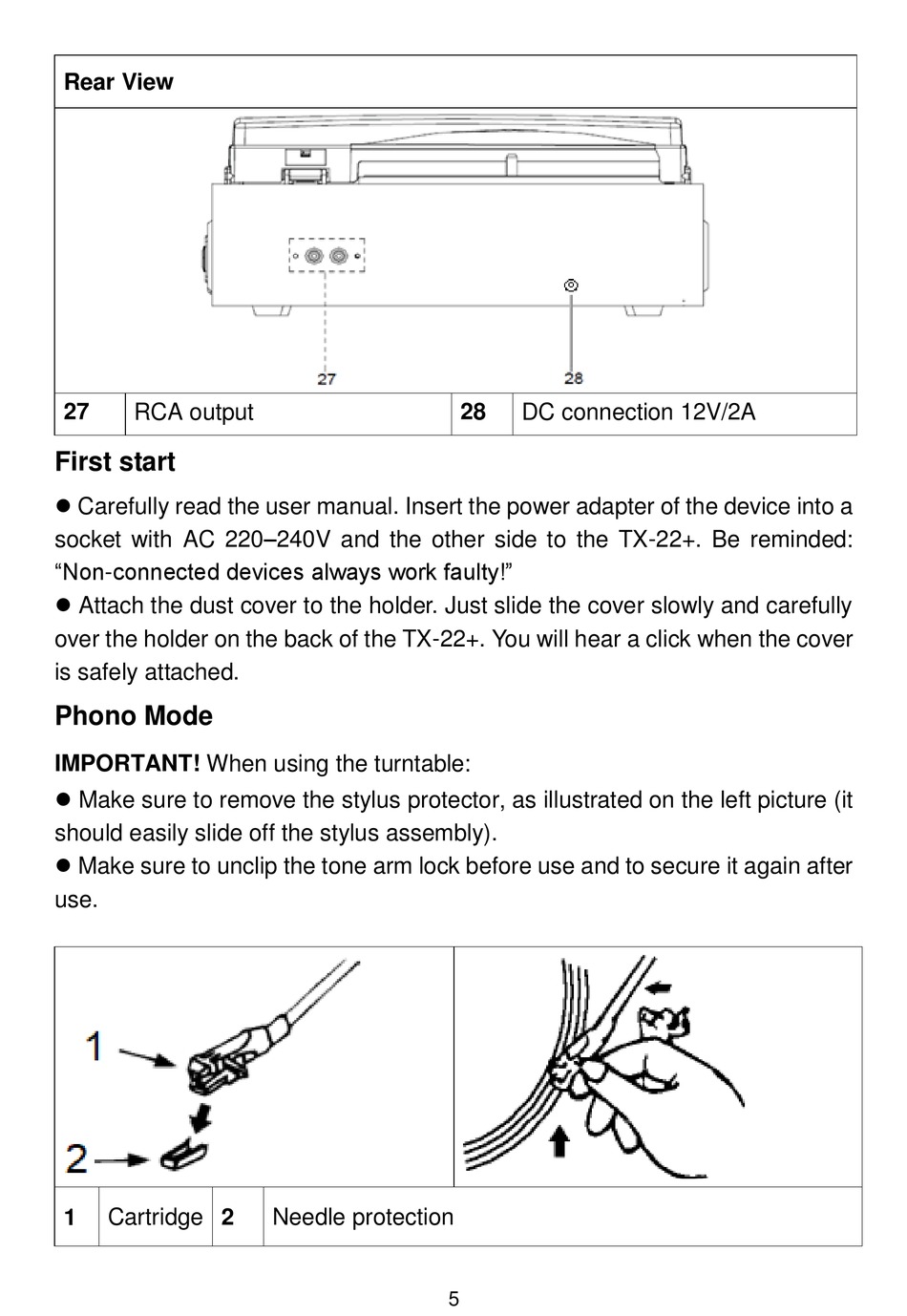

Rear View
27 RCA output
First start
 Carefully read the user manual. Insert the power adapter of the device into a
socket with AC 220–240V and the other side to the TX-22+. Be reminded:
"Non-connected devices always work faulty!"
 Attach the dust cover to the holder. Just slide the cover slowly and carefully
over the holder on the back of the TX-22+. You will hear a click when the cover
is safely attached.
Phono Mode
IMPORTANT! When using the turntable:
 Make sure to remove the stylus protector, as illustrated on the left picture (it
should easily slide off the stylus assembly).
 Make sure to unclip the tone arm lock before use and to secure it again after
use.
1 Cartridge 2 Needle protection
28 DC connection 12V/2A
5
