ASSEMBLY EXAMPLE

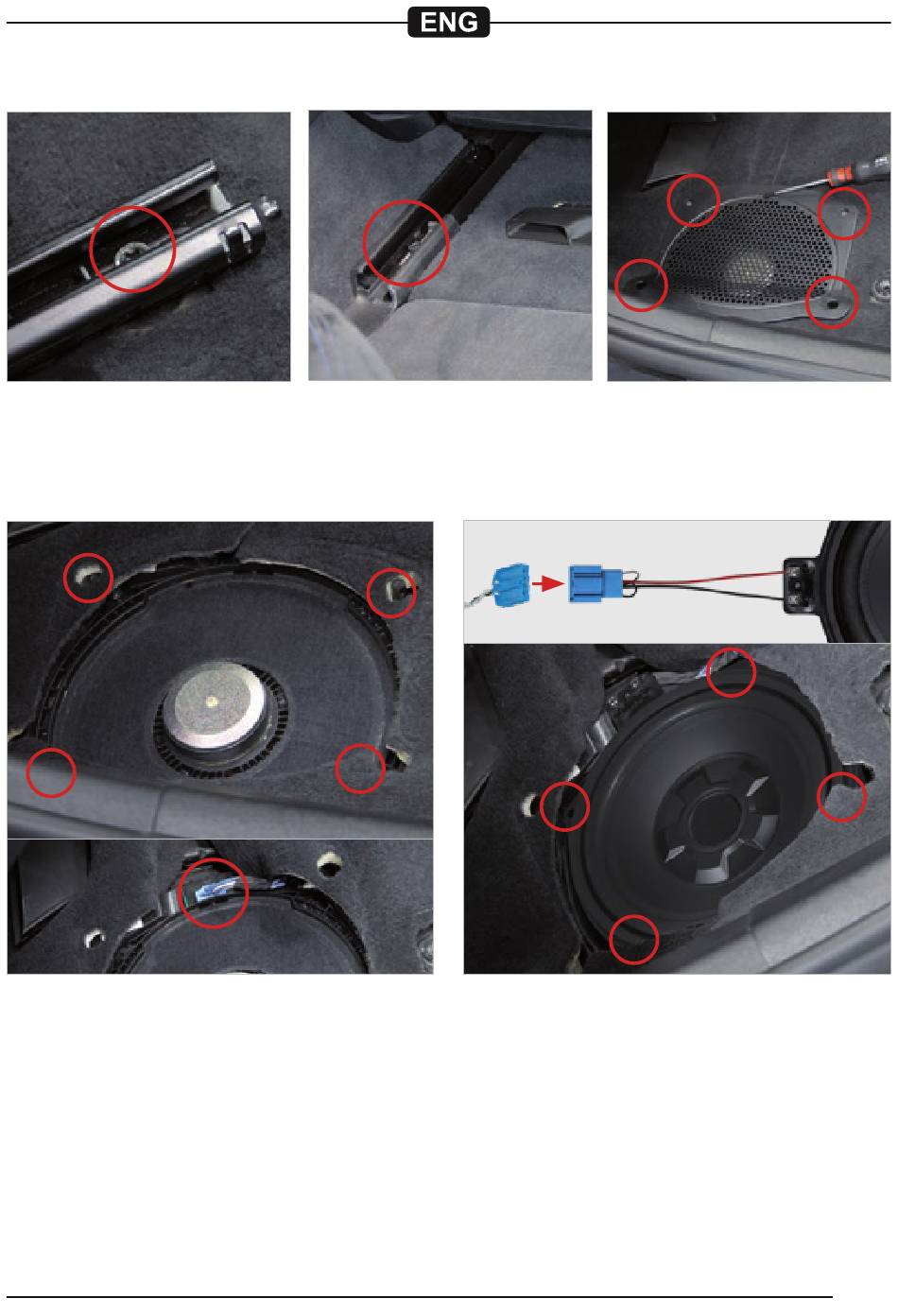

To install the subwoofer, the front seats, which are each fastened with 4 screws,
must be removed. The subwoofer is now accessible. Remove the subwoofer cover.
This is attached with 4 screws.
Now remove the original subwoofer, which is also attached with 4 screws, and dis-
connect the original cable plug. Then insert the original cable plug into the supllied-
adapter plug. Connect its two loose cable ends to the ESX subwoofer. Pay attention
to the correct polarity.
Then screw the ESX subwoofer tight with the 4 original screws.
Then put the cover back on the subwoofer and screw the seat back on. Make absolutely
sure that the screws are tightened securely.
Repeat the steps on the other side of the vehicle.
+
–
