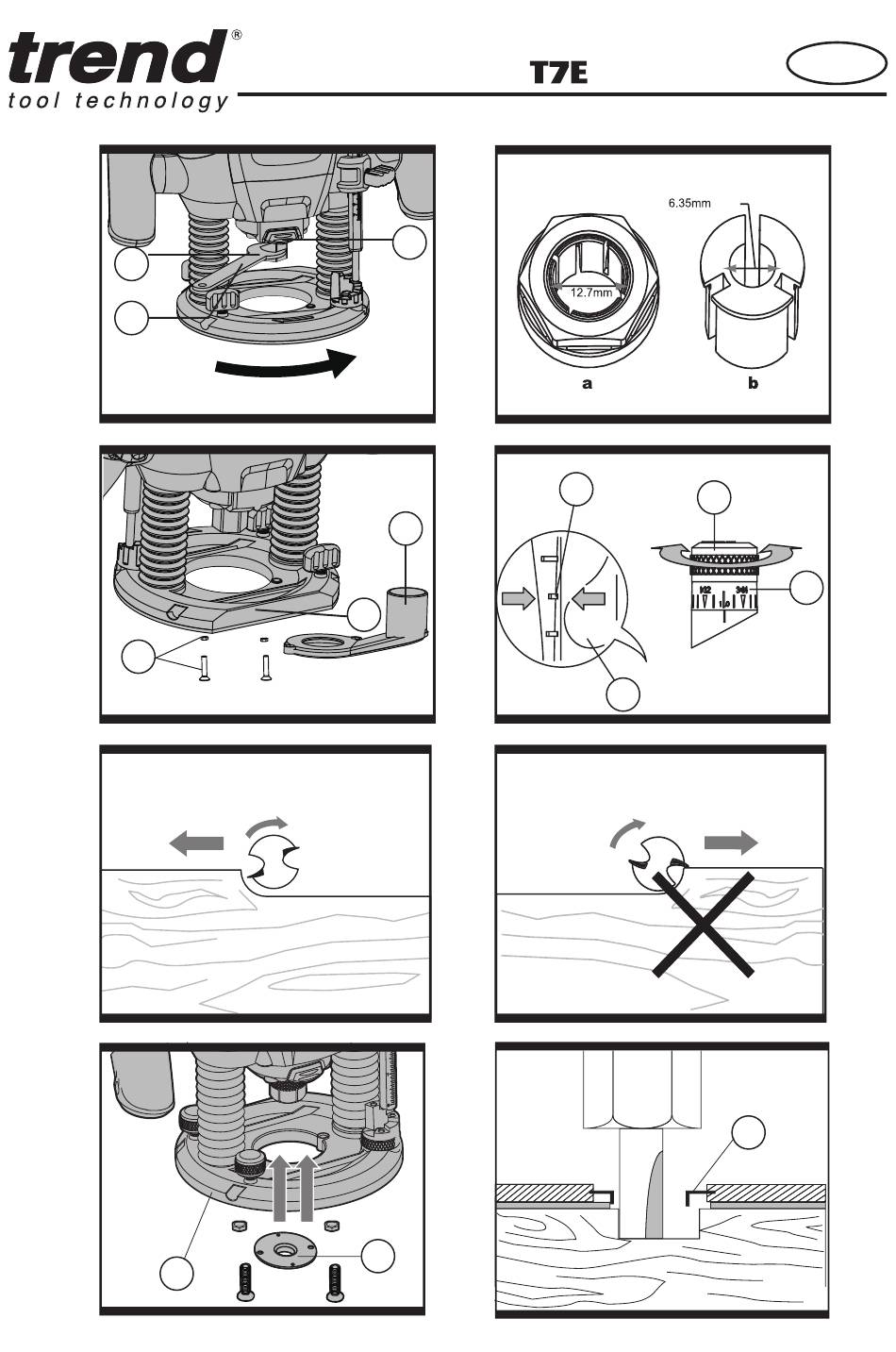

TREND T7E Originalbetriebsanleitung Seite 4

A
13
19
C
25
E
G
11
B
14
D
20
10
F
H
24
- -
2
23
1
3
13. ROUTING CIRCULAR ARC PROFILES
(See M, N, O)
To reassemble the router guide for use as a circl
guide (arc guide), follow below steps:
• Loosen rear wing knobs (28) and fine
adjustment knob (A), spacer, and indicator
(B), remove these parts from guide rods (C)
• Loosen front knobs and guide base (E),
remove from the guide rods.
• Remove springs (D) from guide rods.
• Reinstall fine adjustment guide (F) onto
guide rods rotate 180 degrees from normal
position so that circle guide hole faces awa
from the router.
English
2
24
