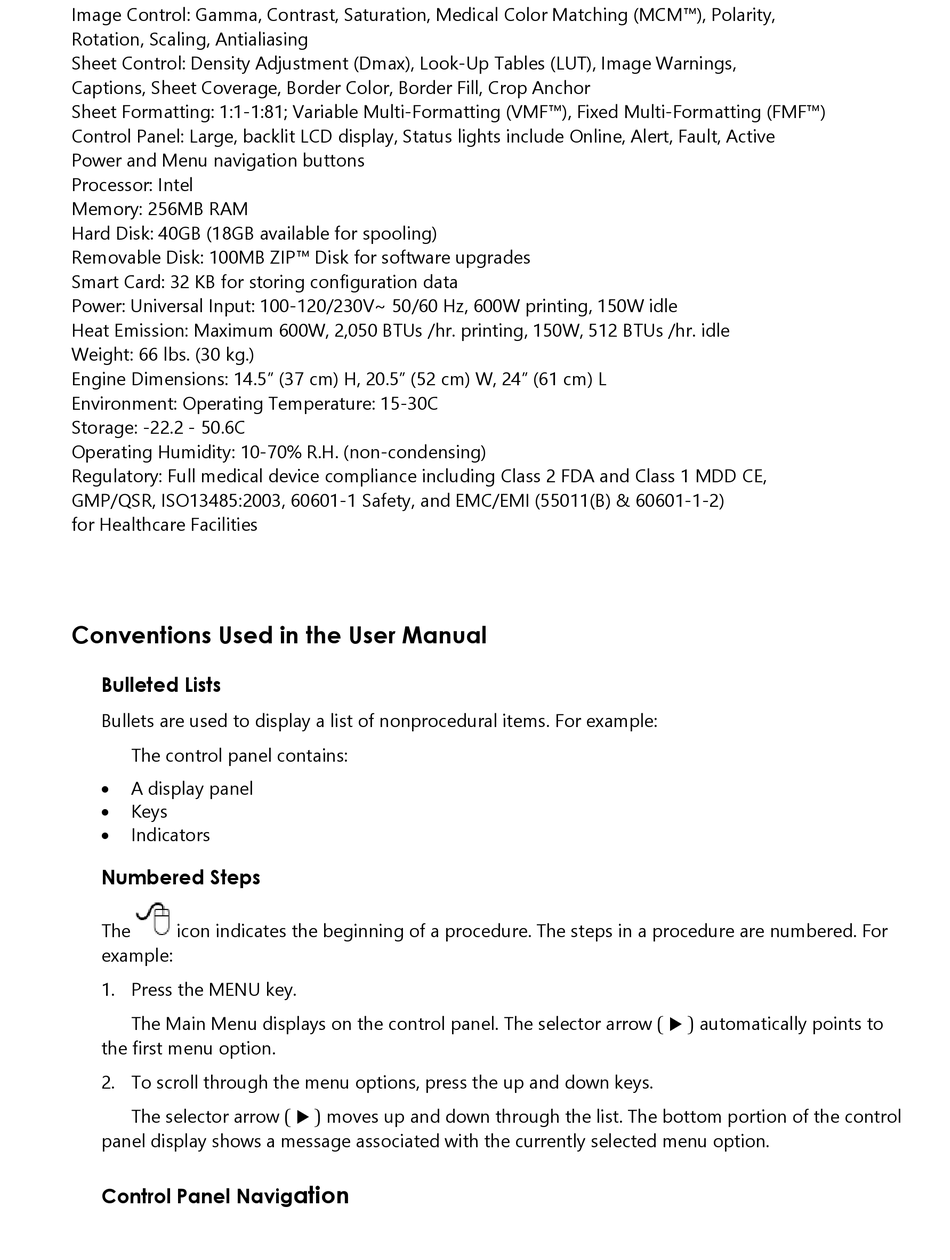

Image Control: Gamma, Contrast, Saturation, Medical Color Matching (MCM™), Polarity,
Rotation, Scaling, Antialiasing
Sheet Control: Density Adjustment (Dmax), Look-Up Tables (LUT), Image Warnings,
Captions, Sheet Coverage, Border Color, Border Fill, Crop Anchor
Sheet Formatting: 1:1-1:81; Variable Multi-Formatting (VMF™), Fixed Multi-Formatting (FMF™)
Control Panel: Large, backlit LCD display, Status lights include Online, Alert, Fault, Active
Power and Menu navigation buttons
Processor: Intel
Memory: 256MB RAM
Hard Disk: 40GB (18GB available for spooling)
Removable Disk: 100MB ZIP™ Disk for software upgrades
Smart Card: 32 KB for storing configuration data
Power: Universal Input: 100-120/230V~ 50/60 Hz, 600W printing, 150W idle
Heat Emission: Maximum 600W, 2,050 BTUs /hr. printing, 150W, 512 BTUs /hr. idle
Weight: 66 lbs. (30 kg.)
Engine Dimensions: 14.5" (37 cm) H, 20.5" (52 cm) W, 24" (61 cm) L
Environment: Operating Temperature: 15-30C
Storage: -22.2 - 50.6C
Operating Humidity: 10-70% R.H. (non-condensing)
Regulatory: Full medical device compliance including Class 2 FDA and Class 1 MDD CE,
GMP/QSR, ISO13485:2003, 60601-1 Safety, and EMC/EMI (55011(B) & 60601-1-2)
for Healthcare Facilities
Conventions Used in the User Manual
Bulleted Lists
Bullets are used to display a list of nonprocedural items. For example:
The control panel contains:
A display panel
•
Keys
•
Indicators
•
Numbered Steps
The
icon indicates the beginning of a procedure. The steps in a procedure are numbered. For
example:
1. Press the MENU key.
The Main Menu displays on the control panel. The selector arrow
the first menu option.
2. To scroll through the menu options, press the up and down keys.
The selector arrow
panel display shows a message associated with the currently selected menu option.
Control Panel Navig
moves up and down through the list. The bottom portion of the control
(
)
ation
automatically points to
(
)
