INTERCONNECTION EXAMPLES

NOTE: Please ensure that the connection of the cables have the correct polarity as marked.

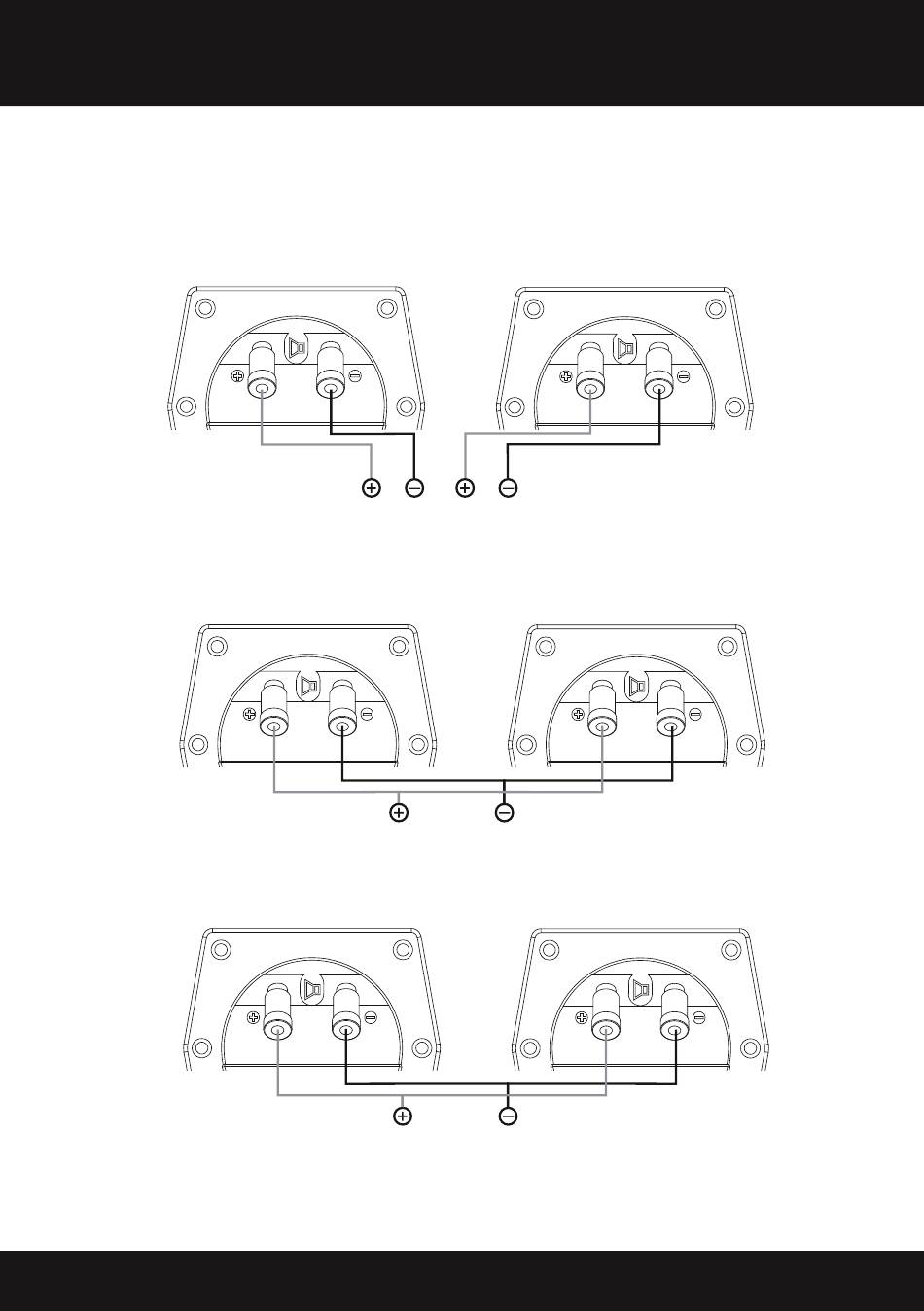

1.) SERIAL OPERATION WITH ONE STEREO AMPLIFIER
4 Ohms, 350 - 600 Watts
2.) PARALLEL OPERATION WITH ONE MONO AMPLIFIER
3.) PARALLEL OPERATION WITH ONE STEREO AMPLIFIER BRIDGED
2 Ohms, 350 - 600 Watts
Channel 1 Channel 2
4 Ohms, 350 - 600 Watts
2 Ohms, 1 x 700 - 1200 Watts RMS
bridged
Channel 1 Channel 2
2 Ohms, 350 - 600 Watts
