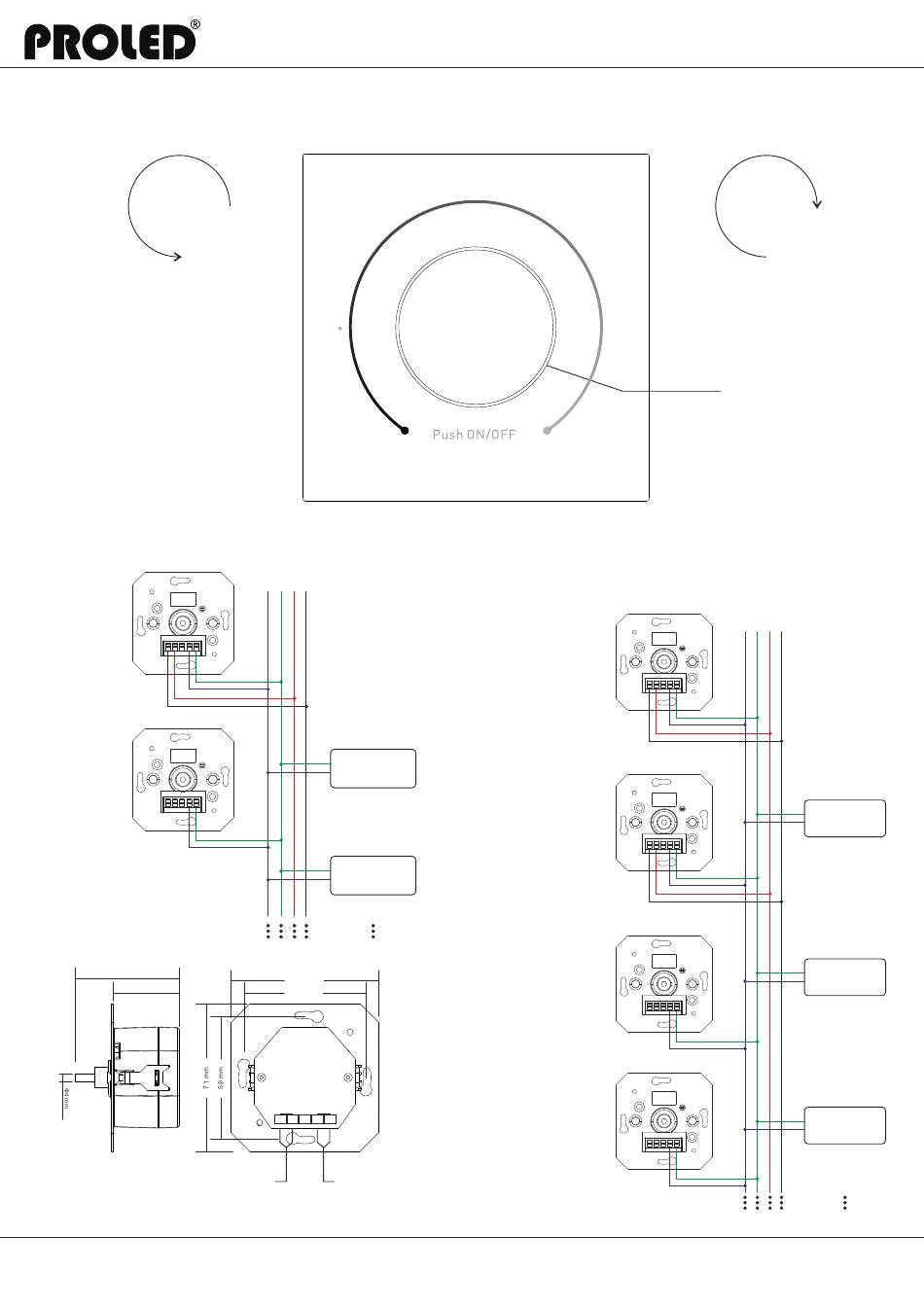

PROLED DALI CONTROLLER UNIVERSAL MASTER Bedienungsanleitung Seite 8

Turn the knob counterclockwise
to decrease the brightness from
100% to 1%
4. Connection diagramm
Controller 1
Controller 2
5. Installation
50.7 mm
32 mm
07.19 Technical amendments reserved
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
AC mains
DA- DA+ L N
DALI DT6
DA
Dimmer
DA
DALI DT6
DA
Dimmer
DA
71 mm
59 mm
DALI Dimmer
DALI OUTPUT AC INPUT
DA+ DA- L N
DALI signal output AC Power input
Back side
Users manual / Bedienungsanleitung
Front view
www.proled.com
Turn the knob clockwise
to increase the brightness from
1% to 100%
Press the knob to
switch light on or off
Figure1: Connection of 2 Controller
at an 100-240 VAC
Controller 1
AC mains
DA- DA+ L N
Controller 2
Controller 3
Controller 4
DALI DT6
DA
DA Dimmer
DALI DT6
DA
DA Dimmer
DALI DT6
DA
DA Dimmer
