Correct use
The RPD15F and RPD25F tubular drives are designed for the exclusive purpose of operating shutters and sun-blind systems. They
serve to open and close these systems and replace the person that is usually operating the installation Therefore, tubular drives may
only be installed in faultless shutter- or sun-blind systems. Rough-running systems have to be repaired. Replace defective parts. This
guarantees safe operation and avoids damage during opening or closing.
Any other form of usage is deemed to be incorrect. Neither the manufacturer nor the supplier assumes any liability for personal injury, damage to
property or consequential injury or damage occurring as a result of the use of the control units and / or drives for purposes other than those
mentioned above or due to changes made to the equipment affecting the safety of the given system. 1The details stipulated in the Operating
Instructions in respect of the operation and repair of the system require strict observance. Neither the manufacturer nor the supplier assumes
any liability for personal injury, damage to property or consequential injury or damage occurring as a result of non-compliant actions.
In compliance with standard EN 60 335-2-97:2000, the cable connecting the drives to the mains cable must be laid internally.
According to DIN 18073 shuter box lid must always be easily accessible and removable.

BATTERY DISPOSAL

Batteries and rechargeable batteries may not be disposed along with domestic waste, but are obliged to
be returned. After use they can be returned free of charge locally e.g. in trade or at municipal collecting
points. Batteries and rechargeable batteries are marked with a crossed waste container as well as with
the chemical symbol which describes their toxic element, "Cd" for cadmium, "Hg" for mercury and "Pb"
for lead.
Performance Features
Model Diameter Torque
(mm) (Nm)
RPD15F 45 15
RPD25F 45 25
Max. area (area = length x breath)
RPD15F
PVC 7,5m 2
6,0m 2
ALU
3,0m 2
WOOD
AWNING
INSTALLATION PROCESS SEQUENCE AND STEPS
1. Install drive (installation)
2. Wire up and connect drive (motor connection)
3. Set limits of shutter (the remote control has already been programmed).
PLEASE NOTE: Should the UP / DOWN button function the wrong way round i.e. as DOWN / UP button, wait until step 5 before changing it!
4. Insert shutter armouring (slats) and complete installation.
5. Change functionality of remote control (reverse direction of movement (UP/DOWN) on the remote control and programme new remote controls).
1. INSTALLATION
Rough- in or install conduit pipe to the connector box for the electrical connecting line according to local building and electrical codes.
THE DRIVE IS PREMOUNTED. THE DESCRIPTION IS FOR CHECKING PURPOSES!

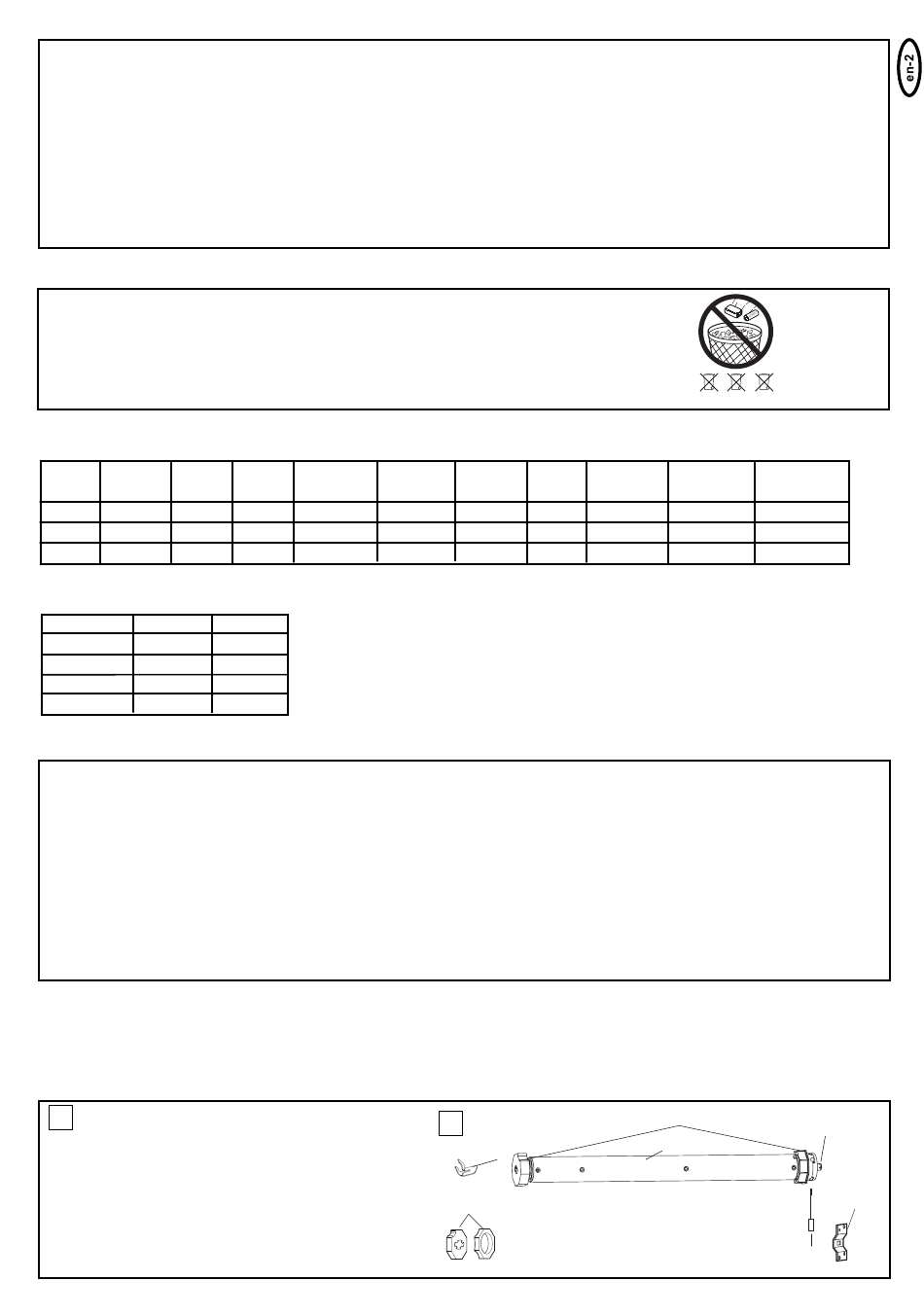

A
Carton Contents
1. Motor (1)
2. • Adjuster pin (2)
• Drive adapter safety catch (3)
• Square pin (4)
• Shaft adapter (5)
• Wall bracket (6)
3. Manual
Speed Operating Frequency
Voltage
(rpm) (V) (Hz)
15 230 50
15 230 50
RPD25F
10m 2
2
8,0m
4,2m 2
11,5m 2
StandBy
Current Motor
input rating
(W)
(A) (W)
0,60 133 1,4
0,89 191 1,4
A
A
CRX101 - CRX501
3
5
Pb Cd Hg
Limit Switch
Operating
Range
time
(min) (U)
25
4
25
4
5
4
1
2
6
