AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 3 Rogue R2X Spot products at 120 V, 6 products at 208 V, or 7 products at 230 V. Never exceed this
number. Power-linking cords can be purchased separately.
AC Plug
Connection
AC Live
AC Neutral
AC Ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Replacing the Fuse
1. Disconnect the product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue R2X Spot will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is
available from www.chauvetprofessional.com.
DMX Connection
The Rogue R2X Spot uses a 3- or 5-pin DMX data connection for its DMX personalities: 18CH and 21CH. See the User
Manual for information about connecting and configuring the product for DMX operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers
have this capability. The Rogue R2X Spot supports RDM protocol that allows feedback to make changes to menu map
options. Download the User Manual from
Mounting
Before mounting this product, read the
mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/.

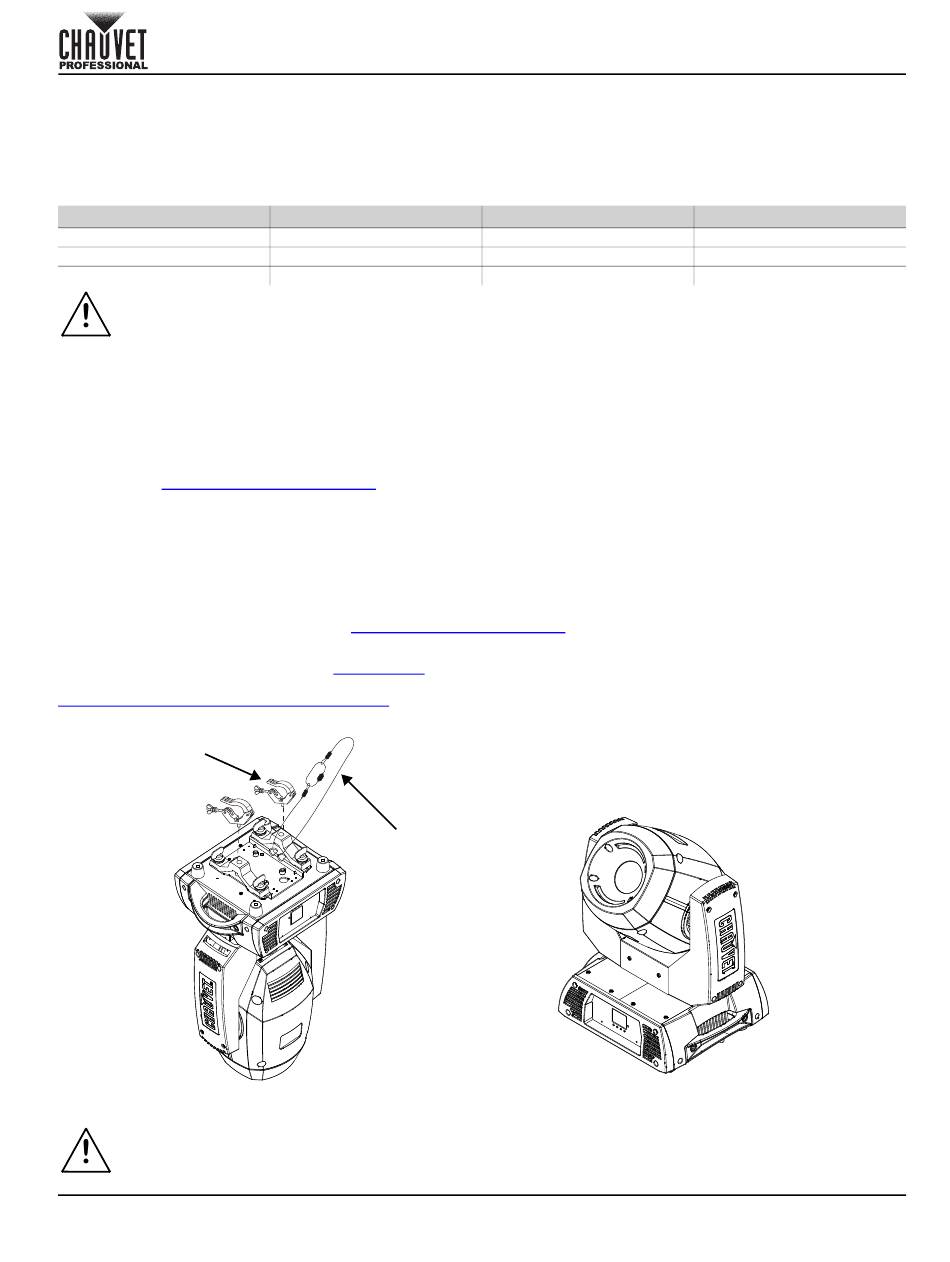

Mounting Diagram

Mounting clamps
Overhead Mounting
When using only one mounting clamp, be sure to use a clamp with a captive bolt to prevent accidental
loosening.
Rogue R2X Spot QRG Rev. 4
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/Yellow
www.chauvetprofessional.com
Safety Notes. Use at least one mounting point per product. Make sure the
Safety cable
Wire (Europe)
Brown
Blue
Green/Yellow
for more details.

Floor Mounting

EN
Screw Color
Yellow/Brass
Silver
Green
