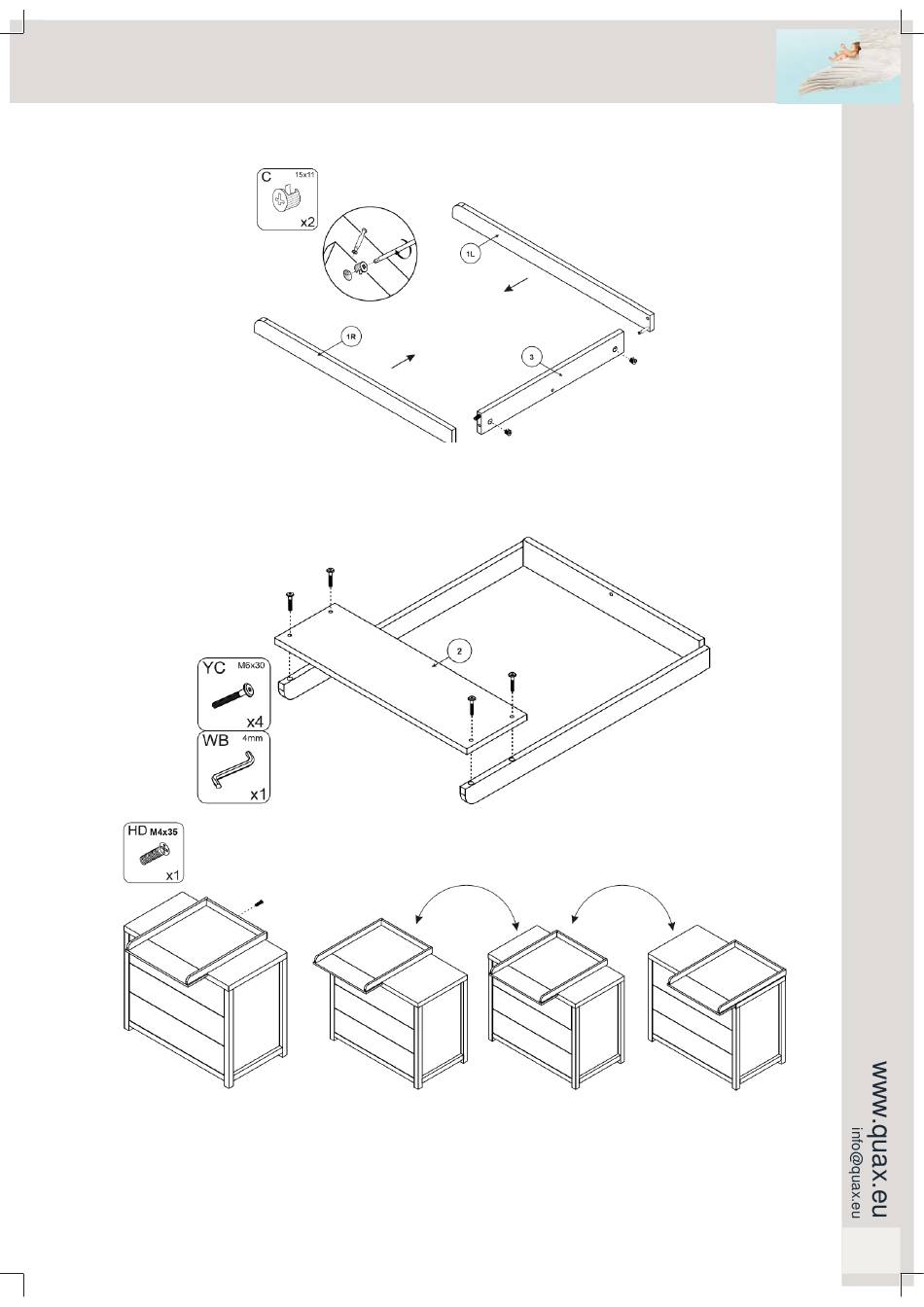

Step 2 : Use the steps of step 1 and two eccentrics C
Push the eccentrics (C) into the drillings provided at the rear of the back. Push both end sides with their
connectors in the holes and over the wooden dowels of the back and tighten the eccentrics.
Step 3 : Use the parts of step 2, the cross bar 2, four wood screws YC, the Joy (Small) chest of drawers
and a bolt HD
Position the cross bar (2) on the drillings of the sides. Push the wood screws (YC) through the holes of the
crossbar and screw them into the sides. Push the changing extension over the top of the chest of drawers
and choose one of the positions. Push the bolt (HD) through the provided opening of the back and fasten
it in the cabinet.
