Replacing the ADF
OptraImage Setup Guide
Downloaded from www.Manualslib.com
pad assembly
manuals search engine
If you experience problems with papers double-feeding
through the ADF, the pad assembly may be worn out and
need to be replaced.
1
Turn off and disconnect the power to the scan unit.
2
Open the ADF front cover.
3

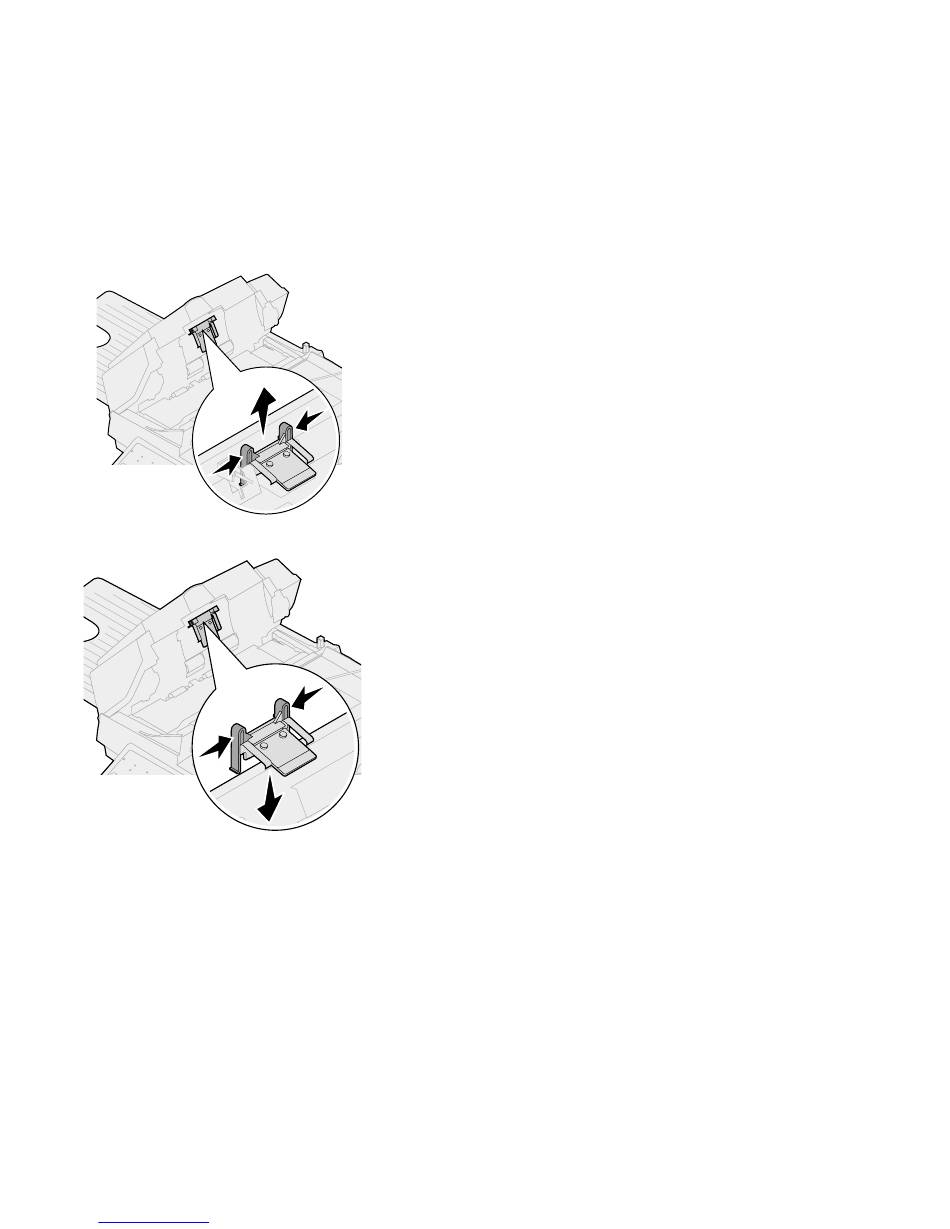

Remove the old ADF detachable pad assembly by
squeezing and pulling out the upper part of the pad clamp.
4
Hold the upper part of the new clamp, squeeze, and place
it gently in the pad holder.
5
Close the ADF.
6
Reconnect the power and turn the scan unit back on.
29
