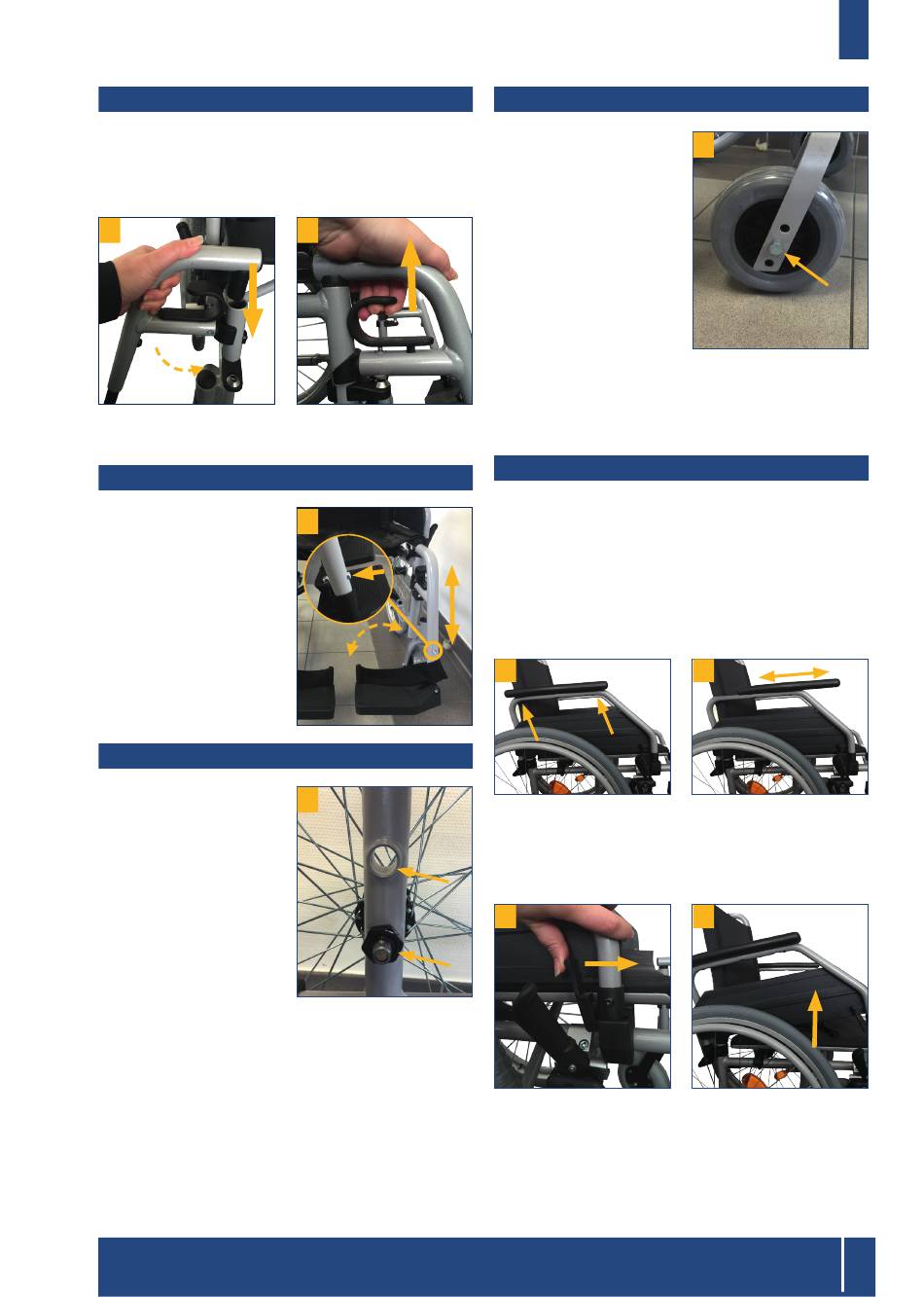

Hanging the footrests

Hang both footrests provided as shown and swivel them
inwards until they audibly click into place (photo 4). To
release the footrests, press the lever inwards and swivel
the footrests to the side (photo 5).
4
Never swivel the footrests inwards!

Length adjustment of the footrest

Length adjustment
(photo 6)
Loosen and remove the
screw at the back of the
footrest (see circle) and
adjust the length accordin-
gly as desired by pushing
up or down. Check where
the threaded hole is and
reinsert the locking screw.
Retighten the screw!

Adjusting seat height (rear wheel mount)

The height of the seat at
the rear can be adjusted
in increments. To adjust
it, remove both hand rim
wheels by pressing the re-
lease button (see section
"Attach wheels"). Unscrew
the nut of the wheel mount
and move it into the desi-
red hole.
Replace the nut with the
locking washer and tigh-
ten it (photo 7).
Ensure that the wheel axle is properly tightened!
Drive Medical GmbH & Co. KG | As per: 28.04.2021 | Errors and alterations excepted
5
6
7

Adjusting seat height (front wheel mount)

The height of the seat can
be adjusted in increments
and is correspondingly ad-
justed in the desired incli-
nation of the seat surface.
To adjust, unscrew the
wheel axle screw and pull
it out.
The plugs of the corres-
ponding holes can be ea-
sily exchanged. Now move
the wheel in the desired
position and reinsert the wheel axle screw and tighten
it (photo 8).
Ensure that the wheel axle is properly tightened!

Adjusting and removing armrests

The armrests are already assembled on the wheelchair
upon delivery. The armrest overlays are replaceable. The
armrest overlay can be adjusted as a short or long arm
support, as needed (photo 9+10). To adjust it, loosen the
screws on the underside and move the armrest into the
desired position.
Retighten the screw!
9
To swivel the armrest backwards, engage the release le-
ver at the front of the arm rest and hold it down it while
simultaneously pulling the armrest up until the armrest
is free. Now it can be swiveled backwards (photo 11+12).
11
EN
8
10
12
Instructions for use ECOTEC 2G
