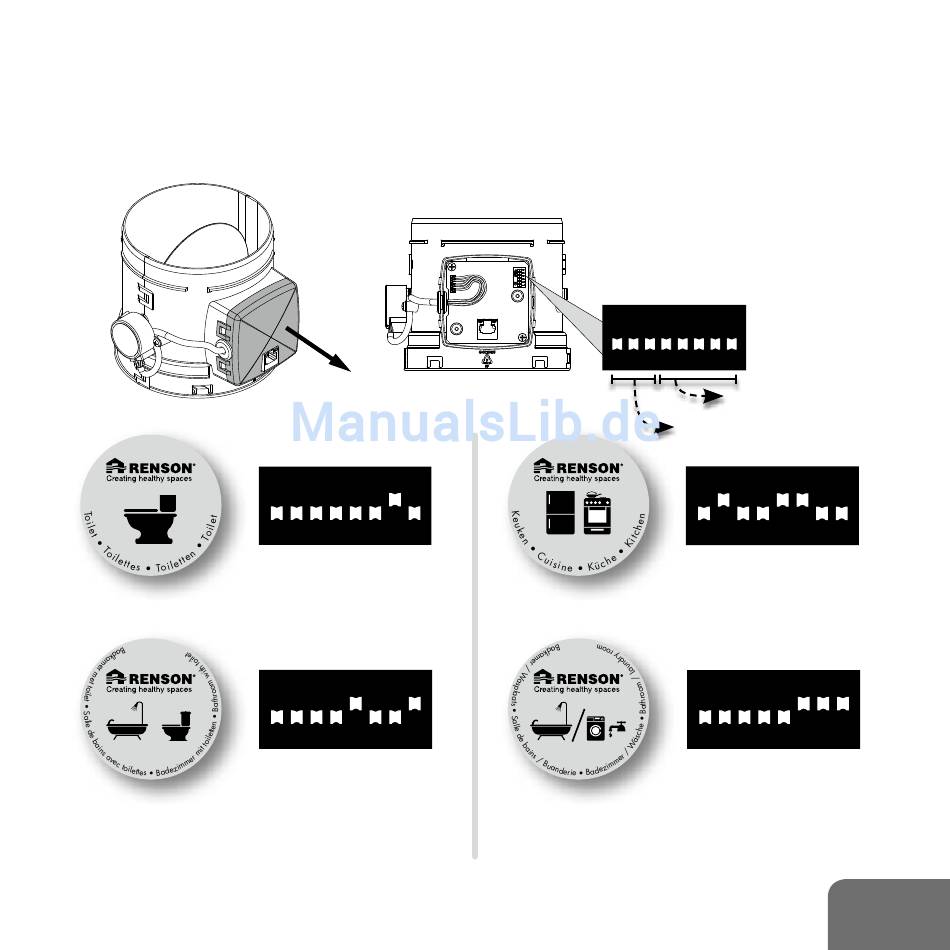

3 • Positioning the dipswitches
The Healthbox II comes with a number of control valves as described below. All valves are
®
preconfigured at the correct minimal airflow rate and with the correct control values. Only the installer
can alter airflow rates or control values (CV) if the specific building situation requires it.
(continue in this section).
+
ON
1 2 3 4 5 6 7 8
Kit toilet - 25 m /h
3
CV: dynamic VOC
ON
1 2 3 4 5 6 7 8
Kit bathroom + toilet
60 m³/h
CV: dynamic VOC +
Dynamic H O
2
ON
1 2 3 4 5 6 7 8
Setting the airflow rate
Setting the threshold
ON
1 2 3 4 5 6 7 8
Kit kitchen – 75 m³/h
(closed kitchen = 50 m³/h)
CV: CO = 900 ppm
2
ON
1 2 3 4 5 6 7 8
Kit bathroom + laundry room
50 m³/h
CV: dynamic H O
2
