3. Product description

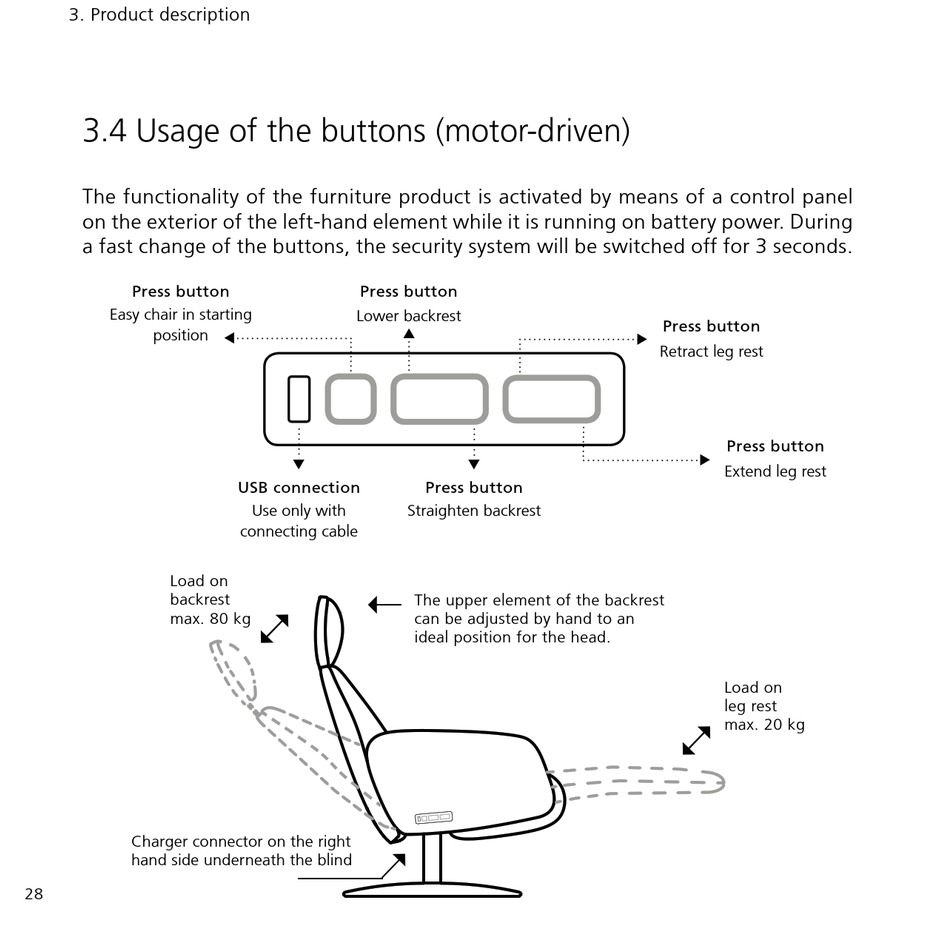

3.4 Usage of the buttons (motor-driven)

The functionality of the furniture product is activated by means of a control panel
on the exterior of the left-hand element while it is running on battery power. During
a fast change of the buttons, the security system will be switched off for 3 seconds.
Press button
Easy chair in starting
position
Load on
backrest
max. 80 kg
Charger connector on the right
hand side underneath the blind
28
Press button
Lower backrest
USB connection
Use only with Straighten backrest
connecting cable
Press button
The upper element of the backrest
can be adjusted by hand to an
ideal position for the head.
Press button
u
Retract leg rest
Press button
u
Extend leg rest
Load on
leg rest
max. 20 kg
