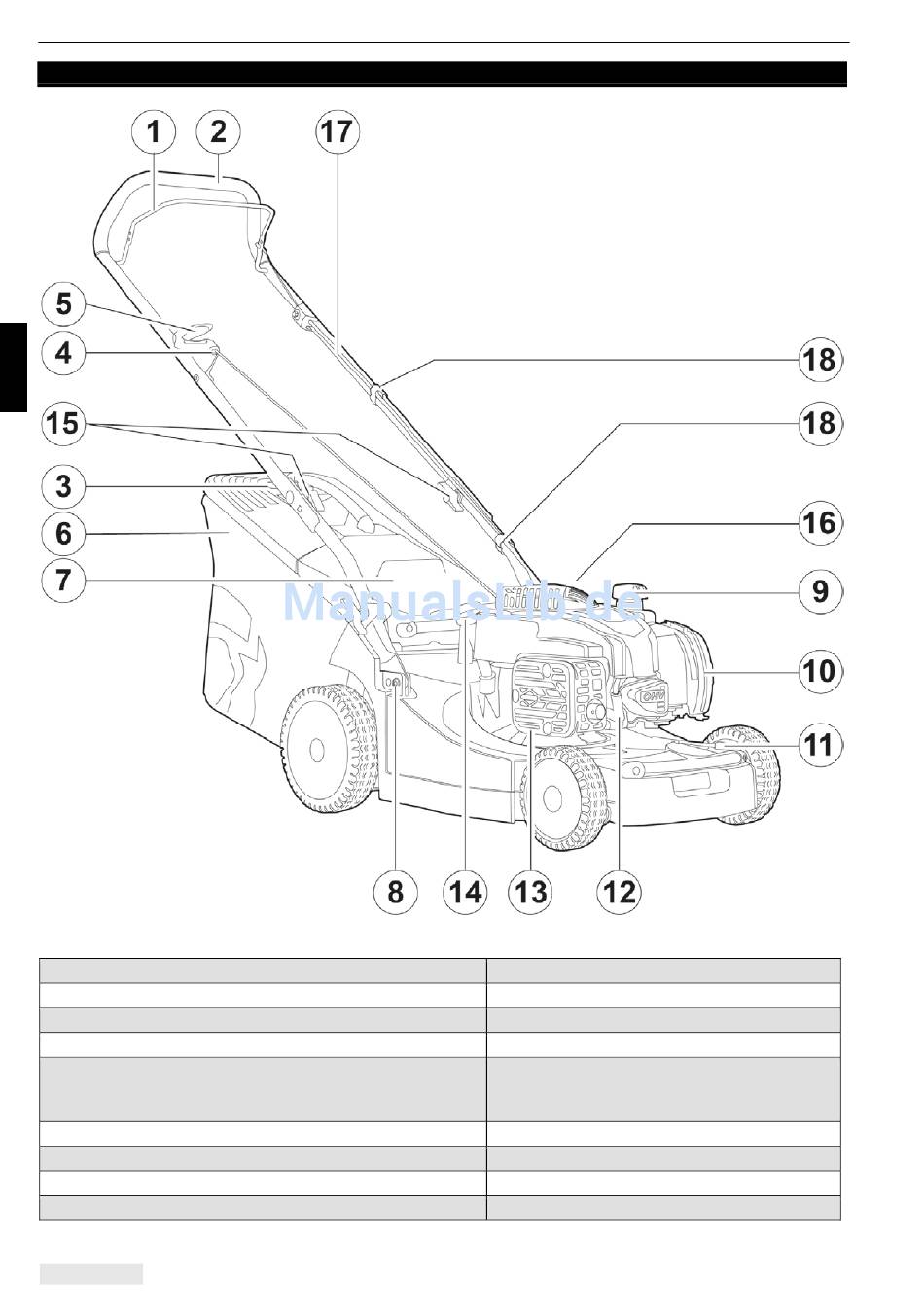

Control and function elements

1 Motor release bracket
2 Handle
3 Filling level indicator of the grass catching device
4 Rope eyelet
5 Starter grip
6 Grass catching device
7 Ejection shield
8 Handle bolt
9 Fuel tank
ENGLISH 4
2 Control and function elements
10 Air filter
11 Cutting height adjustment indicator
12 Spark plug
13 Muffler
14 Oil filler pipe
Fill in engine oil before taking into
operation!
15 Handle screwing
16 Cutting height adjustment
17 Bowden cable
18 Bowden cable fixture
