Congratulations on the purchase of your new Nano Phono V2 / Nano Phono
"H" V2 MC/MM phonostage.
The Nano Phono V2 / Nano Phono "H" V2 features a power switch: we
recommend that you keep the unit switched on in order to maintain a constant
temperature for the electronic parts inside (this uses very little power). The new
Nano Phono V2 / Nano Phono "H" V2 also has a built-in volume control unit.
IMPORTANT!
First, select either the MC (moving coil) or MM (moving magnet) mode according
to your cartridge type, by inserting the removable jumpers into the relevant
positions on the bottom of the unit (one each for left and right channels).
The subsonic-filter function can also be adjusted by inserting jumpers into the
relevant points on the bottom of the unit: if the jumper is inserted, then the
subsonic filter is OFF. If the jumper is not inserted, then the subsonic filter is
ON.
The next step is to connect the ground wire of the turntable/tonearm with the
Nano Phono V2 / Nano Phono "H" V2. Make sure that the gain control is set
to its lowest volume before connecting the Nano Phono V2 / Nano Phono "H"
V2 to your MC/MM cartridge and preamplifier.
Finally, the very last thing to do is to connect the power supply to the mains and
press the power switch to the "ON" position.
- Attention -
Never cover or put anything on top of the Nano Phono V2 / Nano Phono "H"
V2 as this could lead to overheating of electronic parts.

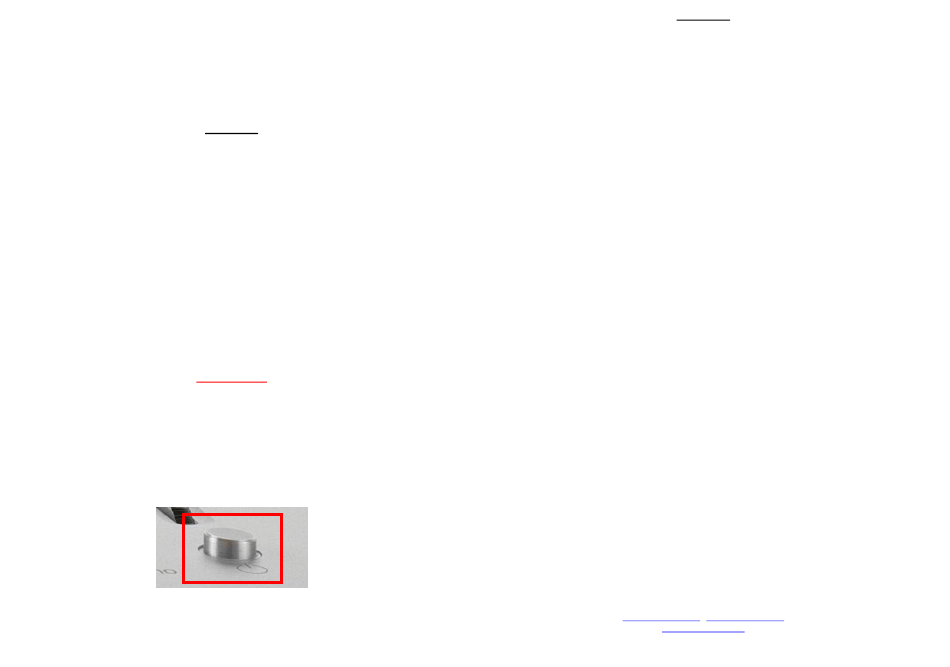

To switch the unit to standby mode, press the button on top of the device.
If the device is not in use, disconnect it completely from the power supply by
removing the main plug from the socket.
Standby mode
English
- Set up -
1. If you are using the Nano Phono V2 / Nano Phono "H" V2 with a two-pin
mains plug, you may notice that inserting the plug into the mains socket one way
round gives a slightly better sound than the other way.
Experiment to identify which is the optimum position.
2. Phonostages provide a very high level of amplification, to address the fact that
the electrical signal generated by a phono cartridge is extremely low.
As a result, phonostages are extremely sensitive, which leads to the potential
problem that high-frequency interference may also be amplified to a point at
which it becomes noticeable. Unfortunately it is not possible to completely protect
the sensitive phonostage circuitry from this interference without degrading its
high fidelity performance.
Therefore care must be taken to position the phonostage away from sources of
high frequency interference such as mobile phones, modems and powerline
communication systems (PLC) in which data is sent over the mains power
network.
NANO Phono V2 Product information
The Nano Phono V2 is a fully Dual Mono Design, designed for use with either MM
or MC cartridges. Cartridge type is selected with individual jumpers for the left
and right channels which are located on the underside of the unit.
The standard input impedance is set at 47 kΩ, which ensures an optimal setting
for all MM Cartridges. For the perfect input matching with MC cartridges,
clearaudio now includes the following resistor pairs:
- 51 / - 200 / -402 an 1000 Ω
If there are no resistors connected to the jumpers while in MC mode, the
cartridge is automatically loaded with 47 kΩ.
The 402 Ω resistors are recommended for clearaudio MC cartridges.
rd
The other resistor values allow 3 party MC cartridges to be loaded according to
the manufacturer's guidelines.
It should be noted that sometimes your personal preference for cartridge loading
may differ from that recommended by the cartridge manufacturer.
If so, clearaudio recommends: Trust your own listening abilities, in your own
surroundings!
Your Clearaudio Team
Clearaudio electronic GmbH
Spardorfer Str. 150
91054 Erlangen; Germany
Tel/Phone: +49 9131 40300100; Fax: +49 9131 51683
www.clearaudio.de;
www.analogshop.de
(Technical changes may be made without prior notification; products will be available as long as stock lasts)
