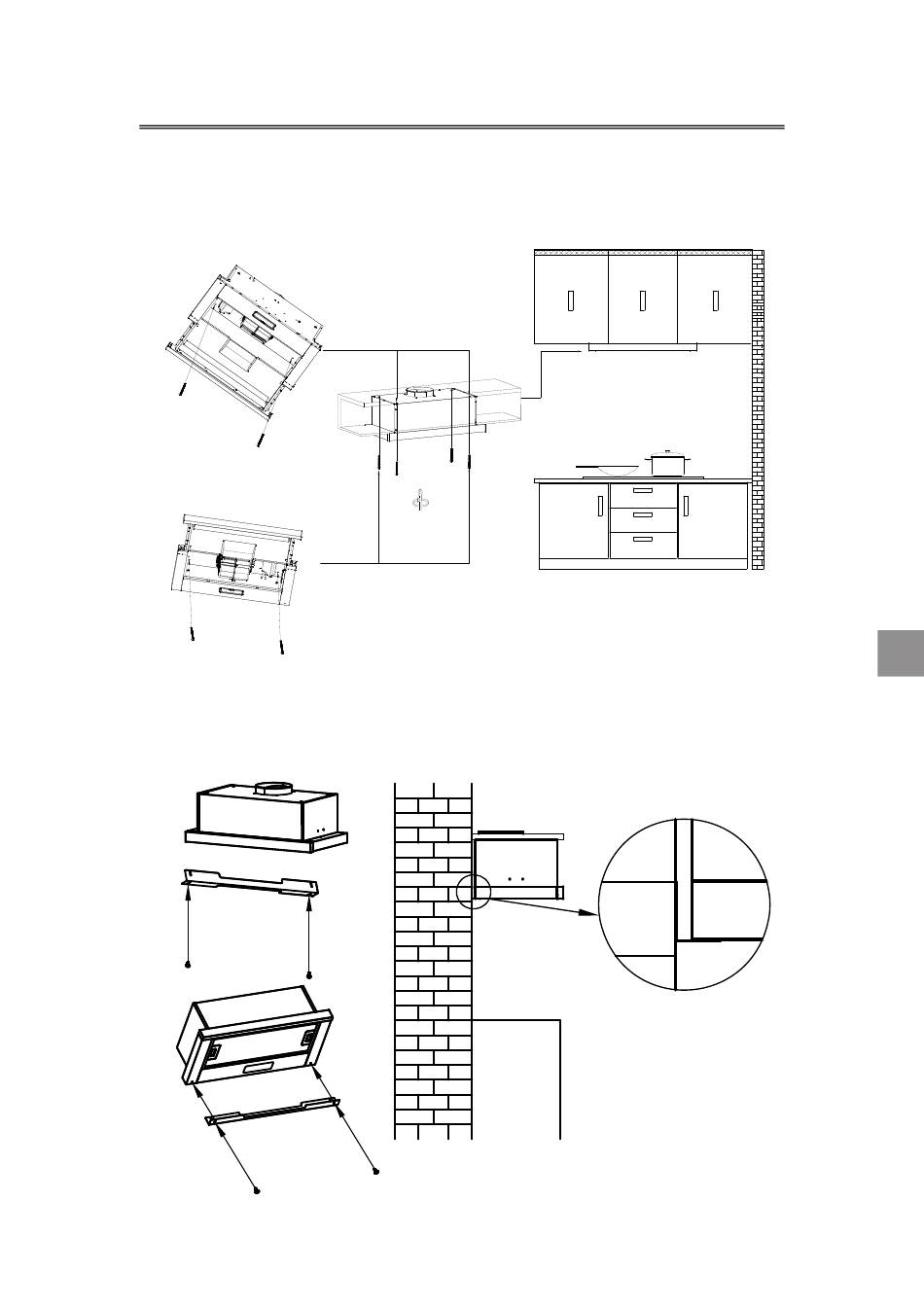

3) Align the air ventilation port of the cook hood with the cabinet
ventilation hole at the bottom, pass the power cord through the power
hole, and then use four 4 * 30mm screws to lock into the corresponding
position of the cabinet to fix the cook hood.
4) If there is a gap between the hood and the wall, you can install
the Back Bracket, as shown in the figure, use two 4*8 screws to fix the
back Bracket on the hood, and adjust the position of the back Bracket
to the wall according to the actual situation.
