MikroTik mANTBox 5 Serie Kurzanleitung

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v6.49.1 or the latest version to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed.

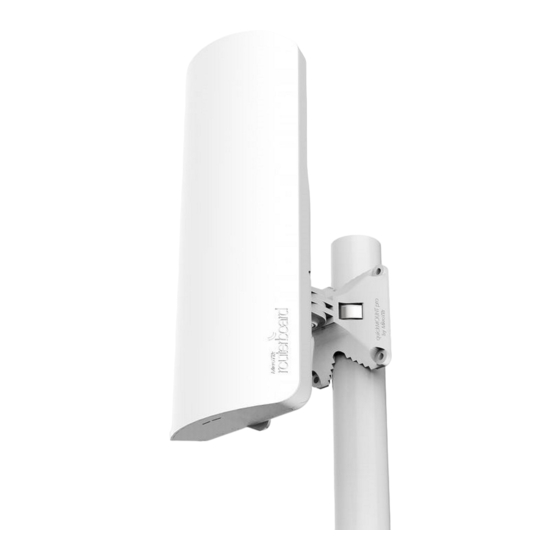

This "mANTBox 5" series Quick Guide covers models: RB921GS-5HPacD-15S (mANTBox 15s), RB921GS-5HPacD-15S (mANTBox 19s).
This is Wireless Network Device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures, and more info about products at
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Configuration manual for software in your language with additional information can be found
MikroTik devices are for professional use. If you do not have qualifications please seek a
This Device accepts input of a 24V DC power adapter, together with a PoE Injector, which is provided in the original packaging of this device.
First steps:
Connect the device to the included PoE injector with Ethernet cable;
Connect the PoE injector into the computer;
Connect the power adapter to the PoE injector;
Download WinBox configuration tool
Default IP: 0.0.0.0, user name:
Once connected configure the device, so it has an active Internet connection
Upgrade the RouterOS software to the latest version
In the "QuickSet, CPE" menu set up the following: Choose your country, to apply country regulation settings;
Set the antenna gain, depending on the antenna used;
Set up your router password in the bottom field.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correc t hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 30 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v6.49.1 или най-новата версия, за да се гарантира спазването на местните
регулаторни разпоредби.
Крайните потребители са отговорни за спазването на местните разпоредби, включително работата в рамките на законни честотни канали,
извеждане на продукция изисквания за захранване, окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства
на MikroTik трябва да бъдат професионално инсталиран.
Тази серия "mANTBox 5" Бързо ръководство обхваща модели: RB921GS-5HPacD-15S (mANTBox 15s), RB921GS-5HPacD-15S (mANTBox 19s).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Устройствата MikroTik са за професионална употреба. Ако нямате квалификация, моля, потърсете
Това устройство приема вход на 24V DC адаптер за захранване, който се предлага в оригиналната опаковка на това устройство. Това устройство може
да се захранва с помощта на PoE инжектор (предоставен в опаковката).
Първи стъпки:
Свържете устройството към включения PoE инжектор с Ethernet кабел;
Свържете PoE инжектора в компютъра;
Свържете захранващия адаптер към PoE инжектора;
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
https://mt.lv/winbox ;
admin
and there is no password, or use
https://mt.lv/upgrade
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
https://mikrotik.com/products
at https://mt.lv/help
consultant https://mikrotik.com/consultants
the Neighbors tab and connect through MAC address;
https://mt.lv/configuration
;
https://mt.lv/um-bg за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
;
https://mt.lv/help-bg
консултант https://mikrotik.com/consultants
.
