MikroTik RBmAPL-2nD Kurzanleitung

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.10 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.

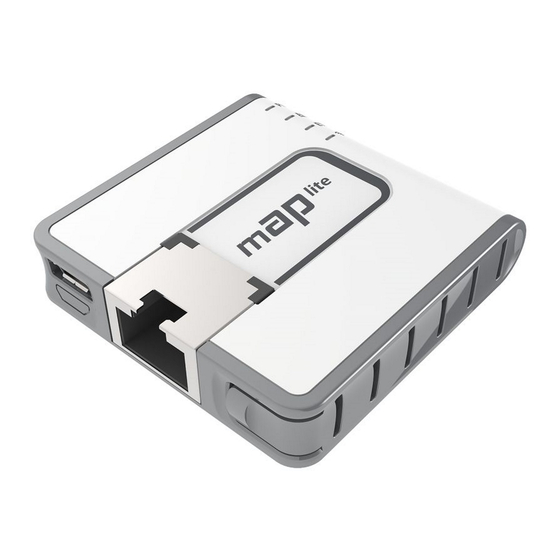

This Quick Guide covers models: RBmAPL-2nD (mAP lite).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures, and more info about products at
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
First steps:
Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address;
Connect your ISP cable to the first Ethernet port;
Connect the device to a power source;
Navigate to the network connections section on your computer and locate the wireless network named "
wireless passwords on the sticker)
Establish a connection using a mobile application. Alternatively, use Webfig in a web browser or the "WinBox" configuration tool at
Start configuration within the chosen tool, using the default IP address 192.168.88.1. If the IP address is unavailable, use Winbox and choose the "Neighbors"
tab to find the device;
Proceed to connect using the MAC address. The username is "admin," and there is no password (or, for some models, check user and wireless passwords on
the sticker);
Click the "Check for updates" button and update RouterOS to the latest version;
For a manual update of the device, visit the products page at
the "Support&Downloads" menu;
Upload downloaded packages to the
By upgrading your RouterOS software to the latest version, you can ensure optimal performance, stability, and security updates;
In the " QuickSet" menu set up the following: Choose your country, to apply country regulation settings;
Set up your wireless network password in the left field;
Set up your router password in the bottom field.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
The socket-outlet shall be installed near the equipment and shall be easily accessible.
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
To avoid contamination of the environment, separate the device from household waste and dispose of it in a safe manner, for example, in designated areas.
Become familiar with procedures for properly transporting the equipment to designated collection points in your area.
Exposure to Radio Frequency Radiation:
environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
Manufacturer: Mikrotikls SIA, Unijas 2, Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v7.10 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Това бързо ръководство обхваща модели: RBmAPL-2nD (mAP lite).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
consultant https://mikrotik.com/consultants
;
https://mikrotik.com/products
" WinBox Files" menu and reboot the device;
This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled
https://mt.lv/um-bg
https://mikrotik.com/products
at https://mt.lv/help
to find your product. The required packages are accessible under
за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
https://mikrotik.com/consultants
MikroTik-... ". Proceed to connect to it
https://mt.lv/winbox
https://mt.lv/help-bg
(check the
;
