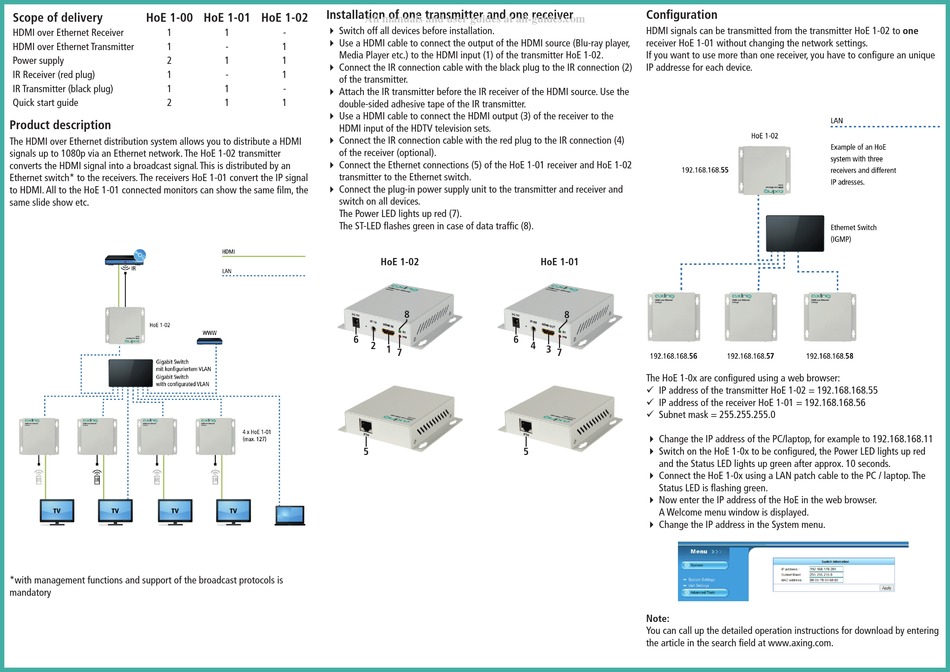

Scope of delivery
HoE 1-00 HoE 1-01 HoE 1-02
HDMI over Ethernet Receiver
1
HDMI over Ethernet Transmitter
1
Power supply
2
IR Receiver (red plug)
1
IR Transmitter (black plug)
1
Quick start guide
2
Product description
The HDMI over Ethernet distribution system allows you to distribute a HDMI
signals up to 1080p via an Ethernet network. The HoE 1-02 transmitter
converts the HDMI signal into a broadcast signal. This is distributed by an
Ethernet switch* to the receivers. The receivers HoE 1-01 convert the IP signal
to HDMI. All to the HoE 1-01 connected monitors can show the same film, the
same slide show etc.
*with management functions and support of the broadcast protocols is
mandatory
Installation of one transmitter and one receiver
All manuals and user guides at all-guides.com
Switch off all devices before installation.
1
-
Use a HDMI cable to connect the output of the HDMI source (Blu-ray player,
-
1
Media Player etc.) to the HDMI input (1) of the transmitter HoE 1-02.
1
1
Connect the IR connection cable with the black plug to the IR connection (2)
-
1
of the transmitter.
1
-
Attach the IR transmitter before the IR receiver of the HDMI source. Use the
1
1
double-sided adhesive tape of the IR transmitter.
Use a HDMI cable to connect the HDMI output (3) of the receiver to the
HDMI input of the HDTV television sets.
Connect the IR connection cable with the red plug to the IR connection (4)
of the receiver (optional).
Connect the Ethernet connections (5) of the HoE 1-01 receiver and HoE 1-02
transmitter to the Ethernet switch.
Connect the plug-in power supply unit to the transmitter and receiver and
switch on all devices.
The Power LED lights up red (7).
The ST-LED flashes green in case of data traffic (8).
HoE 1-02
6
2
1
7
5
HoE 1-01
8
8
6
4
3
7
5
Configuration
HDMI signals can be transmitted from the transmitter HoE 1-02 to one
receiver HoE 1-01 without changing the network settings.
If you want to use more than one receiver, you have to configure an unique
IP addresse for each device.
The HoE 1-0x are configured using a web browser:
9 IP address of the transmitter HoE 1-02 = 192.168.168.55
9 IP address of the receiver HoE 1-01 = 192.168.168.56
9 Subnet mask = 255.255.255.0
Change the IP address of the PC/laptop, for example to 192.168.168.11
Switch on the HoE 1-0x to be configured, the Power LED lights up red
and the Status LED lights up green after approx. 10 seconds.
Connect the HoE 1-0x using a LAN patch cable to the PC / laptop. The
Status LED is flashing green.
Now enter the IP address of the HoE in the web browser.
A Welcome menu window is displayed.
Change the IP address in the System menu.
Note:
You can call up the detailed operation instructions for download by entering
the article in the search field at www.axing.com.
