TECHNICAL
DESCRIPTION
TYPE OF ELECTRODE: 6010 ( CELLULOSIC ).
APPLICATION : Suitable electrode for the welding in all the positions of pipages
in steel type API 5LX - X42 - X 46 - X52, ecc. Easy employment, flowing and pe-
netrating. Light slag and good wash-in permit exellent control of the arc. Particu-
larly adapted for the welding in work, in vertical descendant and overhead. Opti-
mal X -ray qualities.
MEDIUM MECHANICAL CHARACTERISTICS:
Yield strength : 380 N / mm²
Tensile strength : 460 N / mm²
Elongation A5D : 24 %
Resilience CHARPY KV :

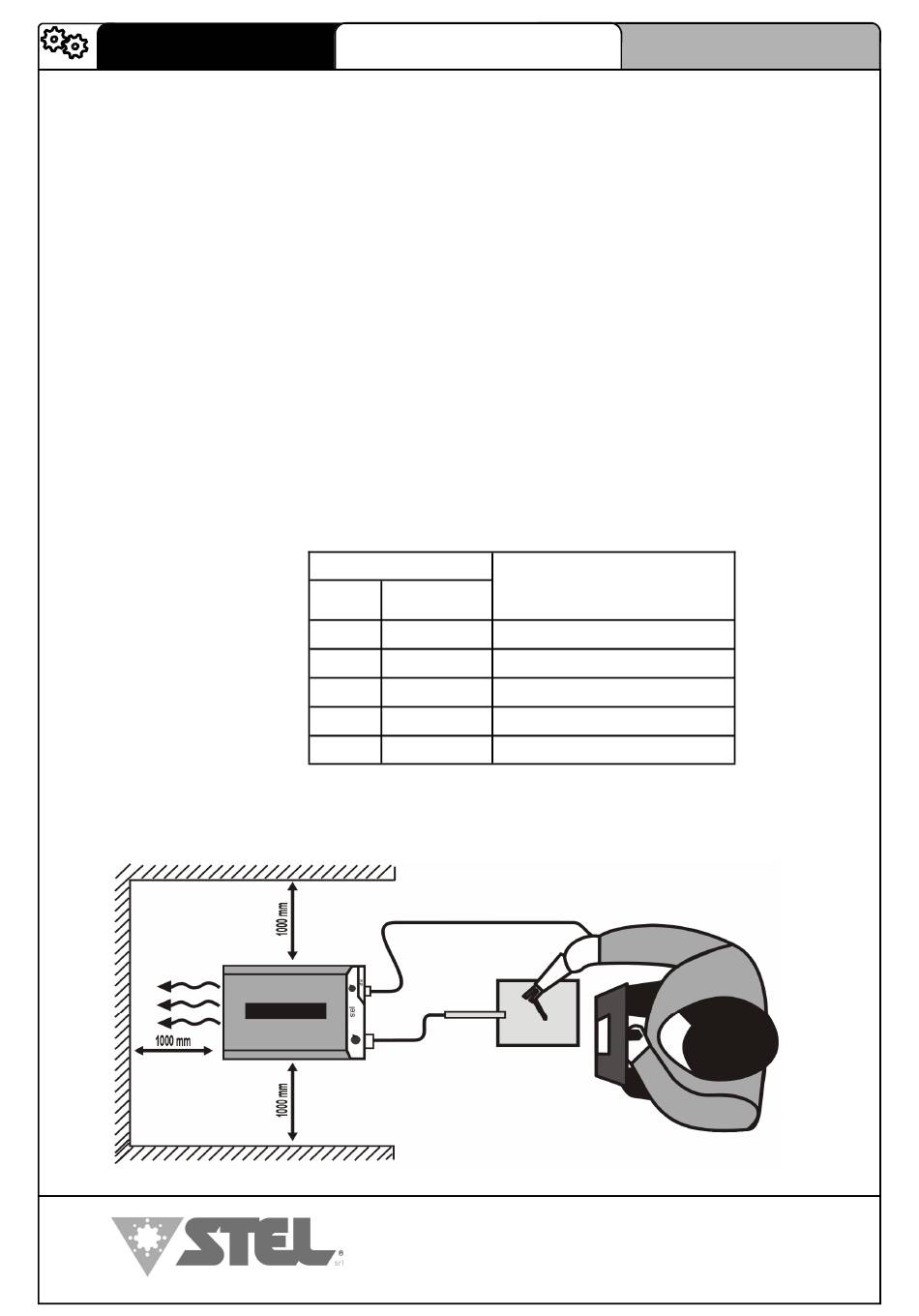

6.4 6.4 6.4 6.4 - - - - REAR AND SIDE DISTANCES TO BE MAINTAINED DURING REAR AND SIDE DISTANCES TO BE MAINTAINED DURING REAR AND SIDE DISTANCES TO BE MAINTAINED DURING REAR AND SIDE DISTANCES TO BE MAINTAINED DURING
WELDING WELDING WELDING WELDING
66
MAX 503 & MAX 503 IP44
COD. 6914500040
J °C
48 0
27 - 30
Dimensions
Length
∅ ∅ ∅ ∅
mm
mm
2,0 300
2,5 300
3,25 350
4,0 350
5,0 350
TEL. +39 0444 639525 (central.) – +39 0444 639682 (comm.)
ENGLISH
Intensity of current advised
( Amp )
30 – 60
40 – 80
60 – 110
90 – 140
110 – 170
