Manipulating the torch head or LED on your own poses
a risk to the safety of the flashlight and is not permitted.

3.6 Replacing the protective disc

The LED housing is protected by the surrounding housing
head and an additional protective disc, which is located
over the opening where the beam is emitted. The disc is
made of high-quality material. Should, however, the disc
break, it is possible to replace it. To do this grasp the body
of the Lite-Ex PL 10e and the ring switch and then carefully
unscrew the lamp head by turning it anti-clockwise. To
unscrew the lamp head from the LED housing use an Allen
key (AF4) to secure the LED housing in place (see Fig. 2)
and unscrew the lamp head. The protective disc can now
be replaced (only use original ecom protective disc). The
LED housing should then be cleaned thoroughly (Please
observe point 5) and the sealing ring checked for signs of
damage. If the sealing ring exhibits any damage, it should
also be replaced (the sealing ring is set in a groove under
the protective disc). When replacing the lamp head on
the LED housing make sure the seal and disc are seated
properly. After assembly no part of the seal should be
visible through the opening where the beam is emitted. If
the LED housing or lens has been damaged, the flashlight
should be sent to the manufacturer for repair.

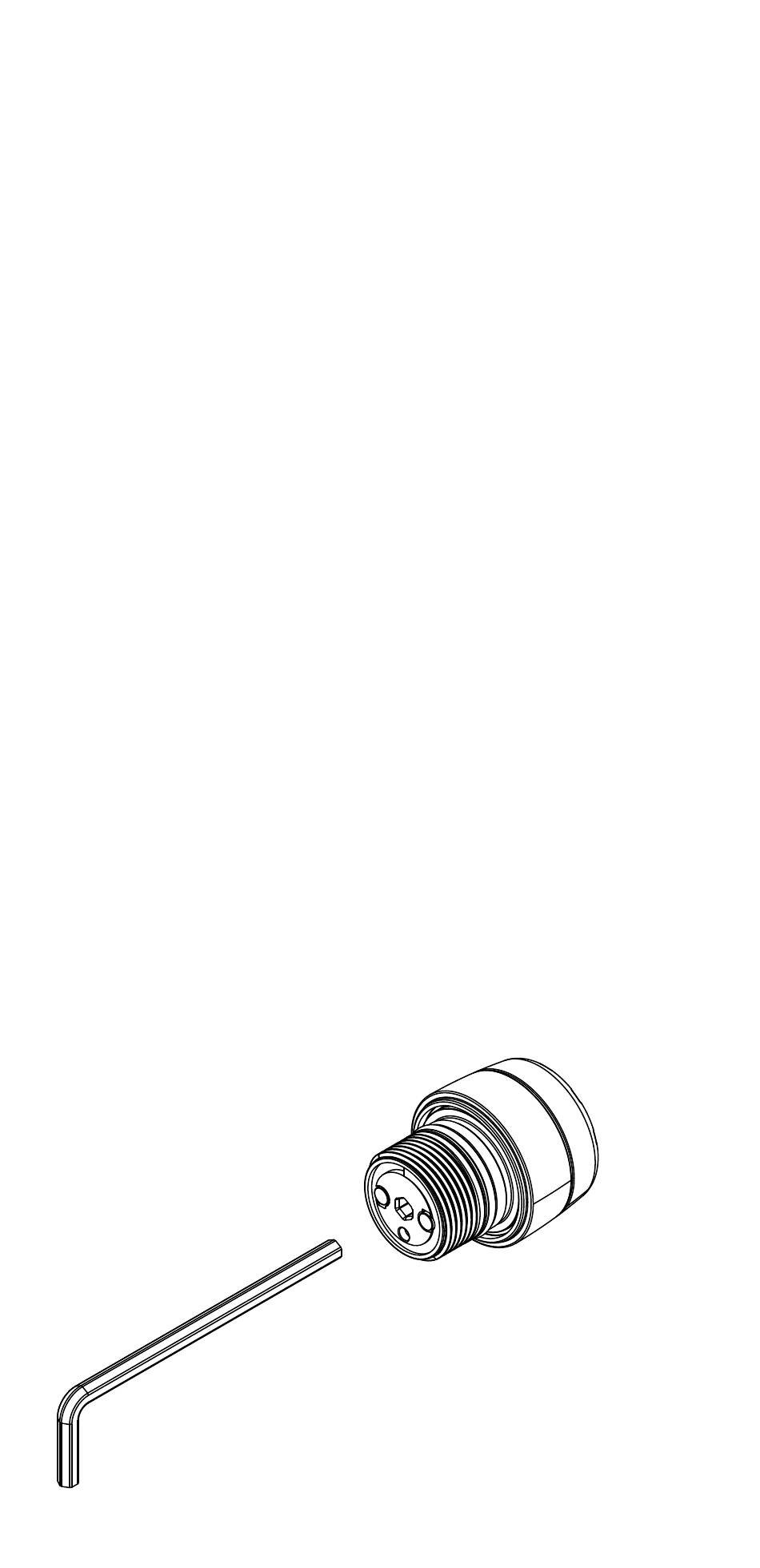

(Fig. 2)
