Installation
1. Take off the cover of Smart ATO nano controller and x it on
tank/sump with the holder.
2. Mount the sensor with the magnet at the normal water level (with
the water level reaching the lower one) . If the cable is too long,
push it back into the main body.
3. Cut the tube to a proper length. Connect the water inlet tube with
the Pre lter and put it in the water.
4. Connect water outlet tube and insert it into the holder.
5. Connect the white part of the Anti-Siphon Valve to the end of the
tube and keep it out of water.
6. Put the cover back on Smart ATO nano controller and x the tube
with the hole on the side of the cover.
7. Connect power and do one-time lling to check there is no water
dripping (forward siphon) after the pump stops.
8. Unplug and plug the power adapter back in for reset.
*Please set the sensor away from the water outlet to avoid bubble
interference.

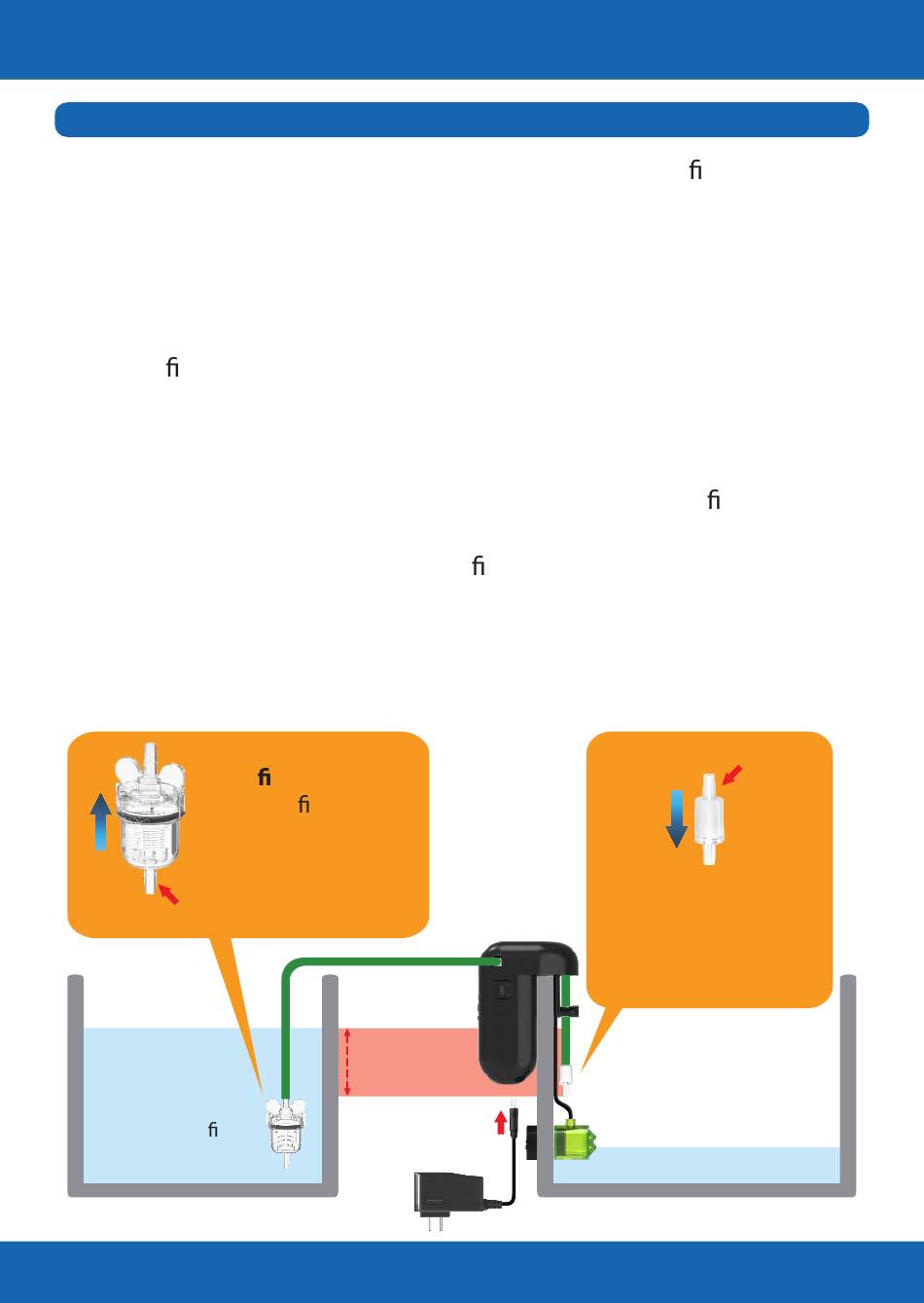

Pre lter :
The Pre lter must
be installed before
the inlet of the
diaphragm pump.
Water Inlet
Pre lter
Reservoir
Anti-Siphon
Pressure
3
*
Water Inlet
Anti-Siphon Valve :
The white part is
water inlet. Keep it
always out of water.
Anti-Siphon Valve
Optical Level Sensor
Tank/Sump
