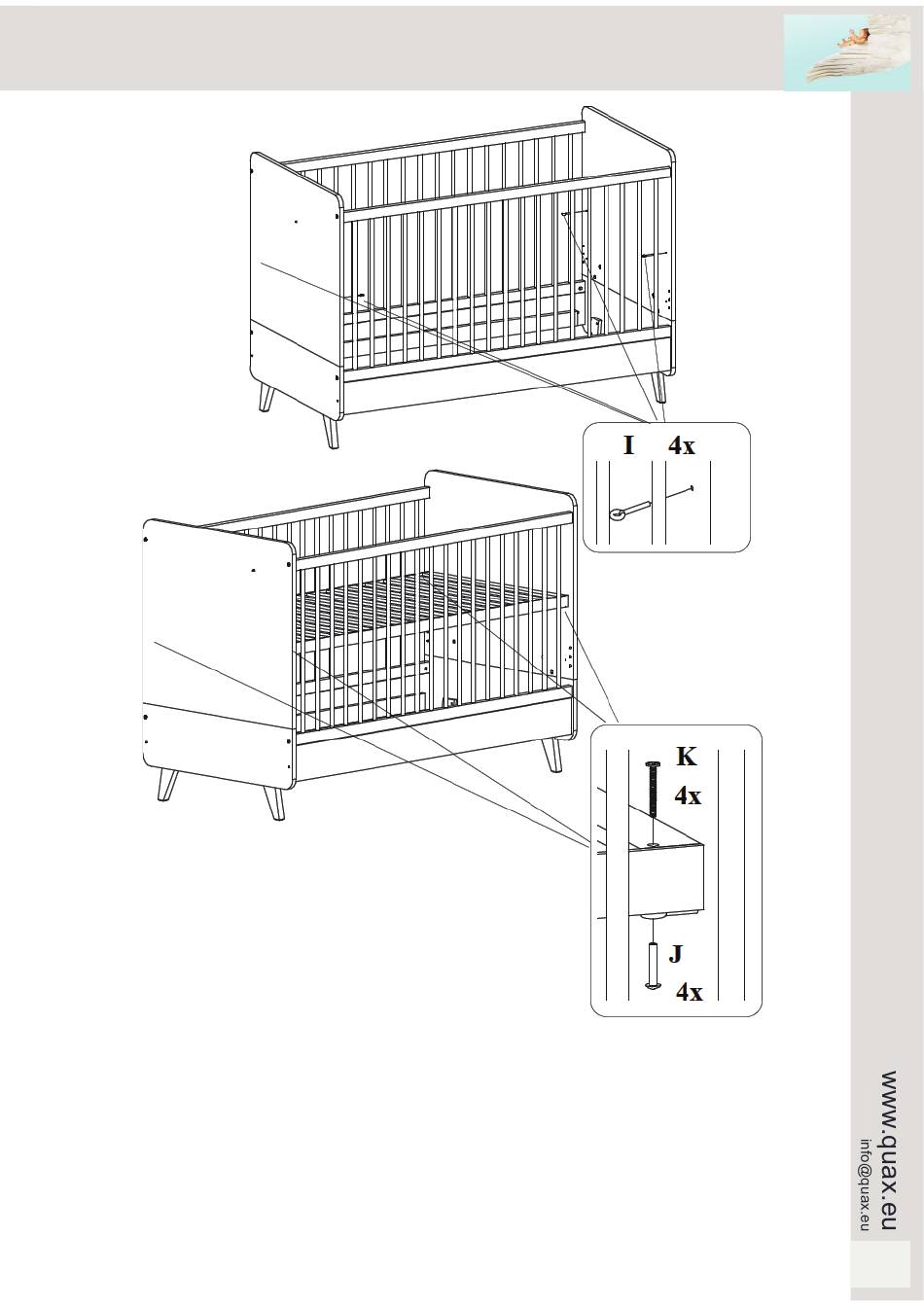

Step 4.6 : Use the step 4.5 part, the slatted frame P6, four eye pins I, four nuts J and four bolts K
Push the eye pins (I) into the drillings of the head sides. Attention : use holes at the same height. Place
the bottom (P6) on the eye pins of the head sides. Push the nuts (J) through the eye pins and the drillings
at the bottom of the slatted frame. Push the bolts (K) through the holes on top of the bottom and tighten
in the nuts.
Step 4.7 : Changing the bottom position
Loosen the bolts (K) and remove the bottom. Move the eye pins (I) to another position at the same height
and repeat step 4.6.
