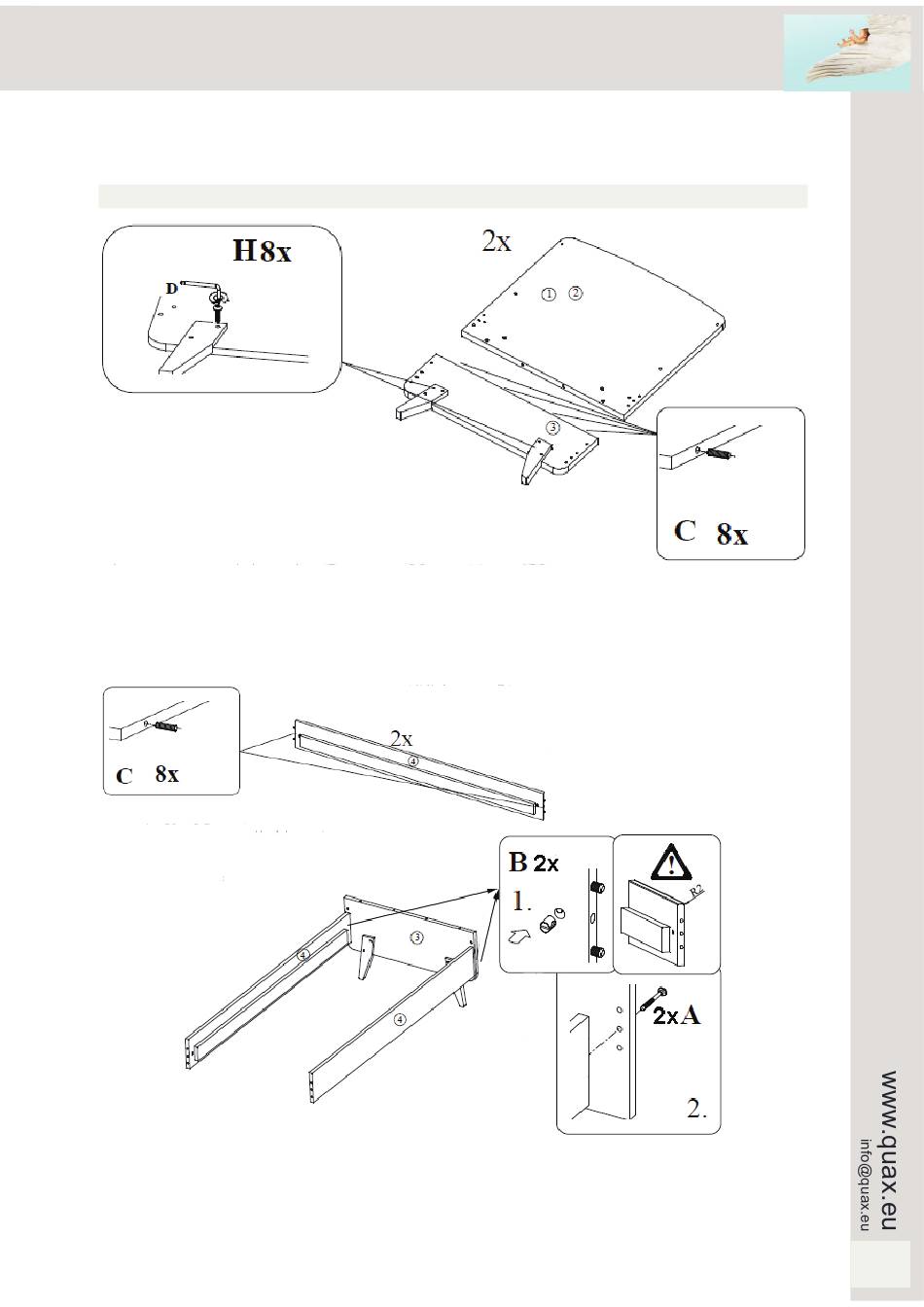

4. Assembling the babybed
Step 4.1 : Use both lower sides P3, the feet U and V, eight bolts H and eight wooden dowels C
Place the feet (U and V) on the holes of the lower sides. Push two bolts (H) into the drillings of each leg
and tighten them in the nuts on the lower sides (P3). Push four wooden dowels (C) into the drillings on top
of the lower sides.
Step 4.3 : Use the parts from step 1 and 2, two cylindrical nuts B and two bolts A.
Push a cylindrical nut (B) into the provided drilling on the end of a bedside (P4). Repeat with the other
bedside. Press the bedsides with their wooden dowels into the holes of a lower side (P3). Push the bolts
(A) into the drillings on the outside of the lower side and tighten them into the bedsides.
Omvormbaar kinderbed 140x70 cm
Umwandelbares Kinderbett 140x70 cm
Lit bébé convertible 140x70 cm
Convertible baby cot 140x70 cm
Step 4.2 : Use both bedsides P4
and eight wooden dowels C.
Push two wooden dowels (C) into
the drillings at the ends of a bedside
(P4).
