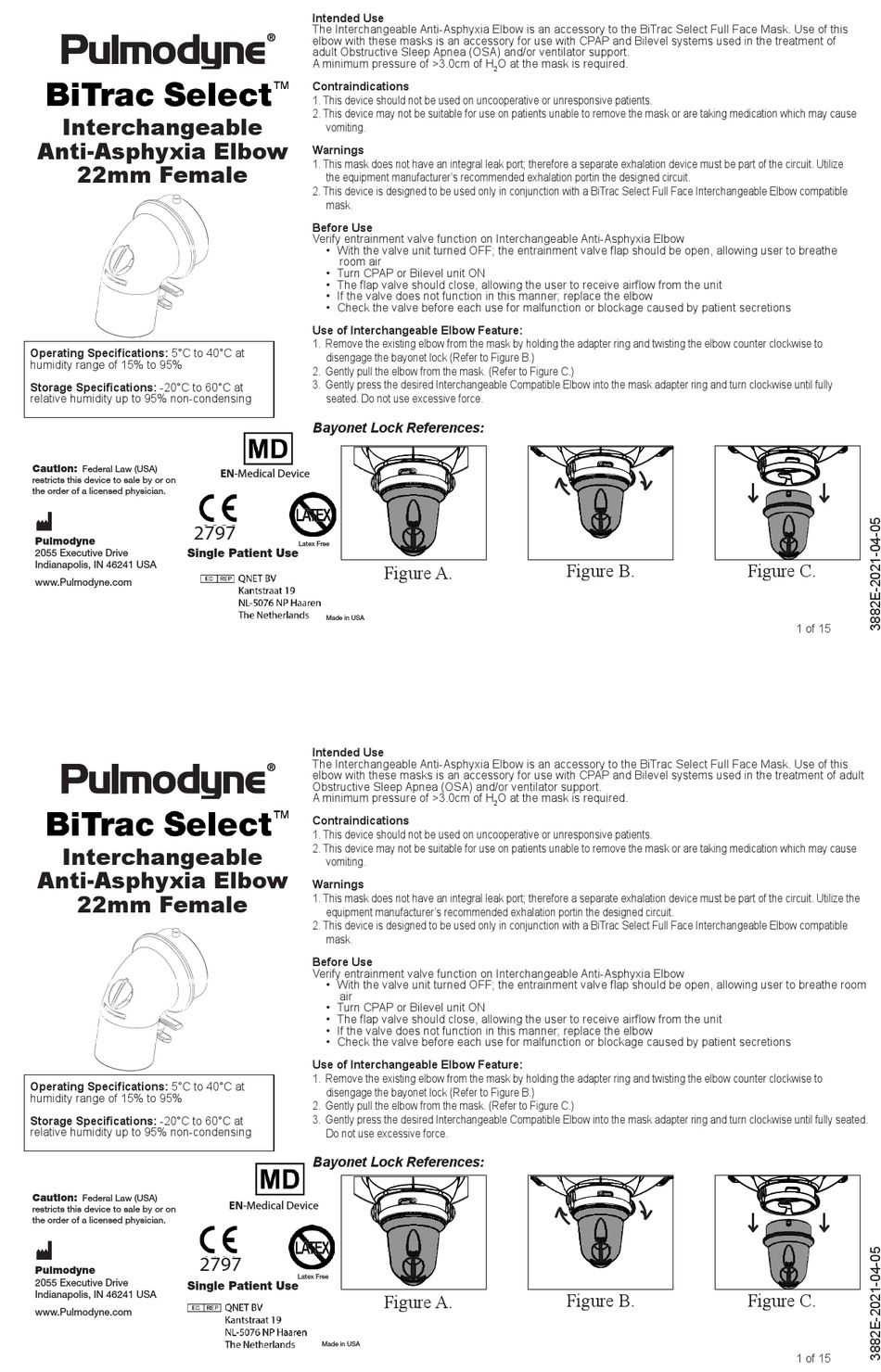

Intended Use
The Interchangeable Anti-Asphyxia Elbow is an accessory to the BiTrac Select Full Face Mask. Use of this
®
elbow with these masks is an accessory for use with CPAP and Bilevel systems used in the treatment of
adult Obstructive Sleep Apnea (OSA) and/or ventilator support.
A minimum pressure of >3.0cm of H
Contraindications
1. This device should not be used on uncooperative or unresponsive patients.
2. This device may not be suitable for use on patients unable to remove the mask or are taking medication which may cause
vomiting.
Warnings
1. This mask does not have an integral leak port; therefore a separate exhalation device must be part of the circuit. Utilize
the equipment manufacturer's recommended exhalation portin the designed circuit.
2. This device is designed to be used only in conjunction with a BiTrac Select Full Face Interchangeable Elbow compatible
mask.
Before Use
Verify entrainment valve function on Interchangeable Anti-Asphyxia Elbow
• With the valve unit turned OFF; the entrainment valve flap should be open, allowing user to breathe
room air
• Turn CPAP or Bilevel unit ON
• The flap valve should close, allowing the user to receive airflow from the unit
• If the valve does not function in this manner; replace the elbow
• Check the valve before each use for malfunction or blockage caused by patient secretions
Use of Interchangeable Elbow Feature:
1. Remove the existing elbow from the mask by holding the adapter ring and twisting the elbow counter clockwise to
disengage the bayonet lock (Refer to Figure B.)
2. Gently pull the elbow from the mask. (Refer to Figure C.)
3. Gently press the desired Interchangeable Compatible Elbow into the mask adapter ring and turn clockwise until fully
seated. Do not use excessive force.
Bayonet Lock References:
EN-Medical Device
Latex Free
Made in USA
Intended Use
The Interchangeable Anti-Asphyxia Elbow is an accessory to the BiTrac Select Full Face Mask. Use of this
®
elbow with these masks is an accessory for use with CPAP and Bilevel systems used in the treatment of adult
Obstructive Sleep Apnea (OSA) and/or ventilator support.
A minimum pressure of >3.0cm of H
Contraindications
1. This device should not be used on uncooperative or unresponsive patients.
2. This device may not be suitable for use on patients unable to remove the mask or are taking medication which may cause
vomiting.
Warnings
1. This mask does not have an integral leak port; therefore a separate exhalation device must be part of the circuit. Utilize the
equipment manufacturer's recommended exhalation portin the designed circuit.
2. This device is designed to be used only in conjunction with a BiTrac Select Full Face Interchangeable Elbow compatible
mask.
Before Use
Verify entrainment valve function on Interchangeable Anti-Asphyxia Elbow
• With the valve unit turned OFF; the entrainment valve flap should be open, allowing user to breathe room
air
• Turn CPAP or Bilevel unit ON
• The flap valve should close, allowing the user to receive airflow from the unit
• If the valve does not function in this manner; replace the elbow
• Check the valve before each use for malfunction or blockage caused by patient secretions
Use of Interchangeable Elbow Feature:
1. Remove the existing elbow from the mask by holding the adapter ring and twisting the elbow counter clockwise to
disengage the bayonet lock (Refer to Figure B.)
2. Gently pull the elbow from the mask. (Refer to Figure C.)
3. Gently press the desired Interchangeable Compatible Elbow into the mask adapter ring and turn clockwise until fully seated.
Do not use excessive force.
Bayonet Lock References:
EN-Medical Device
