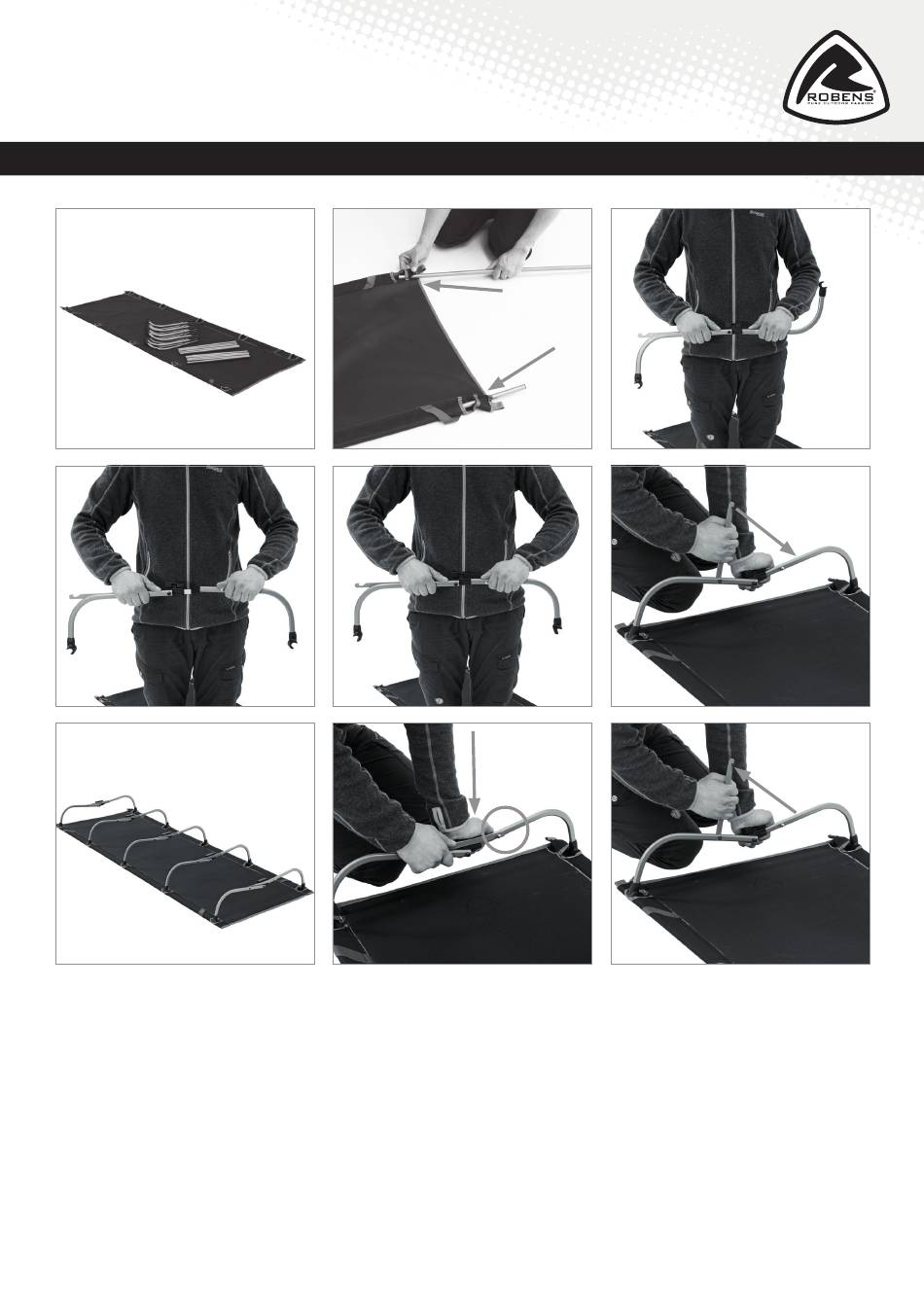

UK · Assembling the Robens Settler Bed
1 Contents: 5 legs, 2 side poles, 1 bed fabric
2 Assemble the two long poles and push one into each side sleeve.
3 Unfold the 5 legs.
4 Pull the leg pole apart and rotate one side and reconnect with both parts facing the same direction.
5 Place the leg so it connects to the poles on the side of the bed.
Push down onto the central black joint and move the locking lever until it engages with the stud to lock the leg
into place.
6 Repeat this until all five legs are connected to the bed.
Disassemble
7 Push down onto the central black joint until the locking lever unlocks from the stud.
Move the locking lever upwards and remove the leg from the bed frame.
1 1
4 a 4 a
6 6
2 2
4 b 4 b
7 a 7 a
3 3
5 5
7 b 7 b
