5. Press PROG push-button of RCR-01 device and then release it. LED red diode in the receiver
switches on (signal pulsates), and then switches off - THE SENSOR IS ADDED. Wait until LED
diode in RCR-01 device switches off.
An exemplary programming procedure. The procedure for the rest of radio EXTA FREE transmitters
is analogous.

BATTERY CHANGE

Battery discharge status is signalled by several LED red diode flashes during transmis-
sion time.

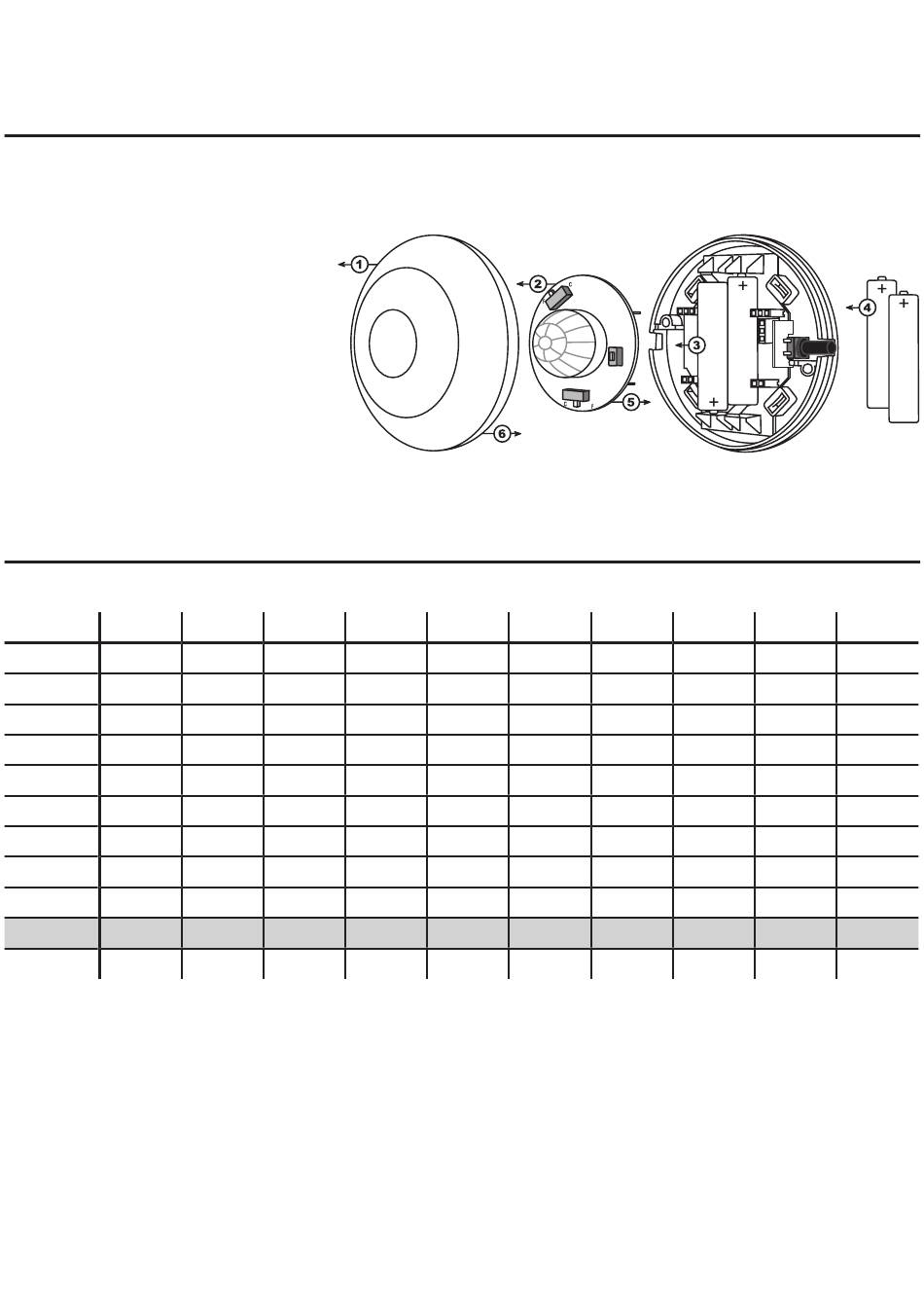

1. Remove the upper cover of
the transmitter.
2. Remove the upper printed-
circuit board.
3. Remove the batteries.
4. Mount new
Watch battery polarisa-
tion marked on the latch.
Wrong battery mounting
may cause device dam-
age.
5. Mount the upper printed-circuit board inserting the pins into the connectors.
6. Mount the upper cover's latches into the latches of the base.
COOPERATION AND OPERATING RANGE
ROP-01
RNK-02 180 m
RNK-04 180 m
P-256/8 230 m
P-257/2 (4) 180 m
RNМ-10 230 m
RNP-01 160 m
RNP-02 160 m
RNL-01 160 m
RTN-01 200 m
RCR-01 160 m
RXМ-01 230 m
* - 1-channel transmitters do not cooperate with roller blind controllers.
CAUTION: The given range concerns open area - an ideal condition without any natural or artificial obstacles.
If there are some obstacles between a transmitter and a receiver, it is advisable to decrease the range ac-
cording to: wood and plaster: from 5 to 20 %, bricks: from 10 to 40 %, reinforced concrete: from 40 to 80 %,
metal: from 90 to 100%, glass: from 10 to 20 %, Over- and underground medium and high electrical power
lines, radio and television transmitters, GSM transmitters set close to a device system have also a negative
influence on the range.
batteries.
ROP-02 ROB-01 SRP-02
200 m 200 m 200 m
200 m 200 m 200 m
250 m 250 m 250 m
200 m 200 m 200 m
250 m 250 m 250 m
180 m 180 m 180 m
180 m 180 m 180 m
180 m 180 m
200 m 200 m 200 m
180 m 180 m
250 m 250 m 250 m
SRP-03 RWG-01 ROМ-01
200 m 250 m
200 m 250 m
250 m 300 m
200 m 250 m
250 m 300 m
180 m 200 m
180 m 200 m
-* -* 200 m
200 m 250 m
-* -* 200 m
250 m 300 m
ROМ-10 RDP-01
250 m 250 m 180 m
250 m 250 m 180 m
300 m 300 m 230 m
250 m 250 m 180 m
300 m 300 m 230 m
200 m 200 m 160 m
200 m 200 m 160 m
200 m 200 m 160 m
250 m 250 m 200 m
200 m 200 m 160 m
300 m 300 m 230 m
RTN-01
250 m
250 m
300 m
250 m
300 m
200 m
200 m
200 m
250 m
200 m
300 m
