MOUNTING
The sensor can be mounted in any place by means of
double-sided adhesive tape or wall plugs 5x(3x30) mm.
Mounting by means of wall plugs:

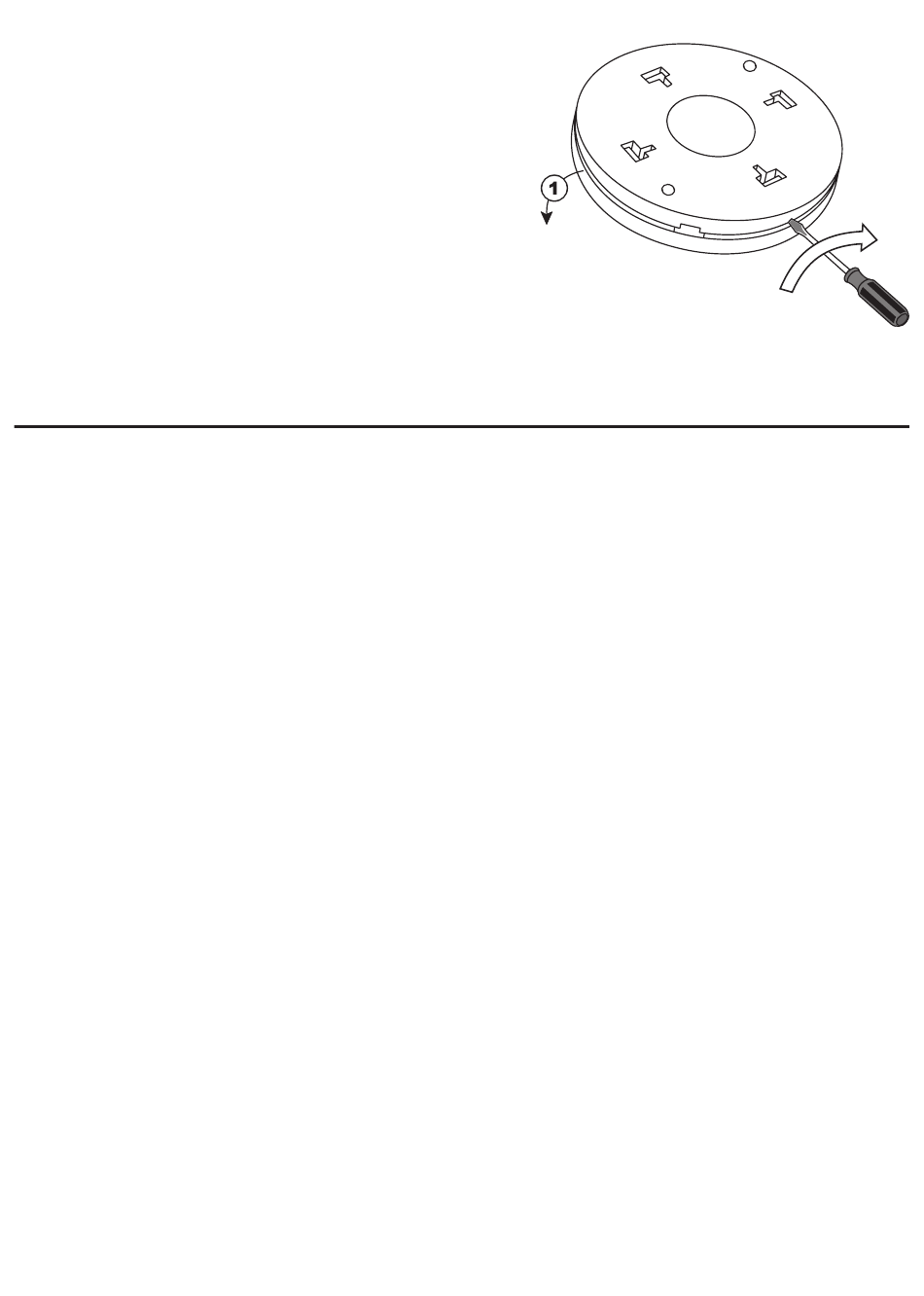

1. Remove the upper cover - to do it put a screwdriv-
er into a slot between the cover and the base and
switch it lifting up the cover at the same time.
2. Choose a place on the wall to mount the RCR-01 de-
vice, make two holes corresponding mounting holes
from the transmitter's base.
3. Set wall plugs in the holes.
4. Fix the base by means of tightening screws into wall
plugs.
5. Place the upper cover's latches into the latches of the base.
CAUTION: The device has factory mounted batteries secured with special separator. Before
the first device use remove the separator.
PROGRAMMING OF RECEIVERS
Mode 1. Motion sensor (operation modes' switches in C-C position)
In this mode the receiver should be programmed to operate in time mode; time should be adjusted
to 15 seconds. When there is a movement within detection area the device sends a signal to the
receiver every 10 seconds. After a signal has been sent, adjusted time t is counted again.
CAUTION: After each pressing of a push-button in a sensor, there are 10 seconds to start
the next programming step. After 10 seconds LED diode switches off in the sensor and
RCR-01 device starts usual operation (programming procedure must be started again.
1. Press PROG push-button of RCR-01, next release the push-button. LED red diode switches on
under the lens (constant signal).
2. Press PROG push-button to adjust the receiver to programming mode. LED red diode in the
receiver switches on (constant signal).
3. Press PROG push-button of RCR-01 device and then release it. LED red diode in the receiver
switches on (first signal pulsates, next the signal is constant).
4. Press PROG push-button of RCR-01 device and then release it. LED red diode in the receiver
switches on (signal pulsates), and then switches off - THE SENSOR IS ADDED. Wait until LED
diode in RCR-01 device switches off.
Mode 2. Motion sensor with twilight switch (operation modes' switches in F-F position).
In this mode the receiver should be programmed to operate in monostable mode. When there is a
movement within detection area the sensor sends a switch on signal to the receiver.
The sensor sends a switch off signal after 20 seconds from the moment of no movement in the
detection area.
CAUTION: After each pressing of a push-button in a sensor, there are 10 seconds to start
the next programming step. After 10 seconds LED diode switches off in the sensor and
RCR-01 device starts usual operation (programming procedure must be started again.
1. Press PROG push-button of RCR-01device, next release the push-button. LED red diode switch-
es on under the lens (constant signal).
2. Press PROG push-button of RCR-01 device again for a longer time.
3. Press PROG pushbutton to adjust the receiver to the programming mode. LED red diode in the
receiver switches on (constant signal).
4. Release PROG pushbutton of RCR-01 device. LED red diode in the receiver switches on (first
signal pulsates, next the signal is constant).
