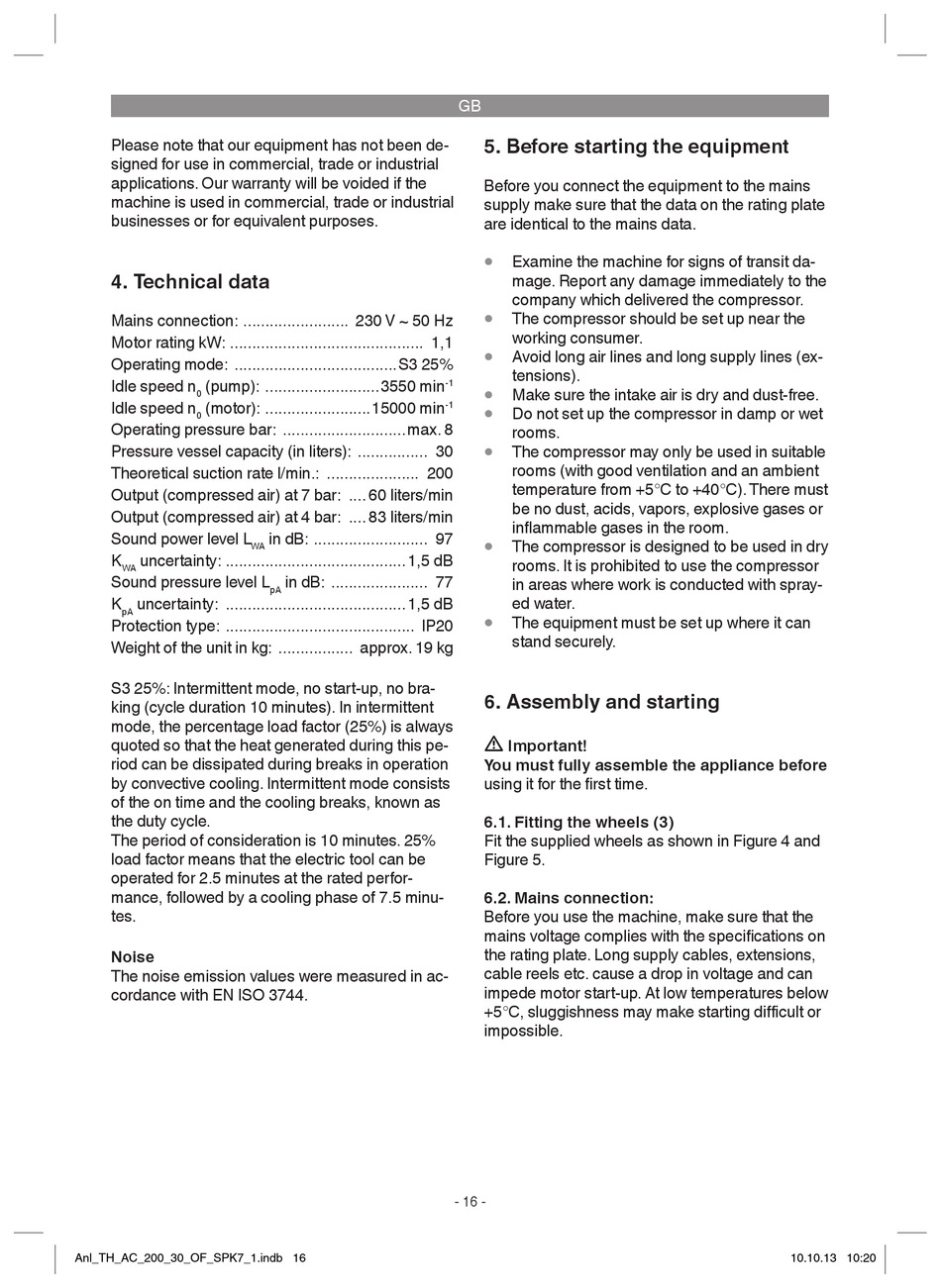

Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.

4. Technical data

Mains connection: ........................ 230 V ~ 50 Hz
Motor rating kW: ............................................ 1,1
Operating mode: .....................................S3 25%
Idle speed n (pump): ..........................3550 min
0
Idle speed n (motor): ........................15000 min
0
Operating pressure bar: ............................max. 8
Pressure vessel capacity (in liters): ................ 30
Theoretical suction rate l/min.: ..................... 200
Output (compressed air) at 7 bar: .... 60 liters/min
Output (compressed air) at 4 bar: .... 83 liters/min
Sound power level L
WA
K uncertainty: ......................................... 1,5 dB
WA
Sound pressure level L
K uncertainty: ......................................... 1,5 dB
pA
Protection type: ........................................... IP20
Weight of the unit in kg: ................. approx. 19 kg
S3 25%: Intermittent mode, no start-up, no bra-
king (cycle duration 10 minutes). In intermittent
mode, the percentage load factor (25%) is always
quoted so that the heat generated during this pe-
riod can be dissipated during breaks in operation
by convective cooling. Intermittent mode consists
of the on time and the cooling breaks, known as
the duty cycle.
The period of consideration is 10 minutes. 25%
load factor means that the electric tool can be
operated for 2.5 minutes at the rated perfor-
mance, followed by a cooling phase of 7.5 minu-
tes.
Noise
The noise emission values were measured in ac-
cordance with EN ISO 3744.
Anl_TH_AC_200_30_OF_SPK7_1.indb 16
-1
-1
in dB: .......................... 97
in dB: ...................... 77
pA
GB

5. Before starting the equipment

Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
•
Examine the machine for signs of transit da-
mage. Report any damage immediately to the
company which delivered the compressor.
•
The compressor should be set up near the
working consumer.
•
Avoid long air lines and long supply lines (ex-
tensions).
•
Make sure the intake air is dry and dust-free.
•
Do not set up the compressor in damp or wet
rooms.
•
The compressor may only be used in suitable
rooms (with good ventilation and an ambient
temperature from +5°C to +40°C). There must
be no dust, acids, vapors, explosive gases or
inflammable gases in the room.
•
The compressor is designed to be used in dry
rooms. It is prohibited to use the compressor
in areas where work is conducted with spray-
ed water.
•
The equipment must be set up where it can
stand securely.

6. Assembly and starting

m Important!
You must fully assemble the appliance before
using it for the first time.
6.1. Fitting the wheels (3)
Fit the supplied wheels as shown in Figure 4 and
Figure 5.
6.2. Mains connection:
Before you use the machine, make sure that the
mains voltage complies with the specifications on
the rating plate. Long supply cables, extensions,
cable reels etc. cause a drop in voltage and can
impede motor start-up. At low temperatures below
+5°C, sluggishness may make starting difficult or
impossible.
