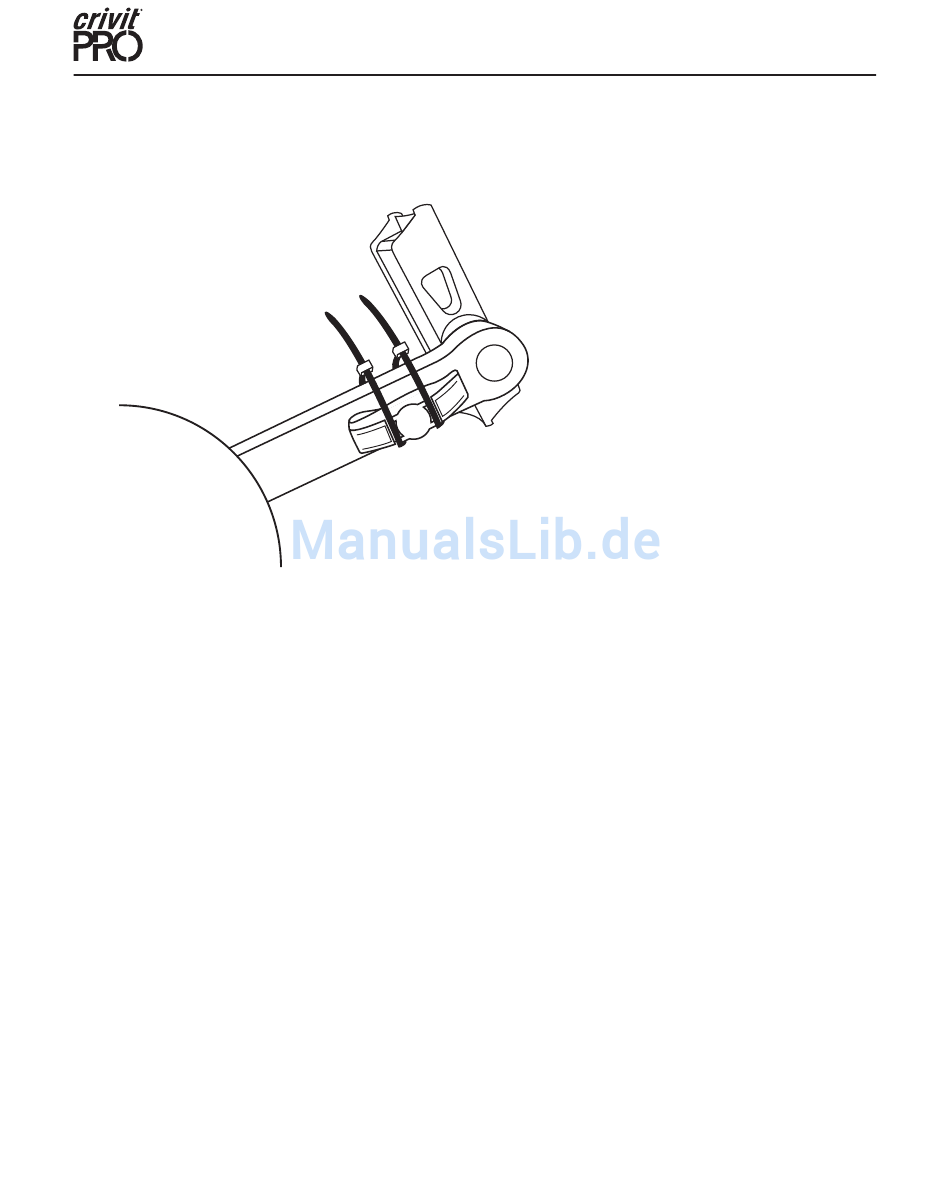

♦ If the pedal frequency magnet does not fit onto your bicycle's
pedal crank you can also use a cable binder to fix it.
♦ Fit the magnets and the sensor on the bicycle frames so that the
centre of the magnet is facing the sensor zone on the speed and
pedal frequency sensor when the rear wheel or pedal crank is
rotated. The distance between the magnets and the sensor should
be between 2 and 5 mm.
♦ First adapt the distance to the pedal frequency magnet by tilting the
sensor housing to the side towards the pedal frequency magnet.
♦ After this, adapt the distance between the wheel magnet and the
sensor zone by undoing the screw on the arm and swivelling it into
the right position. Fix the arm back into position by re-tightening the
screw.
│
