Light Booth Assembly - Altana BYK byko-spectra pro Kurzbedienungsanleitung

byko-spectra pro

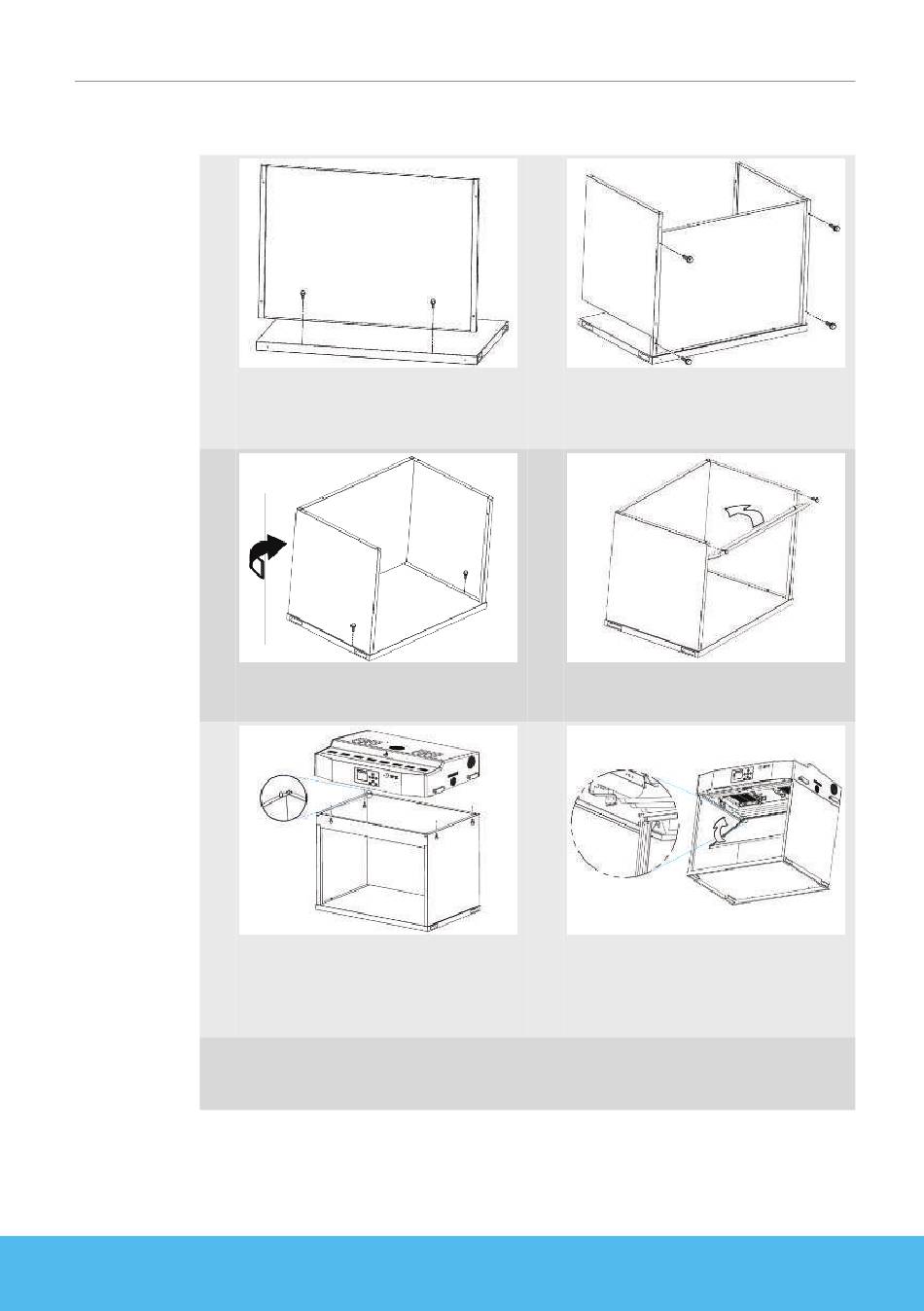

2 Light Booth Assembly

1
Fix rear panel on base plate with
hand screws.
3
Turn around booth and screw
side panels to base plate.
5
In order to position luminaire,
support from a second person is
needed. Fit luminaire in cones
and fix with screws.
Ready to plug in and turn on! The power switch I/O is on the left side - below
the display.
6
BYK-Gardner GmbH
2
Hold side panels with folding in-
wards. Insert into guide rail of
rear panel. Fix with screws.
4
Place brackets of front panel in
pins. Tilt up panel and fix.
6
Place diffuser pins in brackets,
side with complete hinge pins fa-
cing towards lamps. Snap dif-
fuser latch.
301 300 039 - 2109
