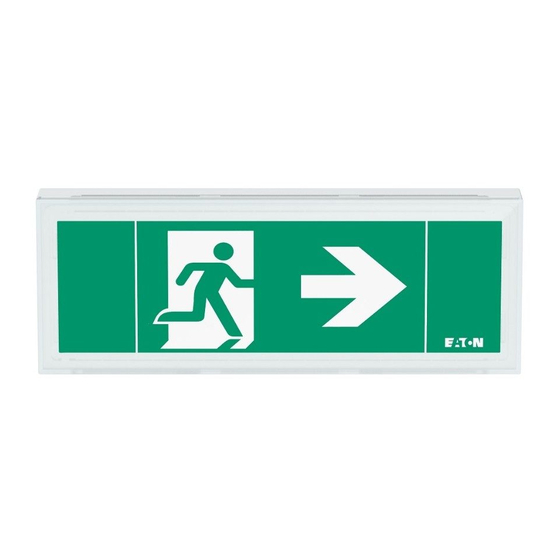

Eaton FlexiTech Exit Wall 12M CGLine+ Betriebsanleitung

Manual
Manuale / Manuel / Betriebsanleitung / Manual / Navodila / Priručnik / Uputstvo / Használati utasítás / Instrukcja
ZNO2054600 A
FlexiTech Exit Wall 12M CGLine+
231 mm
x 1 x 1
1
a
0 V
c
Drill in the honeycomb zones (IP43) or in the flexible material parts (IP66).
For honeycombs, be careful to battery location.
!
For corner fixing, use 4 screws.
04/2021
34 mm
x 1 x 1 x 2
b
In order to ensure proper aging of the product, use one of the framed cable entries.
Break a cable entry by
using a screwdriver.
1
A
Maintained Non Maintained
+ 45°C
+ 45°C
0°C
+ 5°C
(35°C max. for 10 years lifetime)
2,5 mm
PZ0
C
D
B
Before use
24h
x2
Ø 5 mm
Rigid or flexible wire
6 mm < Ø < 13,5 mm
2
