P133
Operating instructions level transmitter

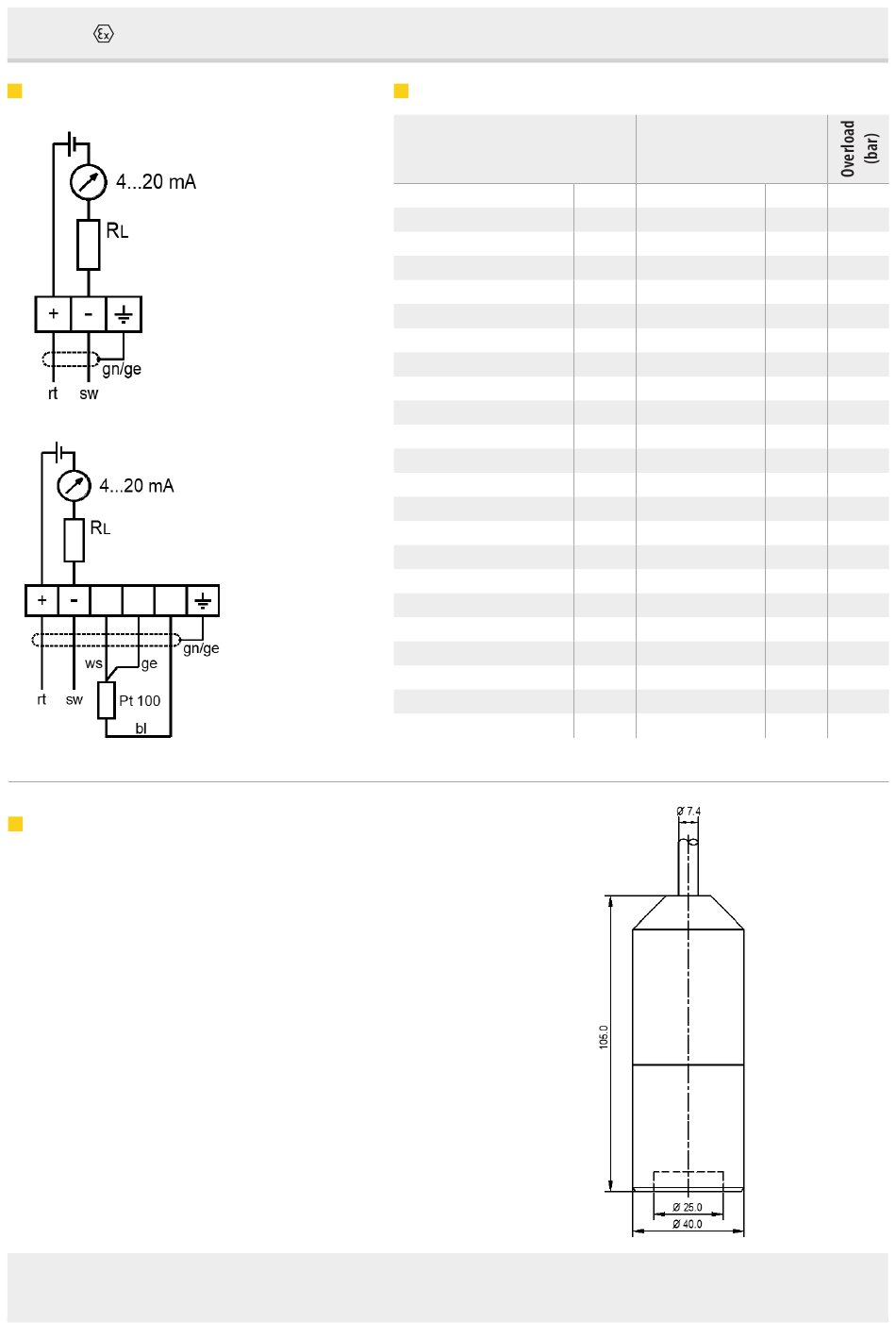

ELECTRICAL CONNECTION

rt = red
sw =black
ws =white
ge =yellow
bl =blue
gn/ge =green/yellow

TECHNICAL DATA

Range:
0...40 mbar to 0...60 bar
Output: 4 ...20 mA 2-wire
Accuracy:
≤ ± 0,2% FS ≥ 100mbar@ 25°C
Power supply: 12...30V
Ambient temp.: -20...70 °C Ex ia IIC T4 Ga
medium temp.: -20...70°C
storage temp.: -40...85 °C
Temperature coeff.: ≤ ± 0,02% FS/K
Long term stability: ≤ ± 0,2% FS p. a.
Housing: stainless steel 1.4404
Protection class:
IP 68
weigth of sensor: approx. 0,5 kg
weigth of cable: 0,5 kg / 10m
Sensor: Ceramic AL
Nöding Messtechnik GmbH • Oldenfelder Bogen 29 • D-22143 Hamburg, Germany • Tel.: +49 40 67 58 51 – 0
Fax: +49 40 67 58 51 – 49 • Internet: www.noeding-messtechnik.de • E-mail: info@noeding-messtechnik.de
RANGES
Range in bar
0...40 mbar / 0...4 kPa*
0...50 mbar / 0...5 kPa*
0...60 mbar / 0...6 kPa*
0...100 mbar / 0...10 kPa
0...160 mbar / 0...16 kPa
0...200 mbar / 0...20 kPa
0...250 mbar / 0...25 kPa
0...300 mbar / 0...30 kPa
0...400 mbar / 0...40 kPa
0...500 mbar / 0...50 kPa
0...600 mbar / 0...60 kPa
0...1 bar / 0...100 kPa
0...1,6 bar / 0...160 kPa
0...2 bar / 0...200 kPa
0...2,5 bar / 0...250 kPa
0...4 bar / 0...400 kPa
0...6 bar / 0...600 kPa
0...10 bar / 0...1 MPa
0...16 bar / 0...1,6 MPa
0...20 bar / 0...2 MPa
0...25 bar / 0...2,5 MPa
0...40 bar / 0...4 MPa
0...60 bar / 0...6 MPa
0
2 3
Range in mH20
A8 0...400 mmH20*
B0 0...500 mmH20*
A9 0...600 mmH20*
00 0...1 mH20
01 0...1,6 mH20
B1 0...2 mH20
02 0...2,5 mH20
X5 0...3 mH20
03 0...4 mH20
B7 0...5 mH20
04 0...6 mH20
05 0...10 mH20
06 0...16 mH20
B3 0...20 mH20
07 0...25 mH20
08 0...40 mH20
09 0...60 mH20
10 0...100 mH20
11 0...160 mH20
B5 0...200 mH20
12 0...250 mH20
13 0...400 mH20
14 0...600 mH20
EN
W8 -0,3/4
W0 -0,3/4
W9 -0,3/4
50 -0,3/4
51 -0,6/5
W1 -0,6/5
52 -0,6/5
66 -1/6
53 -1/6
W2 -1/6
54 -1/10
55 -1/10
56 -1/15
W3 -1/15
57 -1/15
58 -1/25
59 -1/40
60 -1/40
61 -1/40
W5 -1/40
62 -1/40
63 -1/60
64 -1/100
