5 Jahre 5-year GARANTIE warranty TECHNISCHE DATEN TECHNICAL SPECIFICATIONS 1. Elektrische Komponenten: 1. Electric Components: Eingangsspannung: 100-240V, 50/60 Hz Input Voltage: 100-240V, 50/60 Hz Nutzgrad: 10% max 2 min ein 18 min aus Duty Cycle: 10% max 2 min on 18 min off Automatische Ausschaltung, Automatic power off, energiesparend...
Seite 3

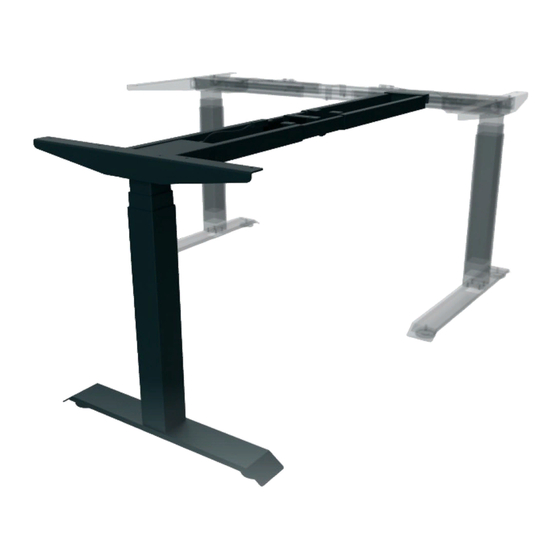

Component parts INHALT / CONTENT (Redocol e-Desk pro vorausgesetzt / Redocol e-Desk pro required) Standard height adjustable desk 90 Degree frame 11 12 -90 Degree frame parts list Nr. Bauteil/component Menge/pcs Nr. Bauteil/component Menge/pcs M6x16 Schrauben / Screws M6x10 Schrauben / Screws Feder-Unterlegscheibe / Spring washer Mittelschiene / Centre bracket Unterlegscheibe / Washer...
Seite 4
MONTAGE / ASSEMBLY INSTRUCTIONS Passen Sie die Länge des Rahmens so an, dass er der Tischplatte entspricht. Adjust the length of the top frame to match the size of the table top. Setzen Sie die Hubsäule in den Rahmen ein. Fixieren Sie die Hubsäule mit 2 M6x12 Schrau- ben und ziehen Sie anschließend die vorinstal- lierten Bolzen, mithilfe des Inbus, fest.
Seite 5
MONTAGE / ASSEMBLY INSTRUCTIONS Befestigen Sie die Tischauflage mit 2 Schrauben M6x12 - fest anziehen. Install the side brackets with 2 pcs M6x12 screws and make sure they are completely tighten. , t i Verbinden Sie das Anbauteil mit dem Basisgestell und fixieren es mit den beiden Griffschrauben.
Seite 6
MONTAGE / ASSEMBLY INSTRUCTIONS Befestigen Sie die Kontrollbox am Tisch- gestell, verbinden Sie die Kabel und orga- nisieren Sie diese mit den Kabelbindern. Mount the control box to the desk frame, connect the cables and zip the cables with the cable ties. Use Instructions Use Instructions Use Instructions...
UMPROGRAMMIERUNG / PROGRAMMING INSTRUCTIONS Erweiterung zu einem 3 Hubsäulen Gestell Convert 3 motors to work together 1. Drücken Sie die Tasten "Auf", "Ab" und "3" gleichzeitig. Im Display er- 1. Connected to third leg scheint und dann 2. Press “UP” ,”DOWN”, “3” at the same time, the handset will display 2.
