INDEX

1. DEVICE COMPONENTS ...................................... 18

2. TECHNICAL DATA .............................................. 18

3. DESCRIPTION AND CORRECT USE OF KEYPAD .... 19
4. MAINTENANCE AND CLEANING OF THE DEVICE ... 19
5. APP CONTROL .................................................. 19
6. QUICK GUIDE .................................................... 22
7. ERROR DESCRIPTION AND ELIMINATION ........... 23
8. MANUFACTURER'S WARRANTY ........................ 23

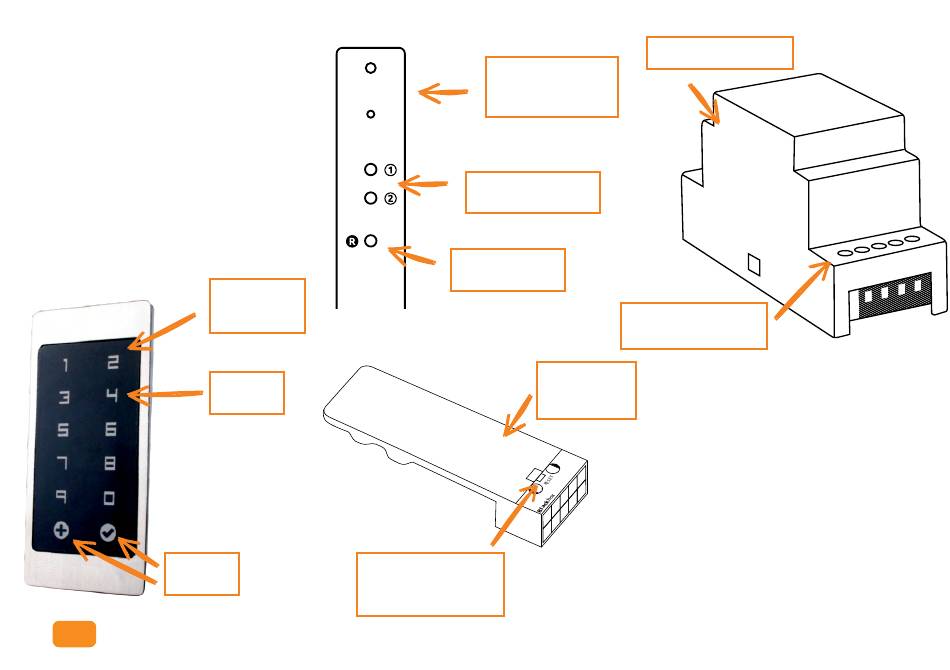

1. DEVICE COMPONENTS
The keypad:
Two function
keys
18
EN EN
Touch-sensitive
keypad
Illuminated
dial
Button »R« for factory
reset is located below the

Control unit:

Is mounted inside the
door leaf, next to the
cable transfer.
Buttons 1 and 2 don't
have a function.
Button »R«
for factory reset.
Mini control unit BBX:
Mounted inside the
door leaf.
connector.
DIN control unit:
Mounted in electrical box.
Button »R« on position 10
for factory reset.
2. TECHNICAL DATA
•
Voltage 8 – 30 V direct or alternating
•
Use: maximum 150mA
•
Number of codes: 100, of which 1 is an administrator
code
•
Length of code: optional, from 4 to 16 characters
•
2 separate relay exits (BBX mini control unit - 1 relay
exit)
•
256-bit encrypted connection to the relay unit
•
Capacitive illuminated keys
•
Installation into a door wing
•
App control/unlocking option
