TECHNICAL DATA
•
Storage capacity: 1000 fingerprints - 3 administrator's, 997
user's
•
Input power: 8-30 (VDC OR VAC)
•
Two relay outputs, max. current on a relay 3A. Encrypted
connection between the fingerprint reader and the relay unit.
•
Remote control: 433 MhZ rolling code. 4 buttons.
•
Time of triggering a relay: 2s.
•
Max. power: 1,8 W
•
Quick recognition of a fingerprint <1,2 s
•
Operating temperature: -30 ºC to +85 ºC
•
Max. operating humidity: 100 %
•
Fingerprints remain stored in case of power loss.
•
The latest generation of the capacitive fingerprint reader, 3D
fingerprinting.
•
User interface: a 3 colour LED, a beeper, a remote control.
•
Attached is a 2m cable to connect the fingerprint reader and
the relay unit.

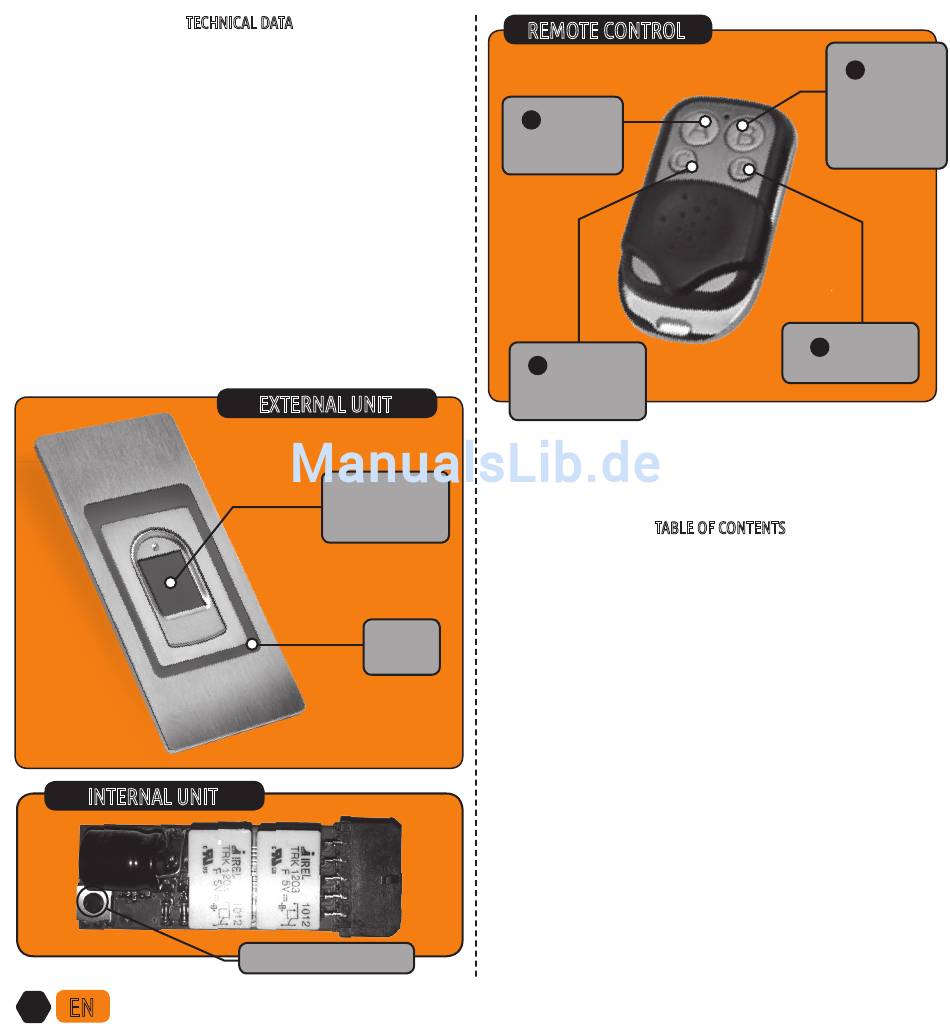

INTERNAL UNIT
EN
10

EXTERNAL UNIT

Capacitive
fingerprint
reader
3 colour
LED
Factory reset button

REMOTE CONTROL

A - Button
to add
fingerprints
- Button to
C
delete the entire
database
TABLE OF CONTENTS
1. THE FIRST STARTUP ......................................................... 11
2. PROPER USE ....................................................................... 11
3. REMOTE CONTROL .......................................................... 12
4. CHOOSING THE RELAY .................................................... 12
5. ADMINISTRATOR'S ROLE
AND ADMINISTRATOR ENROLLMENT ........................ 12
6. USER FINGER ENROLMENT ............................................ 12
7. DELETING A USER FINGERPRINT ................................ 13
8. DELETING THE ENTIRE DATABASE
(OF ADMINISTRATORS AND USERS) ............................ 13
9. LIGHT SIGNALS TABLE ..................................................... 14
10. MAINTENANCE .................................................................. 14
11. TROUBLESHOOTING ....................................................... 15
12. MANUFACTURER'S WARRANTY ................................... 15
QUICK GUIDE ..................................................................... 61
B - Button
to delete
individual
user's
fingerprint
- Button
D
to unlock
