supplied cables with your wires. The accompanying crimp connectors are weatherproof and are
equipped with heat-shrink tubing which can be sealed after assembly by, for example, carefully using
a heat gun. Please remove any cables on the connection terminal that you do not need.

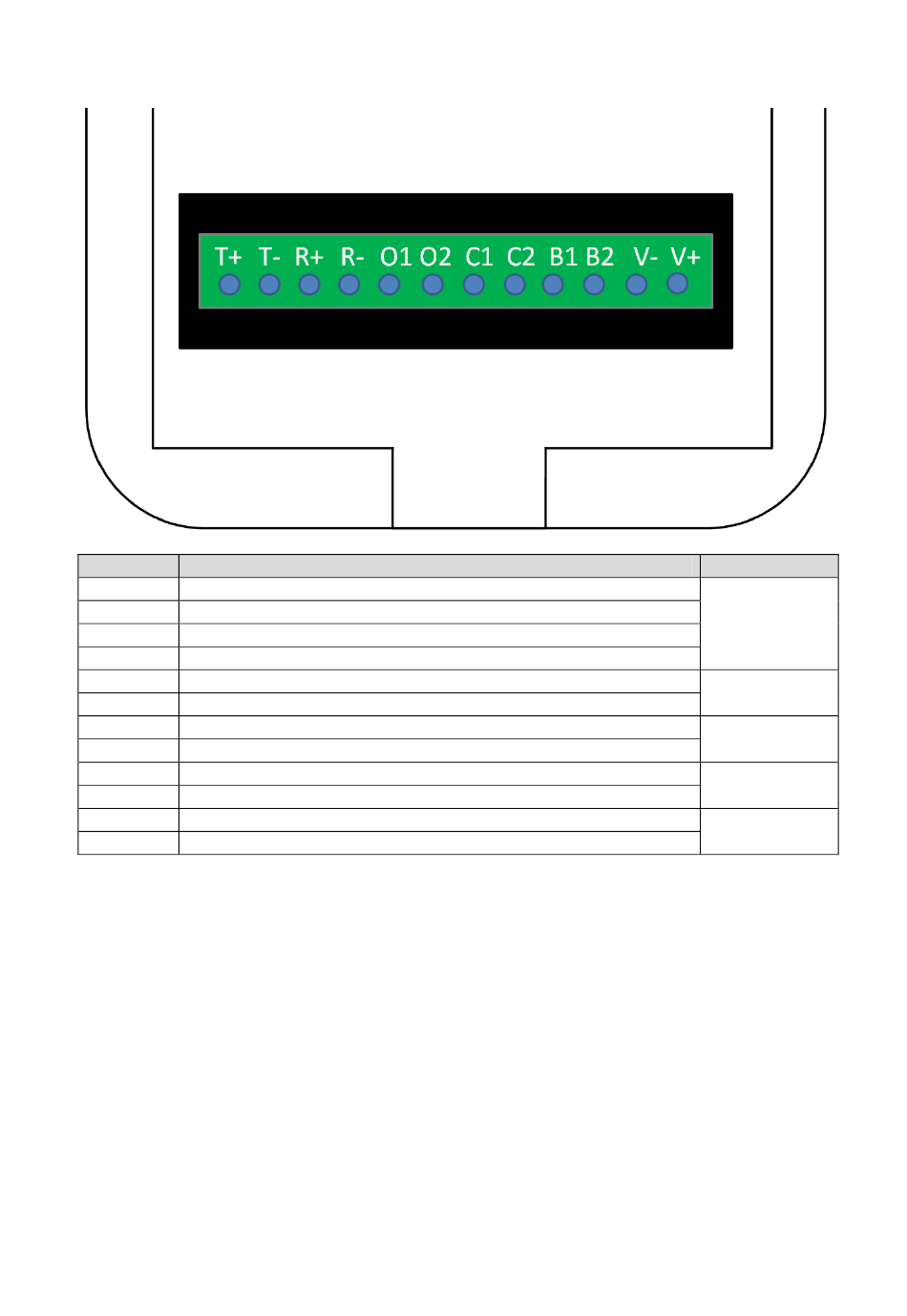

Connector Description
T+ White and orange network cable wire (Number 1, Transmit Data +)
T- Orange network cable wire (Number 2, Transmit Data -)
R+ White and green network cable wire (Number 3, Receive Data +)
R- Green network cable wire (Number 6, Receive Data -)
O1 Electric door opener (zero potential)
O2 Electric door opener (zero potential)
C1 Electric door chime (zero potential)
C2 Electric door chime (zero potential)
B1 Door-opening button (zero potential)
B2 Door-opening button (zero potential)
V- Power supply, negative pole (-)
V+ Power supply, positive pole (+)
Please take care when connecting the wires. Connecting the wires the wrong way may destroy the
video door station.
Step 10: Final assembly
Mount the video door station on the mounting plate. The video door station will click into the locking
positions intended for the mounting plate. Use the accompanying safety screw with the appropriate
tool to fix the video door station to the underside of the mounting plate.
Step 11: Activating the video door station
Switch on the power to the wires leading to the assembly location again. You can see whether you
have connected the power supply properly from the Diagnostic LED (it lights up once the power has
been connected correctly for up to five minutes and continuously in night-vision mode). The video
door station is ready for operation (booting up process, any software updates, etc.) once it has
emitted a short diagnosis sound from the integrated loudspeaker. This may last for up to 5 minutes.
Should you not hear a beep, please check the power supply. Please also check whether you have
used a wall-plug power-supply and not PoE and whether you have connected the positive pole and
negative pole to the video door station correctly.
Wire
White-orange,
orange,
white-green,
green
Purple, purple
Blue, blue
Yellow, yellow
Black, red
