BDACM1000
DESCRIPTION

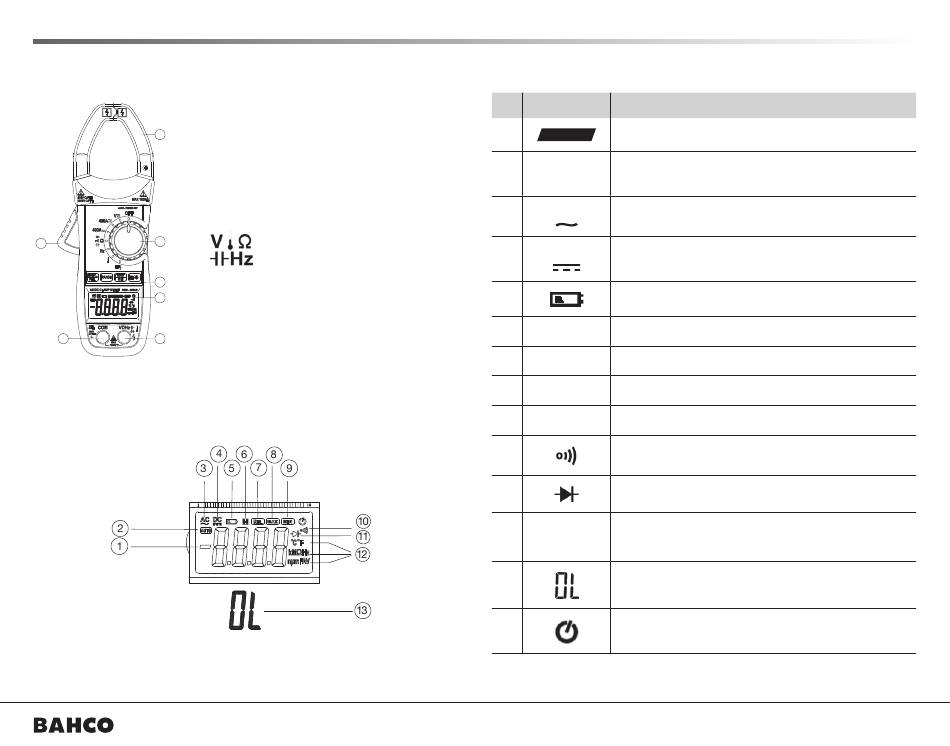

Device overview

① Clamp. Used to enclose the wire.
(Observe the direction of current flow).
1
② Rotary switch. Used to select measurement
functions.
③ Keypad. Measurement function keys.
④ LCD display. Shows measurement results
and various symbols.
⑤
2
7
Terminal for the red test lead for voltage,
3
resistance, capacitance, frequency,
4
temperature, diode test and continuity
measurements.
⑥ COM. Terminal for the black test lead as a
6 5
common reference point.
⑦ Clamp opening actuator.

LCD Display

The LCD screen is shown in Figure 2-2 and the meaning of each symbol is
described in Table 1:
No. Symbol
1 Indicates negative readings.
The device is in autorange mode, in which the device
2 AUTO
automatically selects the range with the best resolution.
AC
3 Indicates AC voltage or current.
DC
4 Indicates DC voltage or current.
5 Low battery indication.
6 H The device is in Data Hold mode.
7 REL The device is in Relative Measurement mode.
8 MAX Display maximum data.
9 MIN Display minimum data.
10 The device is in Continuity Check mode.
11 The device is in Diode Test mode.
Ω
%ºCºF KM Hz
12 Measurement units.
nμmFAV
This symbol means that the input is too high for the
13
selected range.
Auto power off function indication.
Meaning
