Universal bicycle carrier uses simple fastening
system, with a fully illuminated panel and space
for the vehicle registration plate. Tiltable for easy
trunk access.
Ideal for e-bikes, designed for 2 bicycles weighting
up to 30 kg each. The carrier is made of steel in
combination with aluminum, total load capacity is
60 kg.
Bicycle attachment to the carrier is done without
tools, it is made by attaching the frame to a holder
and tightening the wheel clips located on the base.
The mechanism uses lock so there is no risk of the
bicycle being stolen.
The carrier is attached to classic tow device ball,
where it is necessary to adjust the nut for a firm
grip, before using robust lever and a lock. The
mounted carrier with bicycles can be tilted down,
which ensures access to the luggage compart-
ment of the car.
Technical data:
mounting the carrier onto the tow bar 50 mm
panel with lights
lights connection
bicycle fixation
lock for bikes
lock on the carrier
folding mechanism
material
max. load
certification
2

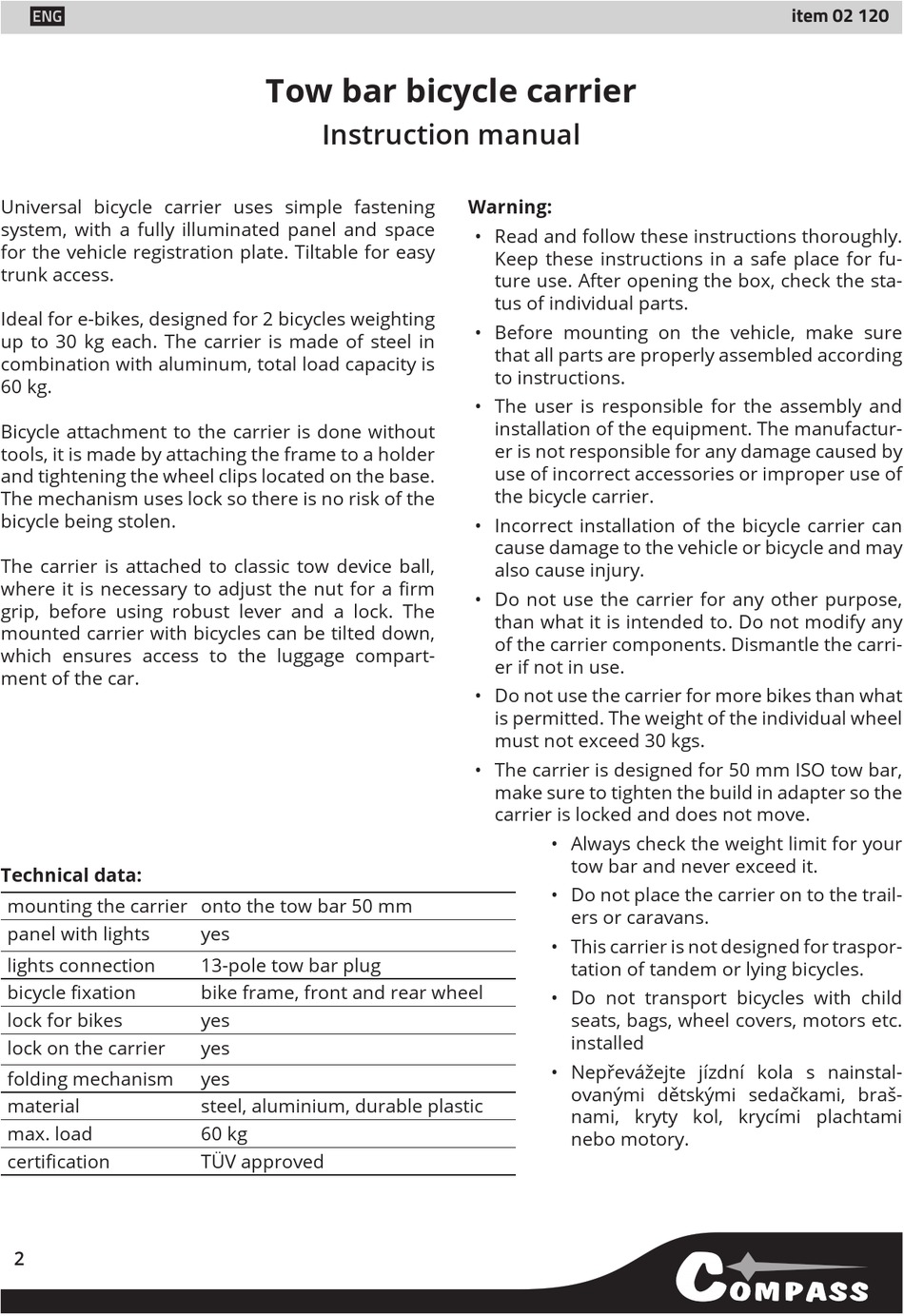

Tow bar bicycle carrier
Instruction manual
yes
13-pole tow bar plug
bike frame, front and rear wheel
yes
yes
yes
steel, aluminium, durable plastic
60 kg
TÜV approved
Warning:
• Read and follow these instructions thoroughly.
Keep these instructions in a safe place for fu-
ture use. After opening the box, check the sta-
tus of individual parts.
• Before mounting on the vehicle, make sure
that all parts are properly assembled according
to instructions.
• The user is responsible for the assembly and
installation of the equipment. The manufactur-
er is not responsible for any damage caused by
use of incorrect accessories or improper use of
the bicycle carrier.
• Incorrect installation of the bicycle carrier can
cause damage to the vehicle or bicycle and may
also cause injury.
• Do not use the carrier for any other purpose,
than what it is intended to. Do not modify any
of the carrier components. Dismantle the carri-
er if not in use.
• Do not use the carrier for more bikes than what
is permitted. The weight of the individual wheel
must not exceed 30 kgs.
• The carrier is designed for 50 mm ISO tow bar,
make sure to tighten the build in adapter so the
carrier is locked and does not move.
• Always check the weight limit for your
tow bar and never exceed it.
• Do not place the carrier on to the trail-
ers or caravans.
• This carrier is not designed for traspor-
tation of tandem or lying bicycles.
• Do not transport bicycles with child
seats, bags, wheel covers, motors etc.
installed
• Nepřevážejte jízdní kola s nainstal-
ovanými dětskými sedačkami, braš-
nami, kryty kol, krycími plachtami
nebo motory.
