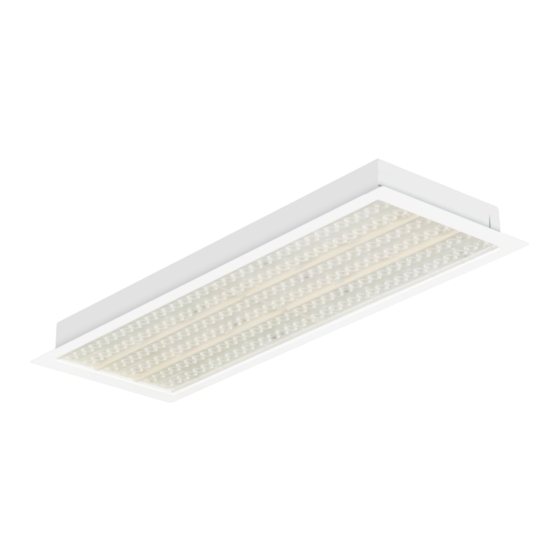

StoreSet
Recessed
RC505B
indoor
Lumen package
RC505B
LED66S / LED80S / LED90S
!
-
The luminaire shall be installed by a quali ed electritian and wired
in accordance with the latest IEE electrical regulations or the
national requirements.
-
The light source contained in this luminaire is non-user replaceable.
The driver and the light source shall only be replaced by the manufacturer or
his service agent or a similar quali ed person.
Do not touch electronic components!
-
Electronic components may be under high voltage.
Caution, risk of electric shock.
-
The luminaire shall, under no circumstance, be covered
with thermal insulation matting or similar material.
!
583-444316015727
©
Signify Holding. All rights reserved
220V
50Hz
240V
60Hz
CCT
830 / 835 / 840 /
930
IP20
kg
m
2
0.1
3.0
The light source contained in this luminaire
shall only be replaced by the manufacturer or
his service agent or a similar quali ed person.
1/8
Max.
GLOW
35 °C
WIRE
Min.
650 °C
10 °C
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
Printed in Hungary
Data subject to change without notice
Keep for future reference:
www.philips.com/lighting
Werbung
Verwandte Anleitungen für Philips StoreSet Recessed RC505B
Inhaltszusammenfassung für Philips StoreSet Recessed RC505B
- Seite 1 The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar quali ed person. Printed in Hungary 583-444316015727 Data subject to change without notice © Signify Holding. All rights reserved Keep for future reference: www.philips.com/lighting...
- Seite 2 Dimensions in mm 215,5 Only for Dali version (Lay-in) advised 250 mm...
- Seite 3 DALI Wieland (W) PSU BST14i female connector / BST14i male connector Connector GST18i3, 3 pole, male Through wiring 220V Power 240V Connector GST18i3, 3 pole, male Connector GST18i3, 3 pole, female Only use a soft cloth. EP/Resistor 20,5 kOhm 0,6W 1% CUT LED66S/LED80S/LED90S LED66S/LED80S/LED90S LED66S/LED80S/LED90S...
- Seite 5 GB - Disconnect before servicing DK - Frakobl, før service IT - Toglieretensioneprima di fare manutencione FR - Mettrehors tension avantintervention NO - Koble fra før service ES - Desconectarantes de manipular DE - Offnennurspannungsfrei FI - Irrota pistoke ennen huoltoa SE - Brytströmmenförelampbyte NL - Stroom afsluiten voor onderhoud CZ - Před servisem se odpojte...
- Seite 6 Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty.
- Seite 7 Ürünlerin saklanması, kurulumu, kullanımı, çalıştırılması ve bakımı, ürünün kullanım ömrü boyunca güvenli kullanımının sağlanması amacıyla tam olarak bu kılavuzdaki ve / veya tarafımızdan sağlanan diğer talimatlara uygun biçimde gerçekleştirilmelidir. Söz konusu talimatlara uyulmaması, ürünle ilgili garanti hakkınızı geçersiz kıllar. Teknik çizimde yanında sıkkma torku değeri belirtilen cıvatalar kalibre edilmiş bir tork anahtarı kullanılarak sıkılmalıdır. Önceden takılmış...
- Seite 8 © 2021 Signify Holding All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.
