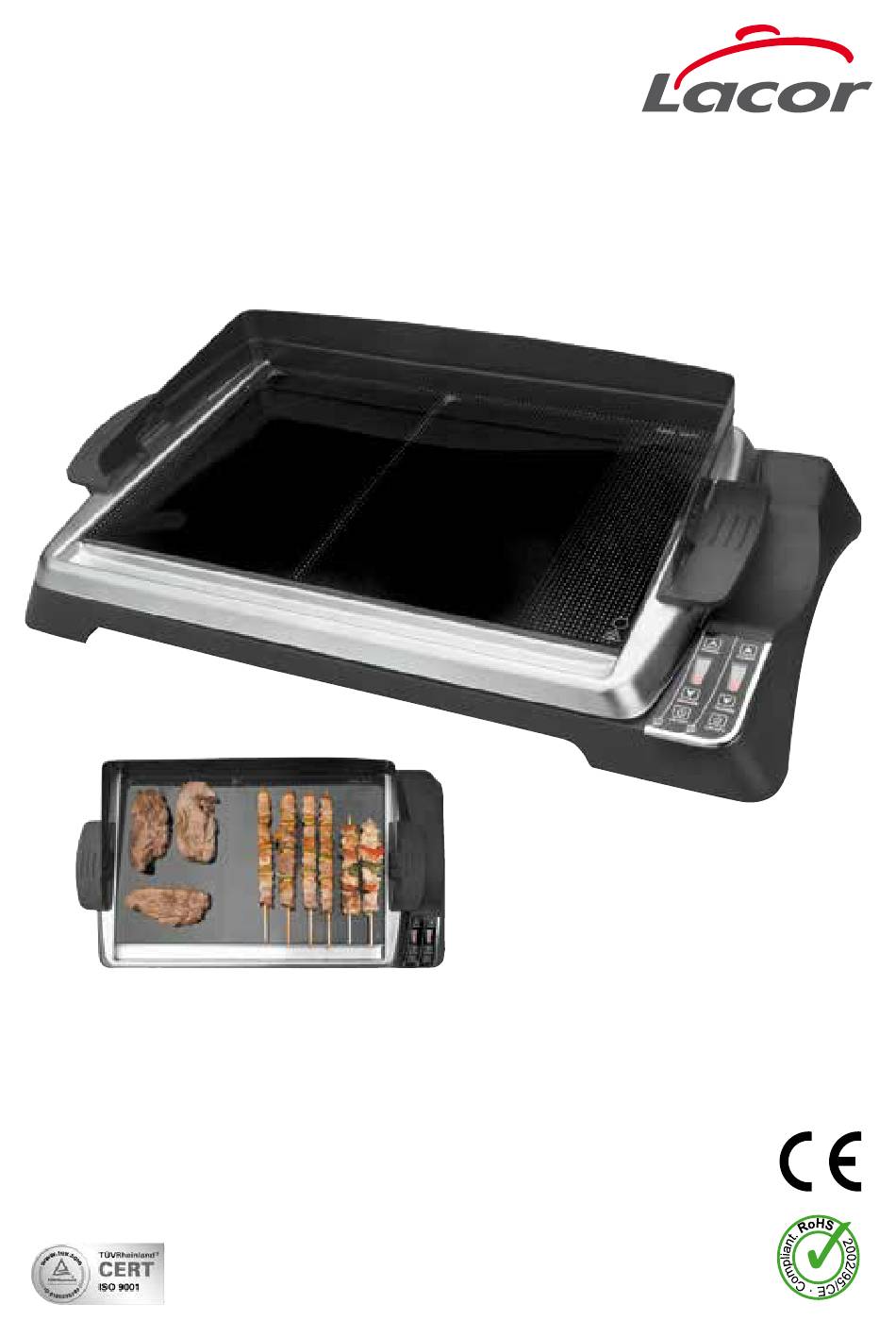

Placa grill eléctrica TEPPANYAKI Grill electrique Elektro-grill Electric grill Piastra grill elettrica Grehar eléctrico Elektrische grillplaat INSTRUCCIONES DE USO Y MANTENIMIENTO CONSEILS D'UTILISATION ET D'ENTRETIEN GEBRAUCHS UND INSTANDHALTUNGSANLEITUNG INSTRUCTIONS FOR USE AND MAINTENANCE ISTRUZIONI PER L'USO E LA MANUTENZIONE INSTRUÇÕES DE USO E MANUTENÇÃO...
ÍNDICE PÁG INDICE PÁG Importantes Medidas de Seguridad Importanti misure di sicurezza Principales Especificaciones Técnicas Principali Especificazioni Tecniche Información Relevante Informazioni Rilevanti Instalación Instalalazione Aviso Avviso Descripción de las partes Descrizione delle parti Funcionamiento Funzionamento Mantenimiento y Limpieza Mantutenzione y Pulizia INDEX ÍNDICE Consignes de Securité...
GUARDE ESTAS INSTRUCCIONES Este manual contiene información de seguridad relevante para el mantenimiento, uso y manejo de este producto. Cualquier omisión al seguir estas instrucciones puede resultar en un daño serio. Si no entiende el contenido de este manual, comuníqueselo a su supervisor. No ponga en funcionamiento este equipo hasta que no haya leído y entendido el contenido de este manual.
PRINCIPALES ESPECIFICACIONES TÉCNICAS MODELO : 69133 VOLTAJE: 220-240V/50Hz POTENCIA : 1.280 W. TEMPERATURA MÁX. : 300ºC DIMENSIONES PARRILLA: 43x27 cms MEDIDAS: 60x34x8 cms PESO: 5,50 Kgr. INFORMACIÓN RELEVANTE Información sobre la garantía Este manual aporta las instrucciones de instalación, funcionamiento y seguridad del grill. Le recomendamos que lea todas las instrucciones de seguridad, funcionamiento e instalación antes de su instalación y puesta en marcha.
PRECAUCIONES 1.- Coloque la unidad en una base a la altura adecuada, en una zona conveniente para su uso. Se debe evaluar en su ubicación que la unidad o su contenido no se caigan accidentalmente y sea lo suficientemente fuerte como para soportar el peso de la unidad. 2.- No coloque nada encima del grill;...
DESCRIPCIÓN DE LAS PARTES 1.- Fondo protector 2.- Placa grill superior 3.- Interruptor encendido 4.- Zona cocción I 5.- Zona cocción II 6.- Botón Increase/Decrease 7.- Botón encendido ON/OFF 8.- Placa grill inferior II - 640W 640W 300ºC 270ºC 240ºC 210ºC 180ºC 60ºC...
11.- Esta placa ha sido diseñada para poder emplear cuchillos y tenedores metálicos durante la cocción, motivo por el cual podrá cortar las carnes o pescados directamente sobre la placa sin riesgo a que esta se ralle. NO GOLPEE LA SUPERFICIE DE CRISTAL. 12.- Una vez finalizado, apague la placa mendiante los botones ON/OFF y el interruptor posterior.
CONSERVEZ CES INSTRUCTIONS Ce manuel contient une importante information de sécurité concernant la maintenance, l'utilisation et la manipulation de ce produit. Ne pas suivre les instructions contenues dans ce manuel peut provoquer de sérieuses blessures. Si vous ne comprenez pas les contenus de ce manuel, veuillez le soumettre à...
SPÉCIFICATIONS TECHNIQUES PRINCIPALES MODELE: 69133 TENSION: 220-240V/50Hz PUISSANGE : 1.280 W. TEMPÉRATURE MAX.: 300ºC DIMENSIONS GRILL: 43x27 cms MESURES: 60x34x8 cms POIDS: 5,50 Kgr. INFORMATION UTILE Information de garantie Ce manuel informe sur l'installation, la sécurité et les instructions du la grill. Nous vous recommandons de lire toutes les instructions concernant la sécurité, l'installation et la manipulation avant de vous en servir.
PRÉCAUTIONS D'EMPLOI 1.- Situez l'appareil à la hauteur du plan de travail, dans une zone qui convient à cet effet. L'emplacement devrait être plat pour éviter que l'appareil ou son contenu ne tombent accidentellement, et assez fort pour supporter le poids de l'appareil. 2.- Ne posez rien sur le grill, car cela pourrait endommager celui-ci ou exposer le personnel à...
DESCRIPTION DES PARTIES 1.- Plaque grill inférieure 2.- Plaque grill supérieure 3.- Fond protecteur 4.- Interrupteur mise en marche 5.- Zone cuisson I 6.- Zone cuisson II 7.- Bouton mise en marche ON/OFF 8.- Bouton Increase/Decrease II - 640W 640W 300ºC 270ºC 240ºC...
10.- Lorsque la plaque est chaude, vous pouvez placer les aliments pour leur cuisson. 11.- Cette plaque a été conçue pour pouvoir employer des couteaux et des fourchettes métalliques pendant la cuisson, c'est la raison pour laquelle vous pourrez couper des viandes ou des poissons directement sur la plaque, sans risquer de la rayer.
BEDIENUNGSANLEITUNG GUT AUFBEWAHREN Diese Anleitung enthält wichtige Sicherheitshinweise zu Wartung, Benutzung und Bedienung des Gerätes. Das Nicht-Beachten der Anweisungen kann zu schweren Verletzungen führen. Falls Sie den Inhalt dieser Anleitung nicht verstehen, wenden Sie sich bitte an Ihren Vorgesetzten. Vor Inbetriebnahme des Gerätes muss die Bedienungsanleitung unbedingt gelesen und verstanden werden.
WICHGSTE TECHNISCHE DATEN AUSFÜHRUNG: 69133 SPANNUNG: 220-240V/50Hz LEISTUNG: 1.280 W. HÖCHSTTEMPERATUR: 300ºC GRILL ABMESSUNGEN: 43x27 cms 60x34x8 cms ß GEWICH: 5,50 Kgr. WICHTIGE INFORMATION Garantie In dieser Bedienungsanleitung werden Hinweise zu Aufbau, Sicherheit und Bedienung des Elektrischen Grill gegeben. Wir empfehlen Ihnen, alle Aufbau-, Bedienungs- und Sicherheitshinweise in der Bedienungsanleitung vor dem Aufbau oder der Benutzung sorgfältig durchzulesen.
WARNHINWEISE 1.- Stellen Sie das Gerät in einer benutzerfreundlichen Höhe auf. Der Platz, an dem das Gerät aufgestellt wird, sollte eben sein, so dass das Gerät oder sein Inhalt nicht aus Versehen herunterfallen kann, und stark genug, um das Gewicht des Gerätes zu tragen. 2.- Legen Sie nichts auf den Elektrischen Grill, um Beschädigung des Aufschnittmaschine oder Verletzungen des Bedienpersonals zu vermeiden.
BESCHREIBUNG DER MASCHINENTEILE 1.- Grillplatte unten 2.- Grillplatte oben 3.- Schutzfläche hinten 4.- Schalter Ein 5.- Garbereich I 6.- Garbereich II 7.- Taster ON/ OFF 8.- Taster Increase/ Decrease II - 640W 640W 300ºC 270ºC 240ºC 210ºC 180ºC 60ºC Power on indication FUNKTIONSWEISE 1.- Die Maschine muss auf einer hinreichend stabilen Arbeitsfläche aufgestellt werden, die in der Lage ist, die Maschine und das Schneidgut zu tragen.
10.- Sobald die Platte heiß ist, können die zu garenden Lebensmittel darauf platziert werden. 11.- Die Platte ist so beschaffen, dass während des Garvorgangs Metallmesser und - gabeln verwendet werden können. Es ist also möglich, Fleisch und Fisch direkt auf der Platte zu schneiden, ohne darauf Kratzer zu hinterlassen.
SAVE THESE INSTRUCTIONS This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you are unable to understand the contents of this manual, please bring it to the attention of your supervisor.
MAIN TECHNICAL SPECIFICATIONS MODEL: 69133 VOLTAGE: 220-240V/50Hz POWER: 1.280 W. MAX. TEMPERATURE: 300ºC GRILL DIMENSIONS: 43x27 cms MEASUREMENT: 60x34x8 cms WEIGHT: 5,50 Kgr. WORTHY INFORMATION Warranty Information This manual provides the installation, safety and operating instructions for the grill. We recommend all installation, operating and safety instructions appearing in this manual to be read before installation or operation.
CAUTIONS 1.- Locate the unit at the proper counter height, in an area that is convenient for use. The location should be level to prevent the unit or its contents from accidentally falling, and strong enough to support the weight of the unit. 2.- Do not place anything on top of the grill;...
PARTS LIST 1. Lower grill plate 2. Upper grill plate 3. Protective base 4. Power switch 5. Cooking area I 6. Cooking area II 7. ON/OFF Button 8. Increase/Decrease Button II - 640W 640W 300ºC 270ºC 240ºC 210ºC 180ºC 60ºC Power on indication OPERATION 1.- The machine should be installed on a work surface that has sufficient stability and strength...
11.- This grill plate is designed to allow the use of metal knives and forks while cooking. For this reason, you can cut meat or fish directly on the grill plate without worrying about it scratching. DO NOT BANG THE GLASS SURFACE. 12.- When you have finished cooking, turn the plate off using the ON/OFF button and the power switch on the back.
CONSERVARE QUESTE ISTRUZIONI Il presente manuale contiene importanti informazioni di sicurezza per la manutenzione, l'uso e la manipolazione di questo prodotto. Qualsiasi inosservanza di queste istruzioni può dare origine a gravi danni. In caso di mancata comprensione del contenuto del presente manuale, comunicarlo al supervisore.
PRINCIPALI SPECIFICAZIONI TECNICHE MODELLO: 69133 TENSIONE: 220-240V/50Hz POTENZA: 1.280 W. TEMPERATURA MASSIMA: 300ºC GRIGLIA DI DIMENSIONI: 43x27 cms MISURE: 60x34x8 cms PESO: 5,50 Kgr. INFORMAZIONI RILEVANTI Informazioni relative alla garanzia Il presente manuale fornisce le istruzioni di installazione, funzionamento e sicurezza dell'a grill. Raccomandiamo di leggere tutte le istruzioni di sicurezza, funzionamento e installazione prima dell'installazione e della messa in funzione.
PRECAUZIONI 1.- Collocare l'unità in una base all'altezza adeguata, in una zona adatta per il relativo uso. E' necessario valutare nell'ubicazione che l'unità o il suo contenuto non cadano accidentalmente e che la forza dell'unità stessa sia tale da sopportare il peso dell'unità. 2.- Non collocare nulla sopra la grill;...
DESCRIZIONE DELLE PARTI 1.- Piastra grill inferiore 2.- Piastra grill superiore 3.- Fondo di protezione 4.- Interruttore di accensione 5.- Zona di cottura I 6.- Zona di cottura II 7.- Pulsante di accensione ON/OFF 8.- Pulsante di Aumento/Diminuzione II - 640W 640W 300ºC...
10.- Una volta che la piastra è calda si possono collocare sopra di essa gli alimenti per la cottura. 11.- Questa piastra è stata progettata per poter utilizzare coltelli e forchette di metallo durante la cottura, motivo per il quale vi sarà possibile tagliare la carne o il pesce direttamente sopra la piastra senza il rischio di graffiarla.
GUARDE ESTAS INSTRUÇÕES Este manual contém informação sobre segurança relevante para a manutenção, utilização e manipulação deste aparelho. A não observação destas instruções poderia resultar em lesões pessoais graves. Se não compreender o conteúdo deste manual, comunique-o ao seu supervisor. Não ponha este equipamento a funcionar até...
PRINCIPAIS CARACTERÍSTICAS TÉCNICAS MODELO: 69133 VOLTAGEM: 220-240V/50Hz POTÊNCIA: 1.280 W. TEMPERATURA MÁXIMA: 300ºC TEMPERATURA MÁXIMA: 43x27 cms MEDIDAS: 60x34x8 cms PESO: 5,50 Kgr. INFORMAÇAO RELEVANTE Informação sobre a garantia Este manual contém as instruções de instalação, funcionamento e segurança da grill. Recomendamos que leia atentamente todas as instruções de segurança, funcionamento e instalação antes de proceder à...
PRECAUÇÕES 1.- Coloque a grill numa base com a altura adequada, numa zona conveniente para a sua utilização. Assegure-se de que não existe o risco de queda acidental da unidade ou do seu conteúdo, e de que a superfície de apoio é suficientemente forte para suportar o peso da unidade.
DESCRIÇÃO DOS COMPONENTES 1.- Placa grill inferior 2.- Placa grill superior 3.- Fundo protetor 4.- Interruptor ligar/desligar 5.- Zona de cocção I 6.- Zona de cocção II 7.- Botão ON/OFF 8.- Botón Increase/Decrease (Aumentar/Diminuir) II - 640W 640W 300ºC 270ºC 240ºC 210ºC 180ºC...
9.- Por motivos de segurança, ao retirar a placa grill superior o aquecimento interromper-se-á. Depois de colocar a placa na sua posição, prima novamente o botão ON/OFF para a sua posta em funcionamento. 10.- Quando a placa estiver quente, coloque os alimentos a cozinhar em cima da placa. 11.- Esta placa foi desenhada para poder utilizar facas e garfos metálicos durante a cocção, pelo que poderá...
BEWAAR DEZE GEBRUIKSAANWIJZING Deze handleiding bevat belangrijke veiligheidsinstructies voor het onderhoud, het gebruik en de bediening van het apparaat. Het niet naleven van deze aanwijzingen kan ernstige schade tot gevolg hebben. Indien men de inhoud van deze gebruiksaanwijzing niet verstaat, gelieve dit te melden aan de opzichter.
VOORNAAMSTE TECHINISCHE GEGEVENS MODEL: 69133 SPANNING: 220-240V/50Hz VERMOGEN: 1.280 W. MAXIMUMTEMPERATUUR: 300ºC : 43x27 cms AFMETINGEN VAN HET ROOSTER AFMETINGEN: 60x34x8 cms GEWICHT: 5,50 Kgr. BELANGRIJKE INFORMATIE Informatie over de garantie Deze handleiding bevat de aanwijzingen voor de installatie, de werking en de veiligheid van de grill.
VOORZORGSMAATREGELEN 1.- Plaats de eenheid op een aangepaste hoogte op een basis in een zone die is geschikt om te werken. Men moet tijdens de plaatsing evalueren of het apparaat of de inhoud per ongeluk zouden kunnen vallen en of de basis voldoende sterk is om het gewicht van het toestel te kunnen dragen.
BESCHRIJVING VAN DE ONDERDELEN 1.- Onderste grillplaat 2.- Bovenste grillplaat 3.- Onderste afscherming 4.- Aan/uit schakelaar 5.- Bakzone I 6.- Bakzone II 7.- ON/OFF toets 8.- Toets Verhogen / Verlagen II - 640W 640W 300ºC 270ºC 240ºC 210ºC 180ºC 60ºC Power on indication WERKING 1.- Plaats de machine op een werkoppervlak dat voldoende stabiliteit en weerstand biedt om...
10.- Als de plaat warm is kan men er de voedingswaren opleggen om die te bakken. 11.- Deze plaat is ontworpen om metalen messen en vorken erop te kunnen gebruiken tijdens het bakken, zodanig dat men vlees en vis rechtstreeks op de plaat kan doorsnijden zonder risico op krassen.
Seite 38
L'intervention technique par le client ou par du personnel non autorisé rendra immédiatement non valise la garantie. LACOR MENAJE PROFESIONAL, S.L. ne se rend pas responsable des pannes produites par une installA tion ou une utilisation incorrecte de l'appareil.
Seite 39
Consult with your sales person. Technical intervention by the client or by unauthorized personnel will render the guarantee immediately invalidated. LACOR MENAJE PROFESIONAL, S.L. does not hold itself responsible for those damages caused by incorrect installation or use of the device. TERMINI DI GARANZIA La Garanzia ha una durata di 24 mesi, copre qualsiasi difetto di fabbricazione e decorre dalla data di acquisto dell'elettrodomestico, avallata dalla corrispondente fattura di acquisto.
Seite 40
LACOR MENAJE PROFESIONAL S.L Bº San Juan, s/n - Apdo. 18 Telf.: 943 769030 - Fax: 943 765387 Telf. Export: +34 943 769174 - Fax Export: +34 943 769222 comercial@lacor.es - www.lacor.es 20570 BERGARA (Gipuzkoa) - SPAIN GRUPO MARCOS LARRAÑAGA Y CIA...
