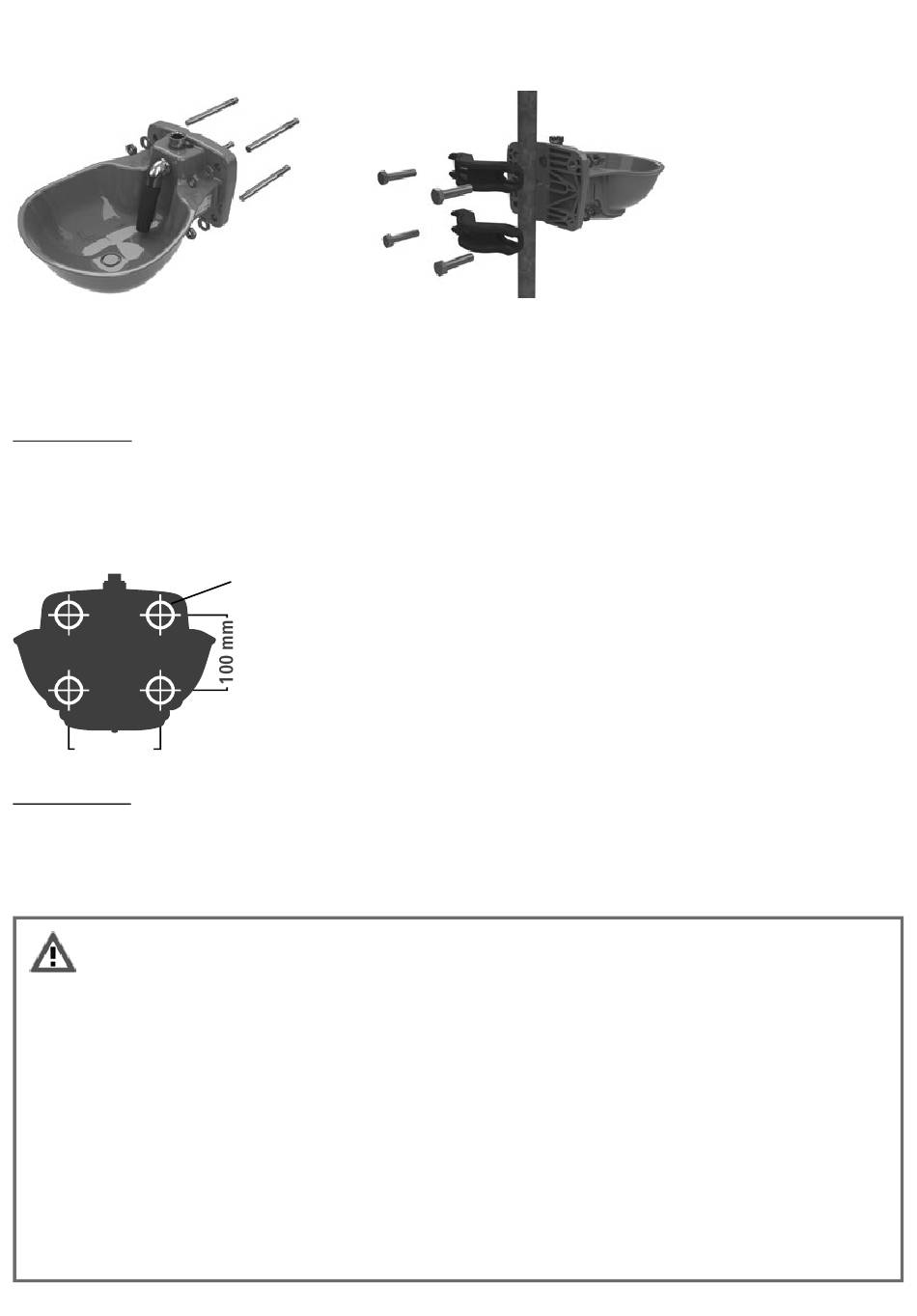

Securing the drinking bowl in place
The drinking bowl can be mounted on a wall or on a pipe.
Wall installation
The installation height should be determined based on the height of the animals using the bowl and the application.
Wall installation
The fastening materials should be chosen according to the physical characteristics of the wall.
The drilling pattern for the drinking bowl corresponds to DIN 11840-B.
It is recommended that a safety frame be mounted around the drinking bowl.
Art. No. 221971 - safety frame size 2 (not included in the scope of delivery), see accessories.
136 mm
Pipe installation
The drinking bowl can be fitted to pipes with a diameter of at least 1" (25.4 mm) and max. 3" (76.2 mm) using the pipe
fastening clip Art. No. 222019 (not included in the scope of delivery).
Connecting the water supply
CAUTION!
Risk of physical injury to people and animals and material damage
• Ensure that the device is only used be people who have the professional skills required to work with water supply
lines.
• Comply with the regulations set out in DIN 1988 and DIN EN 1717 (protection against pollution of potable water
installations) when installing the water supply.
• The pipe valve is suitable for water pressures of between 1.1 and 5 bar. The ideal feed pressure for operating the
drinking bowl is around 3 bar. Avoid water pressures in excess of 5 bar. Where the water pressure is higher than
5 bar, it is recommended that a pressure-reducing valve be installed. In circulation systems, an overpressure safety
valve must be installed.
• For unclean water, a suitable filter unit must be fitted. (sediment filter 5-20 µ / iron filter / active carbon filter)
• When connecting the drinking bowl, ensure cleanliness throughout (no residue in the pipe such as metal filings,
sand, deposits, etc.).
