EX-6114
3. Layout, Connections & LED's
3.2 Connections & LED's
LED's:
LED Name
Power/Act LED
(RJ45)
PoE LED
Orange
(RJ45)
Status LED
TXD LED
(right)
RXD LED
(left)

4. Hardware Installation

Please observe the following installation instructions. Because there are big differences between
PC's, we can only give you a general guide for connecting the EX-6114. If you have any questions,
please refer to the operating instructions of your computer system.
1. Install the EX-6114 on a mounting rail by using the optional DIN rail kit or on a wall.
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
Color
Steady on: Power is On
Green Blinking: Transferring data on the Network
Off: Power is Off
Steady on: Extracting the power from LAN cable (PoE model only)
Off: LAN cable PoE Power is not extracted
Blinking: The unit has booted
Green (25 ~ 30 seconds required from power up)
Off: The unit is not booted yet
Blinking: The Serial Port is sending out data
Green
Off: The Serial Port is not sending out any data
Blinking: The Serial Port is receiving data
Green
Off: The Serial Port is not receiving any data

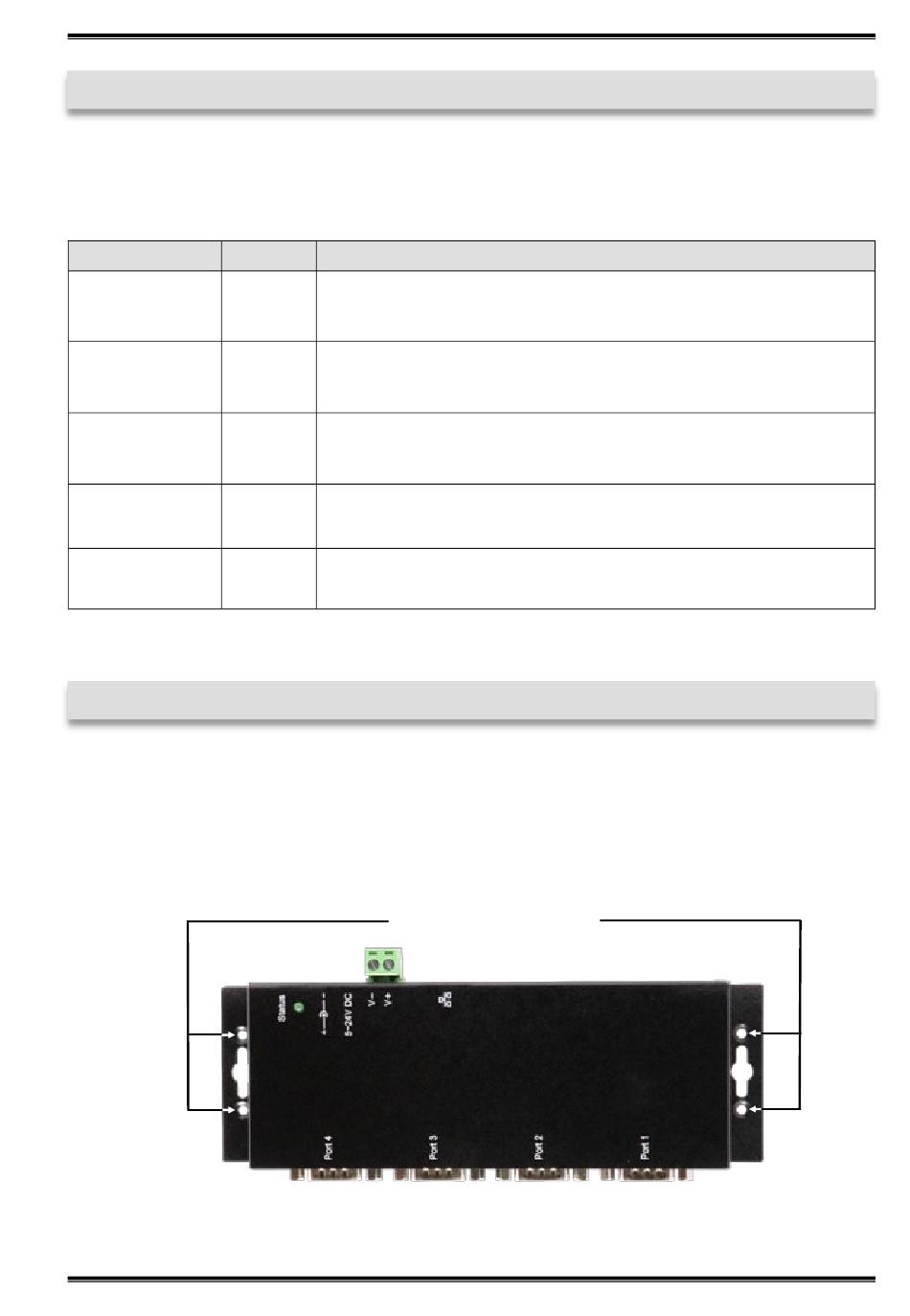

Holes for Wall Installation
LED Function
