2-Wege Kamera PIR Detector

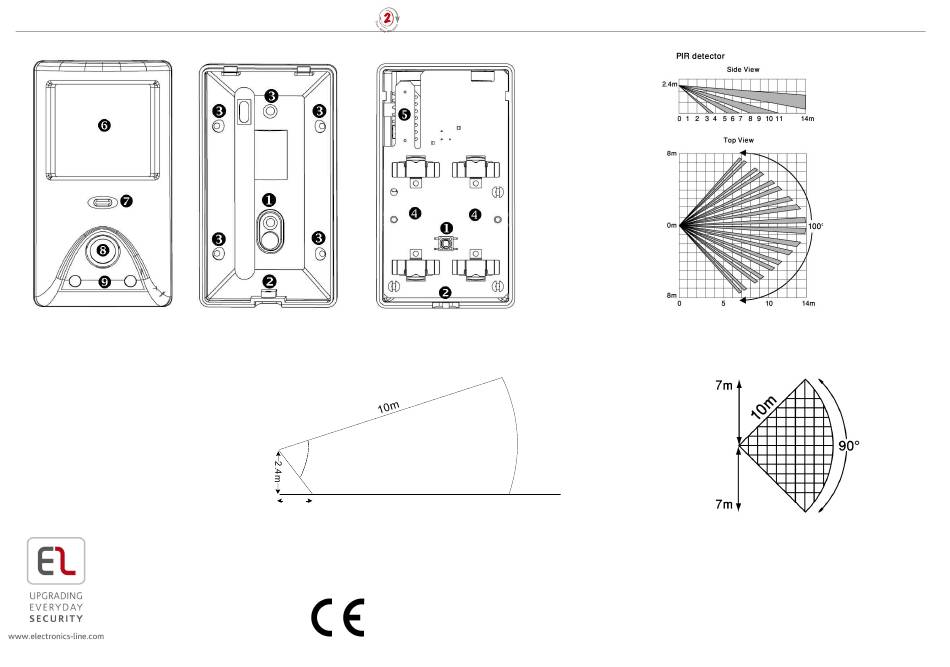

Figure 1: Outer Casing, Frontal Views
Legend:
1. Sabotagekontakt
2. Verschraubung
3. Montagelöscher
4. Batteriehalter
5. Antenne
6. PIR Detector
7. LED Anzeige
8. Kameralinse
9. IR LEDs
International Headquarters:
Electronics Line 3000 Ltd.
14 Hachoma St., 75655
Rishon Le Zion, Israel
Tel: (+972-3) 963-7777
Fax: (+972-3) 961-6584
Figure 2: EL4755
PCB Board
Side View
70°
1.85m
All data is subject to change without prior notice. In no event shall Electronics Line be liable for an amount in excess of EL3K.'s original selling price of this
product, for any loss or damage whether direct, indirect, incidental, consequential or otherwise arising out of any failure of the product.
Hereby, Electronics Line declares that this detector is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
RTTE Compliance Statement (European version):
Hereby, Electronics Line 3000 Ltd. declares that this equipment is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC. For
the CE Declaration of Conformity please refer to our website:
www.electronics-line.com
Figure 3: Erfassungsbereich
Figure 4: Kamera erfassungsbereich
.
EL-4755
Top View
07/11
5IN1576
