4. Applications
Bi-amping splits a signal into upper and lower frequency bands, and then assigns each frequency band to separate speaker cabinets. A subwoofer typically takes the
low frequency range. By splitting the signal this way, the speakers work more efficiently, and you can achieve a cleaner overall sound.

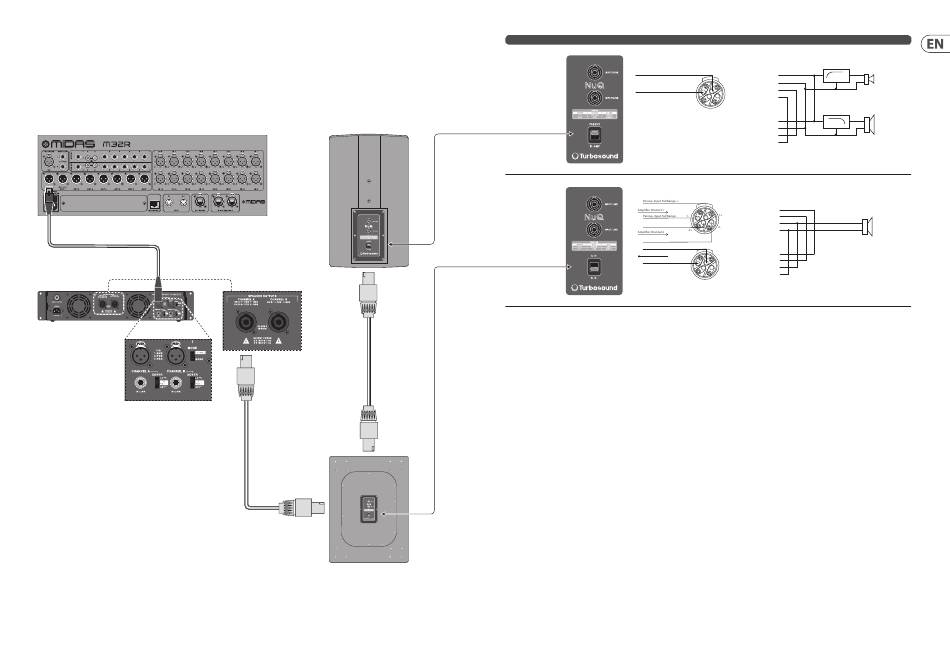

One side sub and linked passive top, Turbosound NuQ102 and NuQ118B together with Lab.gruppen PD3000
M32R
M32R
PD3000
Mode switch: Mono
Channel A Xover switch: Full Range
Channel B Xover switch: LF
NuQ102
2-pole cable
4-pole cable
NuQ118B
Mode
Back Panel
Connector
Passive
speakON NL4
PASSIVE, Input Full Range +
PASSIVE, Input Full Range -
2+/2-
speakON NL4
Input Sub +
Input Sub -
Passive Output +
2-Wire Link to Passive Full Range
Passive Output -
1-
Quick Start Guide
Internal Schematic
>
1+
HPF
NL4
>
1 -
Input/
>
1-
1+
2+
Link
>
2 -
2-
2+
>
1+
LPF
NL4
>
1 -
Input/
>
2+
Link
2 -
>
>
1+
NL4
1 -
>
Input/
2+
>
Link
2 -
>
>
1+
NL4
1 -
>
1+
Input/
2+
>
Link
2-
2 -
>
2+
49
HF
LF
LF
