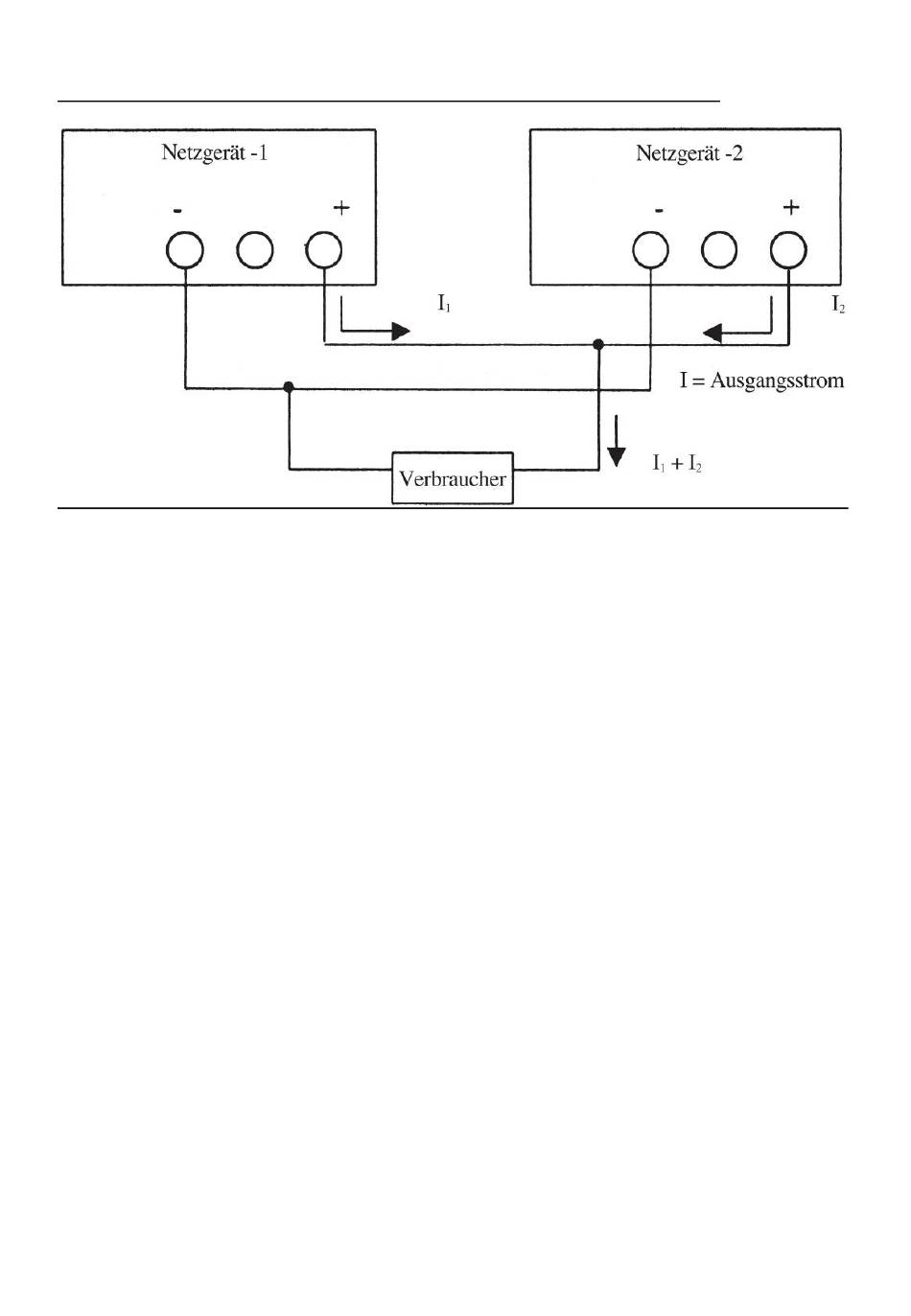

Addition of the Output Currents by Parallel Connection of multiple Power Supplies:
Keep the distance between the connected devices as short as possible.
Now connect terminal + with the terminal + as well as terminal – with the terminal – of the next device.
It is necessary to adjust the same value of the output voltage on every one of the connected devices.
Otherwise it can result in overheating.
The output current can be adjusted on each device individually. The values of output currents of all
connected devices are added.
The desired load must be connected to the terminal – of the first and to the terminal + of the last power
supply.
