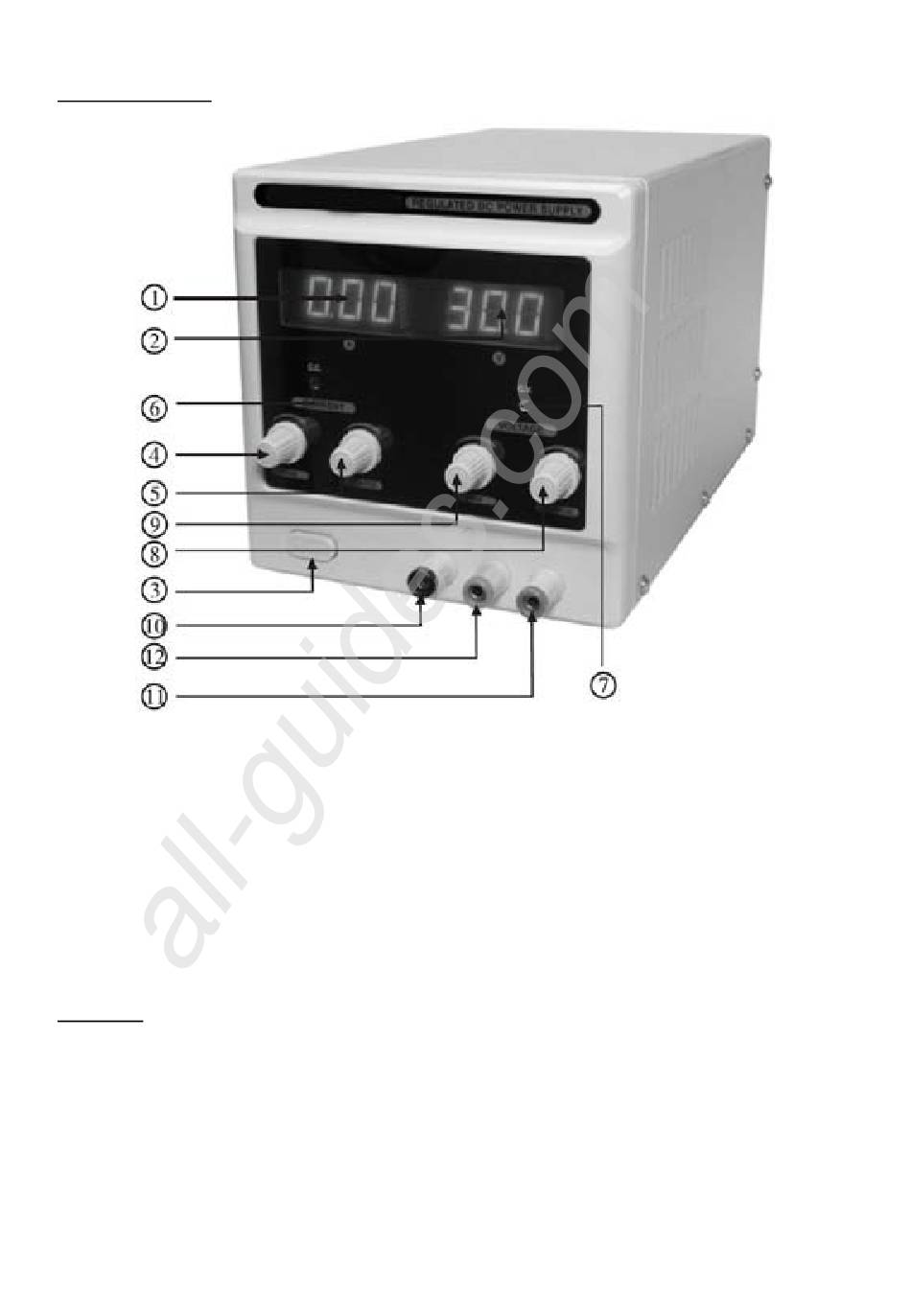

Function Elements:
1. Digital display of the effective output current.
2. Digital display of the effective output voltage.
3. AN/AUS: On-/Off-switch.
4. STROM FEIN: Fine adjustment of the output current.
5. STROM GROB: Coarse adjustment of the output current.
6. STROM BEGRENZUNG: Red LED shows constant current.
7. SPANNUNG BEGRENZUNG: Green LED shows constant voltage.
8. SPANNUNG GROB: Coarse adjustment of the output voltage.
9. SPANNUNG FEIN: Fine adjustment of the output voltage.
10. -: Terminal. Negative outlet. Safety nut.
11. +: Terminal. Positive outlet. Safety nut.
12. MASSE: Terminal. Grounding. Safety nut.
Operation:
•
Connect the device with an electric outlet.
•
Switch on the device with AN/AUS [3].
•
Adjust the desired output voltage and the desired output current with the help of SPANNUNG [8&9] and
STROM [4&5]. Each effective value is shown on the displays [1 & 2].
•
Connect the desired consumer load to the terminals + and –.
•
To decrease the ripple voltage connect either + or – to GND additionally.
