EDIFIER W800BT Plus Gebrauchsanleitung

W800BT Plus/英文/V1.0
尺寸： 55*75mm， 材质： 80克书纸， 对折打钉， 封面底面印80%灰+其它页印黑色
底面
Edif ier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edif ier.com
© 2020 Edif ier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade,
information contained herein may be subject to change from time
to time without prior notice.
Products of EDIFIER will be customized for different applications.
Pictures and illustrations shown on this manual may be slightly
different from actual product. If any difference is found, the actual
product prevails.
Model: EDF200040
V1.0
@Edif ierglobal @Edif ier_Global @Edif ier_Global
封面

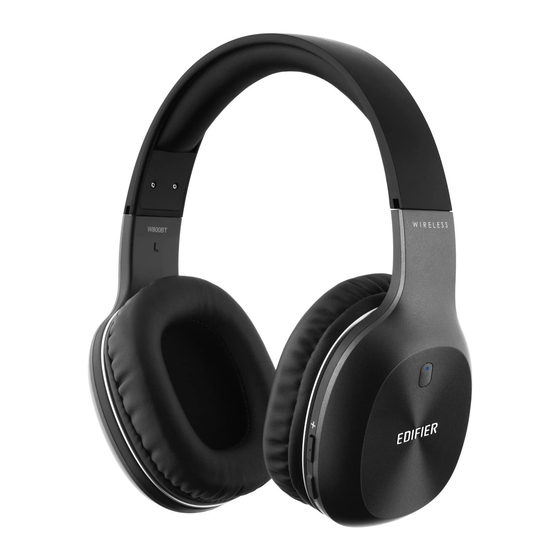

W800BT Plus
Bluetooth Stereo Headphones
Please visit EDIFIER website for the full version user manual: www.edi er.com
第一页
EN · Functional operation instructions
Button descriptions
●
Multifunctional button
Power on: press and hold for 3 seconds
Power off: press and hold for 3 seconds
Pause/play: press
Voice assistant: double press
Accept a call: press
End a call: press
Decline a call: press and hold
Volume up: press
Next track: press and hold
Volume down: press
Previous track: press and hold
Bluetooth pairing
●
• When the headphone is powered off, press and hold the multifunction button for
around 5 seconds, the red and blue lights flash rapidly.
• Search for and connect to "EDIFIER W800BT Plus", after pairing is successful, the blue
light will flash slowly.
Note: When the headphone is powered on and not connected, press and hold the
multifunction button for around 2 seconds to enter Bluetooth pairing.
● Restore to factory settings
When powered on and not connected, press and hold the "+" and "-" buttons
simultaneously for around 5 seconds to clear the pairing records and restore to
factory settings, the blue light flashes rapidly.
Rated input: 5V 1A
1
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by EDIFIER
is under license. Other trademarks and trade names are those of
their respective owners.
Declaration for EU
Frequency Band: 2.402GHz ~ 2.480GHz
RF Power Output: ≤20 dBm (EIRP)
There is no restriction of use.
Rated input: 5V 1A
2 3
