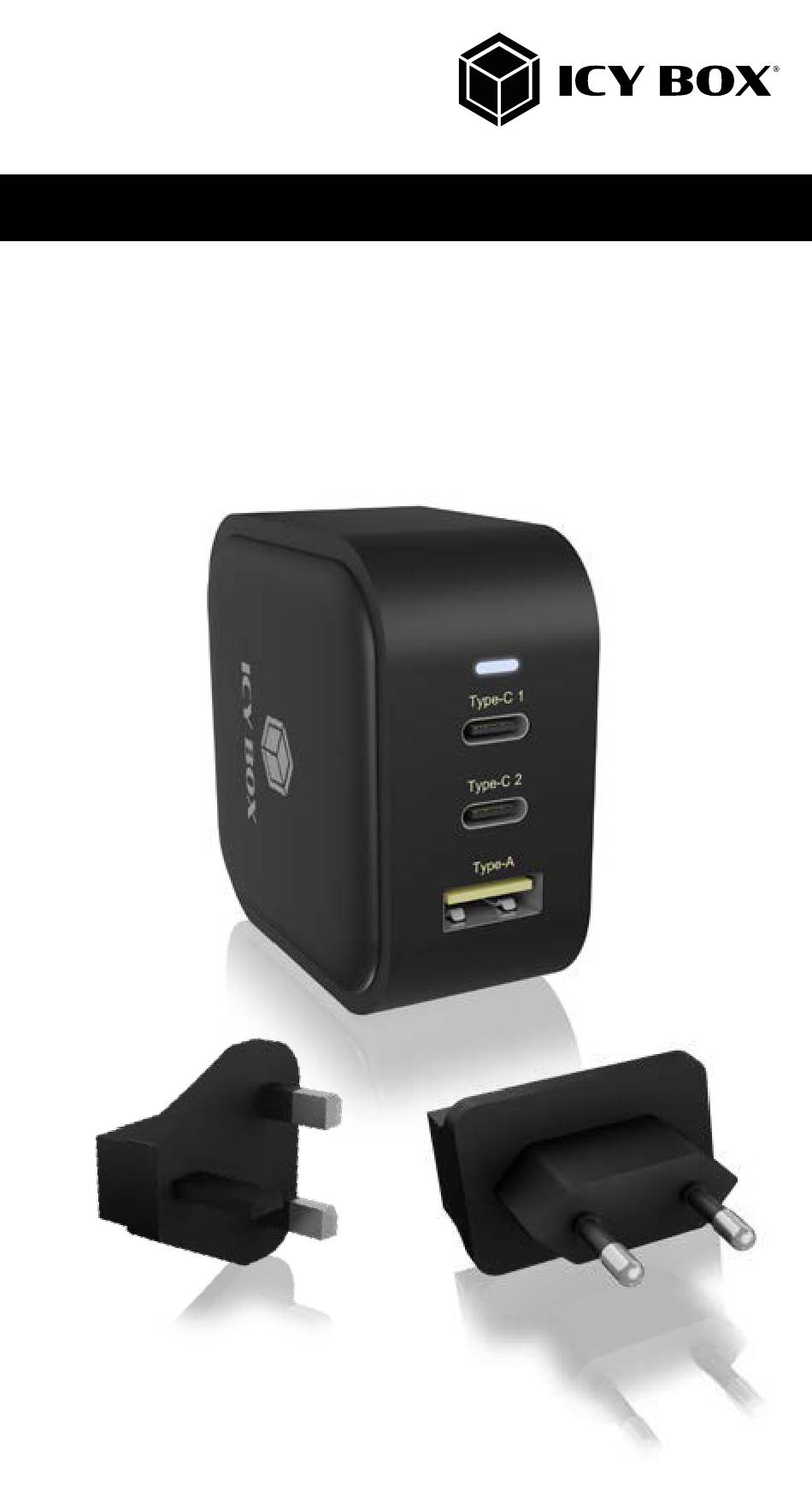

Quick installation guide IB-PS103-PD 3-Port Wall Charger with USB Power Delivery Schnellinstallationsanleitung IB-PS103-PD 3 Port Steckerladegerät mit USB Power Delivery...
Safety information Please read carefully the following information to prevent injuries, damage to material and device as well as data loss: Warning levels Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.
Seite 4
Safety information 4. Hazards caused by very small parts and packaging Risk of suffocation WARNING Risk of death by suffocation or swallowing • Keep small parts and accessories away from children • Store/dispose of plastic bags and packaging in an area that is inaccessible to children •...
Sicherheitshinweise Zur Vermeidung körperlicher Schäden, sowie von Sach-, Geräteschäden und Datenverlust beachten Sie bitte folgende Hinweise: Warnstufen Signalwort und Sicherheitszeichen kennzeichnen die Warnstufe und geben einen sofortigen Hinweis auf aWahrscheinlichkeit, Art und Schwere der Folgen, wenn die Maßnahmen zur Vermeidung der Gefahr nicht befolgt werden. warnt vor einer unmittelbar gefährlichen Situation, die zum GEFAHR Tod oder zu schweren Verletzungen führen wird.
Seite 6
Sicherheitshinweise • keine Gegenstände auf dem Gerät/Netzteil abstellen 4. Gefahren durch Kleinstteile und Verpackung Erstickungsgefahr WARNUNG Lebensgefahr durch Ersticken oder Verschlucken • Kleinteile, Zubehör für Kinder unzugänglich verwahren • Plastiktüten und Verpackung für Kinder unzugänglich verwahren/entsorgen • Kleinteile und Verpackungen nicht in Kinderhände geben 5.
Seite 7
Additional USB charging cables are not included. Overview The IB-PS103-PD is a small wall power adapter with three interfaces for mobile devices. With up to 65 W Power Delivery, it can charge small notebooks, smartphones and tablets. Two USB Type-C and one USB Type-A port are available.
30 W+ 18 W + 18 W (Max. 66W) + Type-A Note: In the event of a short circuit, the output power is less than 5 W and the IB-PS103-PD is not damaged. After the short circuit is removed, operation is automatically resumed.
Achten Sie darauf, dass Spannung und Polarität Ihrer Geräte miteinander kompatibel sind! Zusätzliche USB-Ladekabel sind nicht enthalten. Überblick Das IB-PS103-PD ist ein kleines Steckernetzteil mit drei Schnittstellen für mobile Geräte. Mit bis zu 65 W Power Delivery kann es kleine Notebooks, Smartphones und Tablets laden. Es stehen zwei USB Type-C sowie ein USB Type-A Anschluss zur Verfügung.
Seite 10
® 30 W+ 18 W + 18 W (Max. 66W) + Type-A Hinweis: Bei einem Kurzschluss beträgt die Ausgangsleistung weniger als 5 W und das IB-PS103-PD wird nicht beschädigt. Nachdem der Kurzschluss behoben ist, wird der Betrieb automatisch wieder aufgenommen.
